Component Locations

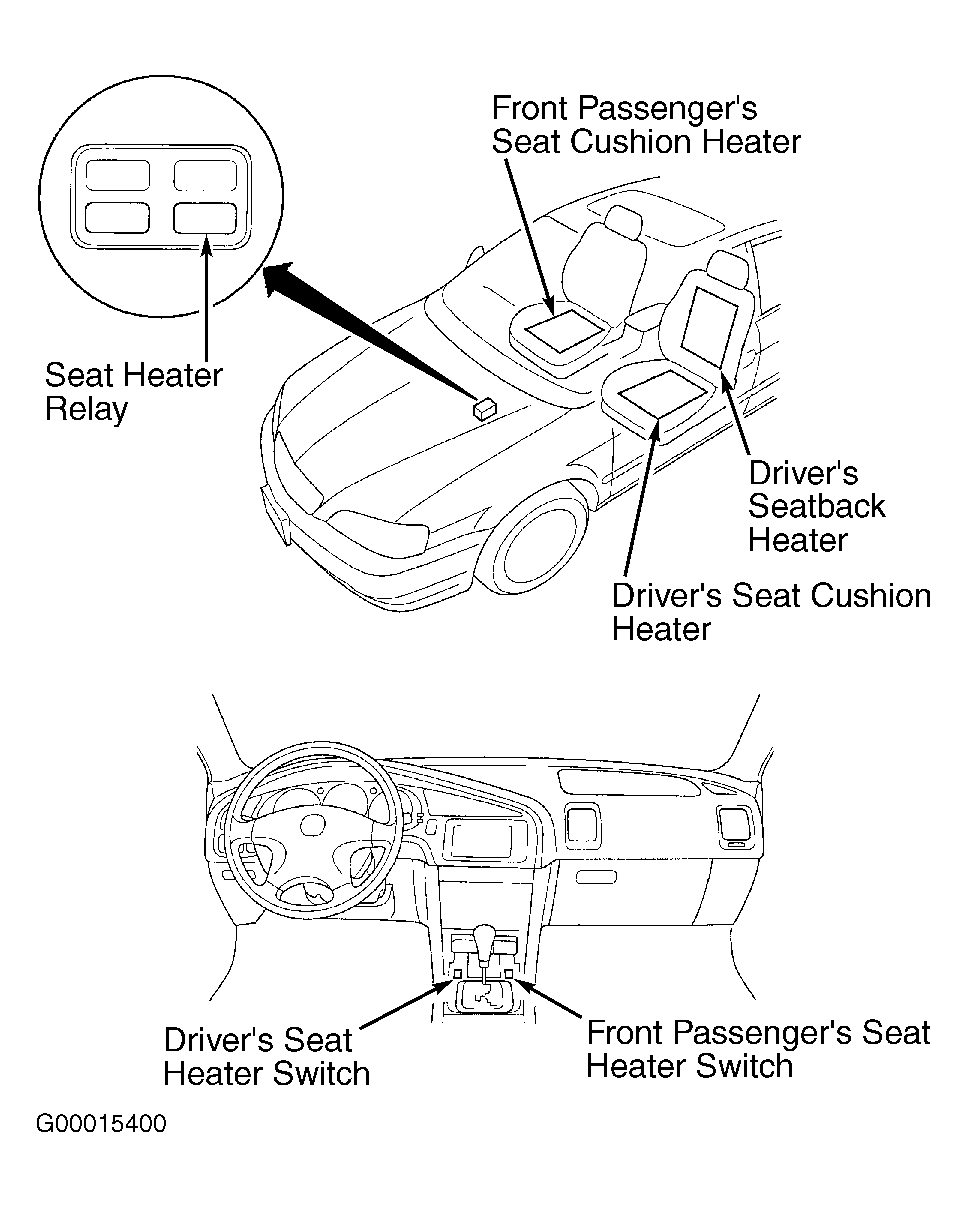

Fig 1: Heated Seat System Component Locations (3.2TL)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Heated Seat System Component Locations (3.5RL)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
