Connector C (26P)

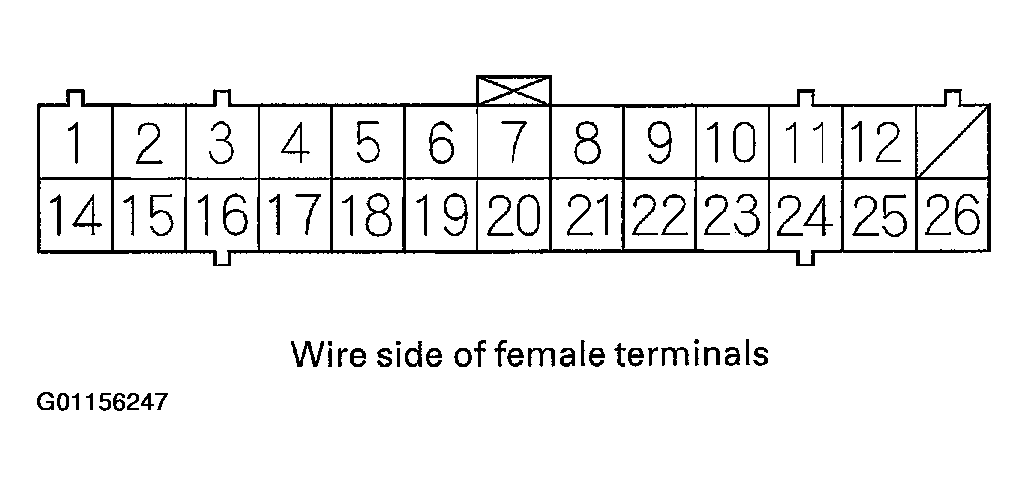

Fig 1: VSA Control Unit Connector C (26P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: VSA Control Unit Inputs & Outputs For Connector C Chart (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: VSA Control Unit Inputs & Outputs For Connector C Chart (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
