Connector Identification

NOTE: PCM is located behind center console, to left of glove box, under footwell carpet.

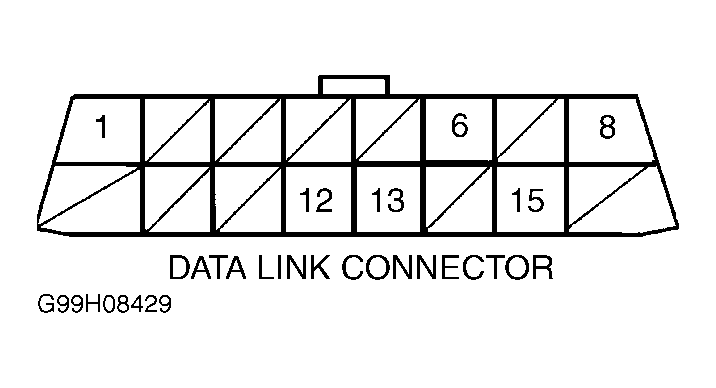

Fig 1: Identifying Data Link Connector (DLC) Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying PCM Connectors & Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.
