Deflection Method

  1. Apply a force of 22 lbs. (98 N), and measure the deflection between the A/C compressor and the crankshaft pulley.
  2. Adjust belt to specifications. See A/C COMPRESSOR BELT ADJUSTMENT - DEFLECTION METHOD .
  3. Loosen the center nut of the idler pulley.
  4. Turn the adjusting bolt to get proper belt tension, then retighten the center nut.
  5. Recheck the deflection of the A/C compressor belt.

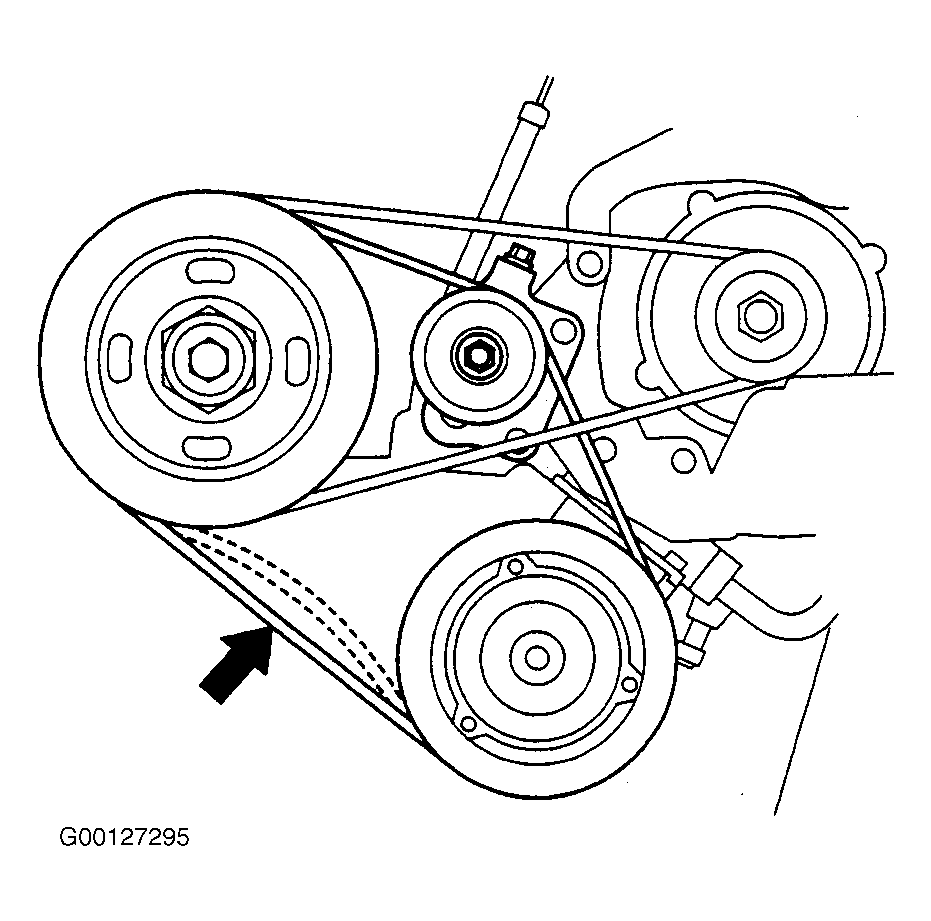

Fig 1: Checking Belt Using Deflection Method
G00127295Courtesy of AMERICAN HONDA MOTOR CO., INC.
