Daytime Running Lights Control Unit (Canada) Connector End View

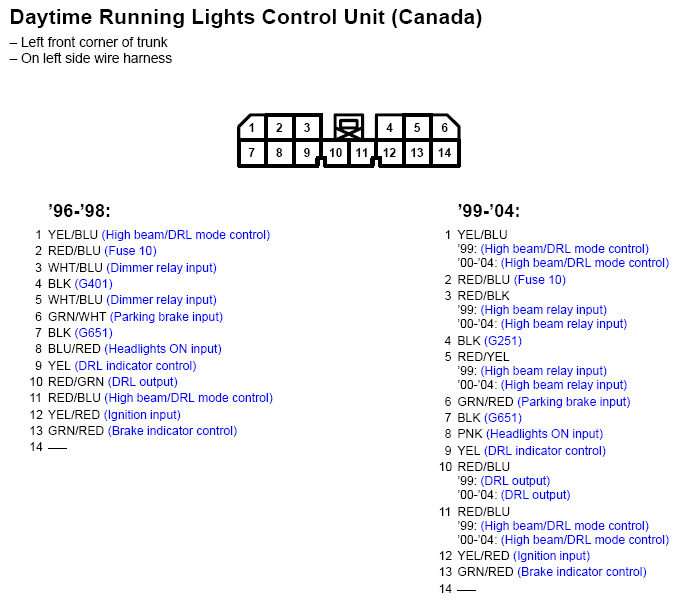

Fig 1: Daytime Running Lights Control Unit (Canada) Connector End View
G11247562Courtesy of AMERICAN HONDA MOTOR CO., INC.
