Component Locations

COMPONENT LOCATIONS

Component	Location
Actuator Assembly	On Left Side Of Engine Compartment
A/T Gear Position Switch	In Center Console
Brake Switch	Under Dash, On Pedal Bracket
Clutch Switch	Under Dash, On Pedal Bracket
Cruise Control Unit	Under Left Side Of Dash, Under Knee Bolster & Lower Cover
Cruise Control Main Switch	In Instrument Panel, To Left Of Steering Column
SET/RESUME Switch	In Steering Wheel

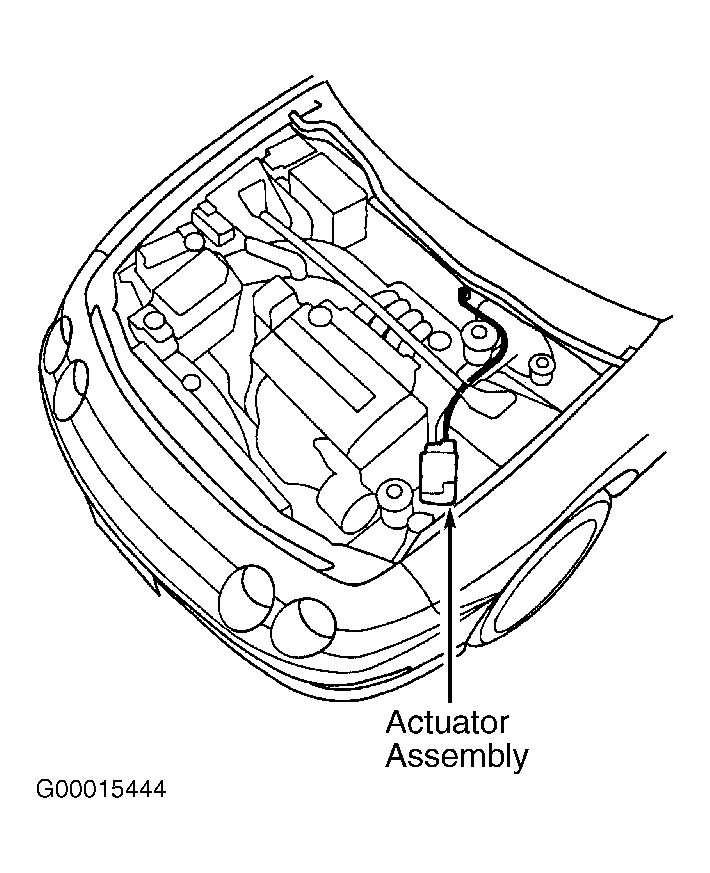

Fig 1: Locating Cruise Control Components (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Locating Cruise Control Components (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
