Rear (Integra)
WARNING: This page is about a different car, the 2001 Acura MDX, 2001 Acura Integra, 2001 Acura 3.5RL, 2001 Acura 3.2TL, and 2001 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.

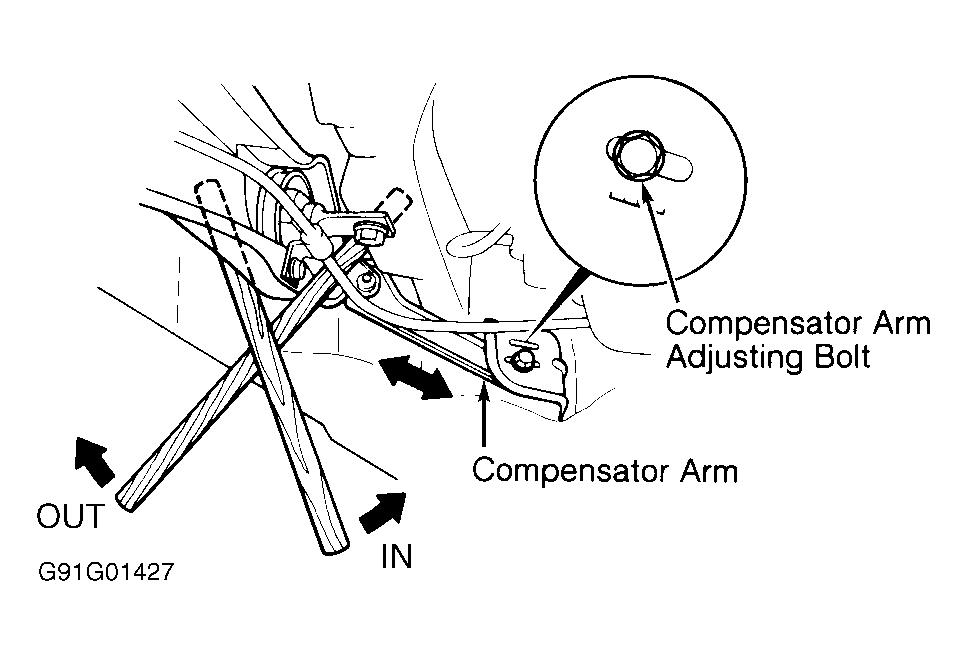

Release parking brake. If parking brake is engaged, toe reading may be incorrect. Note locations of right and left compensator arm adjusting bolts. See Fig 1. Loosen adjuster bolt. Slide compensator arm in or out to adjust toe-in. See WHEEL ALIGNMENT SPECIFICATIONS . Tighten adjuster bolt. See TORQUE SPECIFICATIONS .
