Air Conditioning Service Specifications
AIR CONDITIONING SPECIFICATIONS
| Application | Specification | |||||
|---|---|---|---|---|---|---|
| Compressor Type | DENSO Piston Type | |||||
| Refrigerant Oil (1) | ||||||
| Compressor Oil Capacity | 5.33 ozs. | |||||
| Condenser Oil Capacity | .33 ozs. | |||||
| Evaporator Oil Capacity | .33 ozs. | |||||
| Line & Hose Oil Capacity | .67 ozs. | |||||
| Receiver Oil Capacity | .33 ozs. | |||||
| Refrigerant (R-134a) Capacity | 28.2-30.0 ozs. | |||||

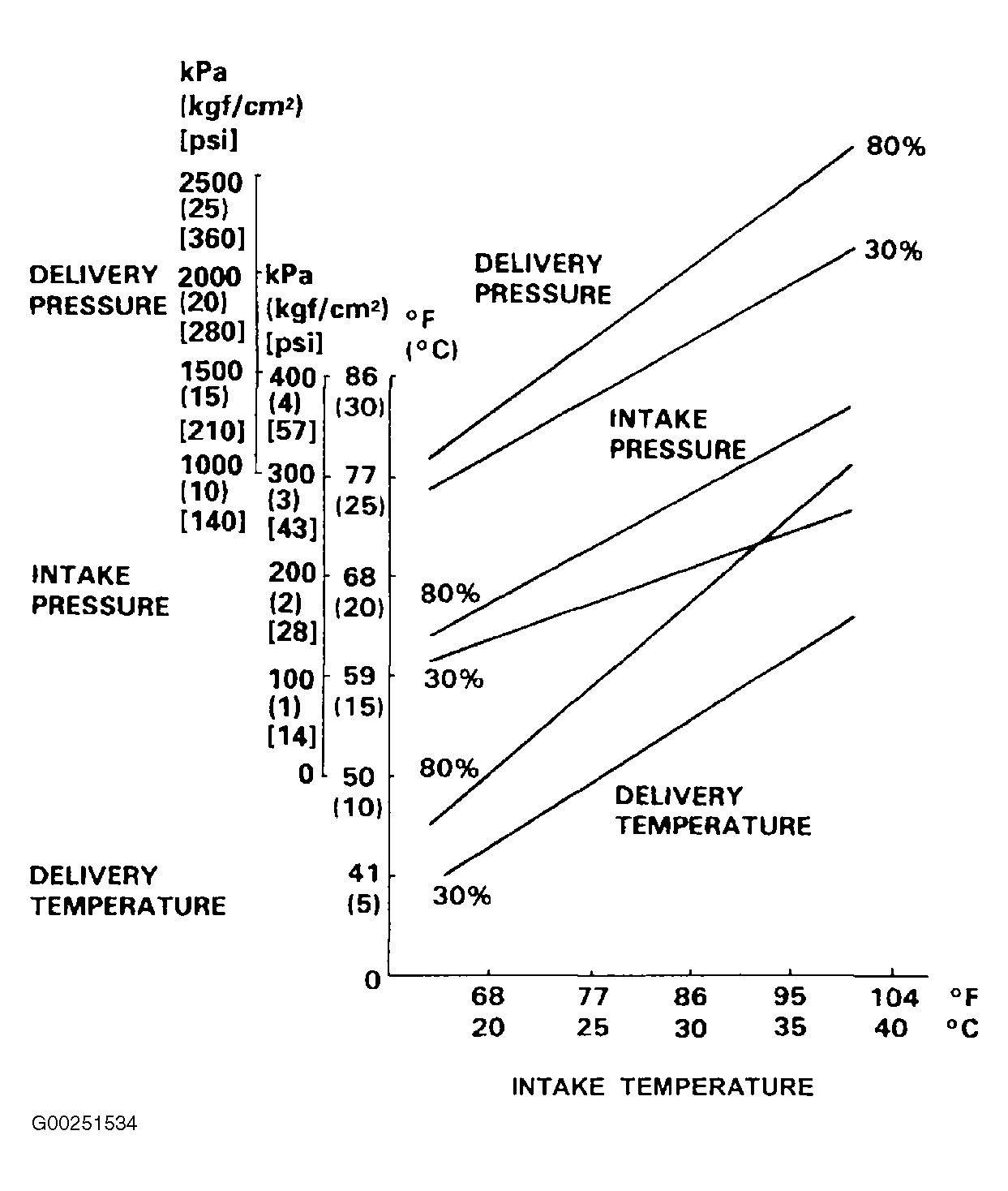

| System Operating Pressures | (2) | |||||
|
||||||
