Steering Column Switch Test

Steering Column Switch Test

1. Remove the steering column covers.

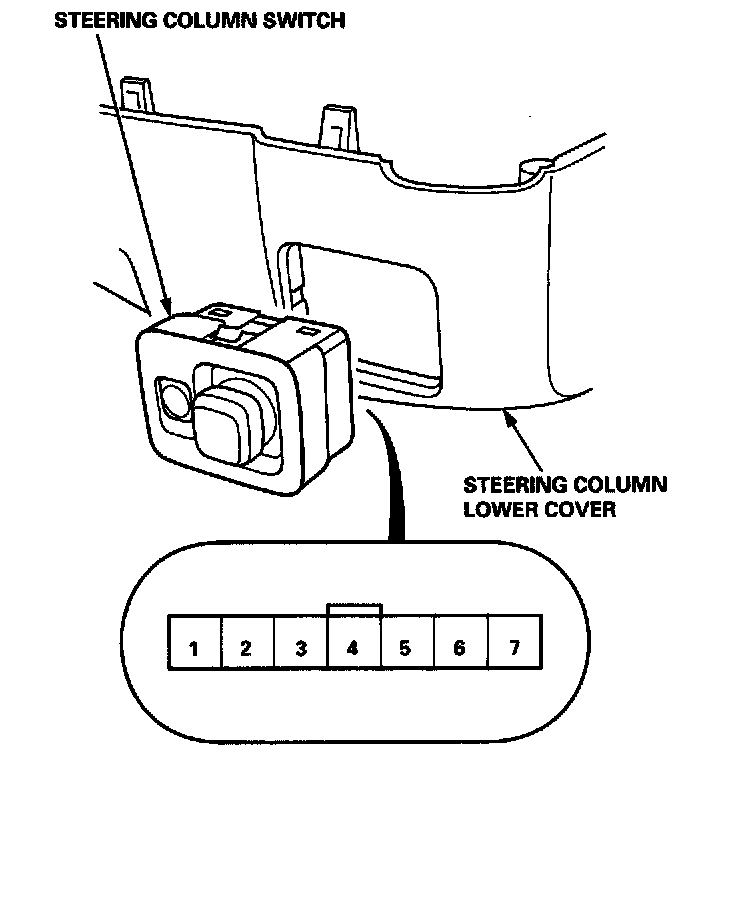

2. Disconnect the 7P connector from the switch, then remove the switch from the steering column lower cover.

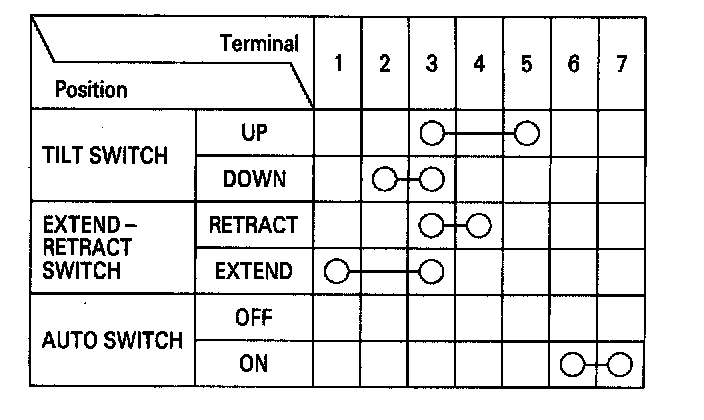

3. Check for continuity between the terminals in each switch position according to the table.
