Cruise Control Servo: Service and Repair

Actuator/Cable Replacement

1. Disconnect the 4P connector from the actuator.




2. Remove the three mounting bolts and the actuator with the bracket.
3. Remove the vacuum hose.

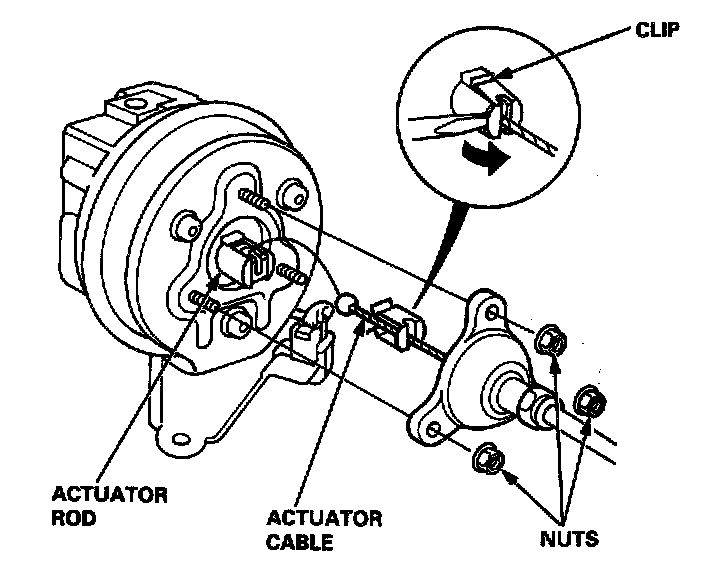

4. Remove the three nuts.




5. Disconnect the actuator cable from the actuator rod by releasing the clip from the rod with a screwdriver as shown.

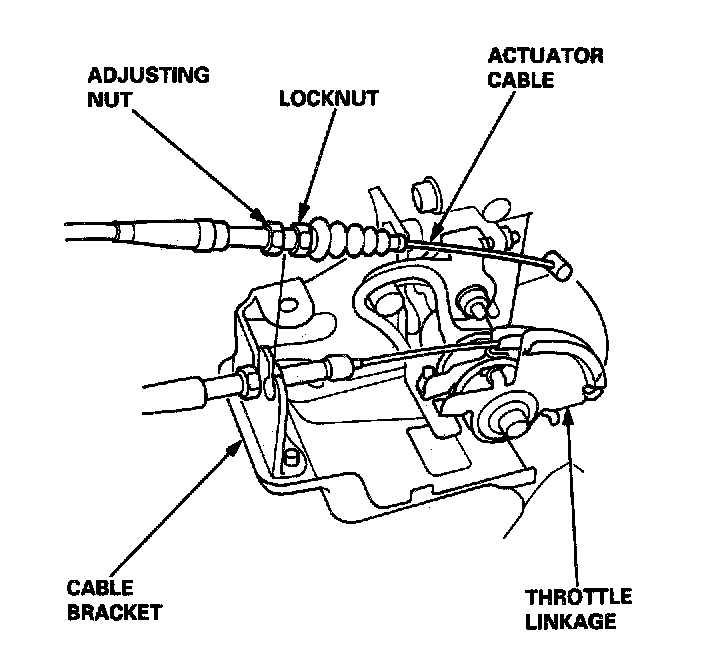

6. Loosen the locknut, then disconnect the actuator cable from the throttle linkage.
7. Install in the reverse order of removal, and adjust free play at the throttle linkage after connecting the actuator cable.
