Electronic Climate Control

Climate Control Unit Replacement

1. Remove the center air vent and center console trim.

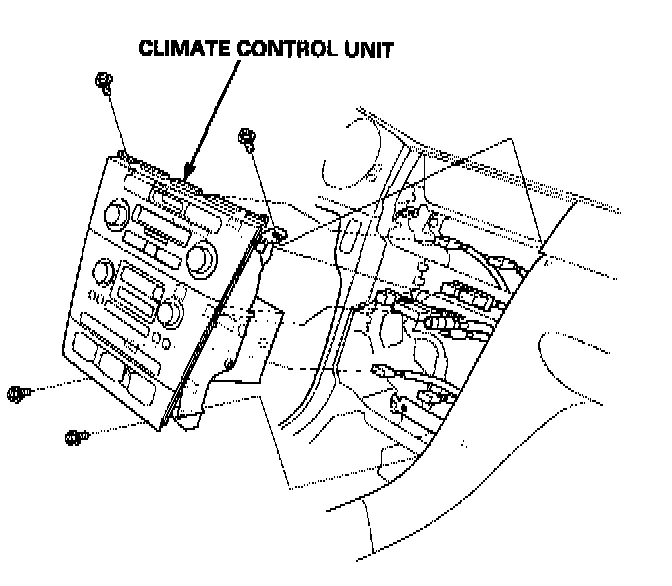

2. Remove the bolts and the climate control unit together with audio unit, then disconnect the connectors.

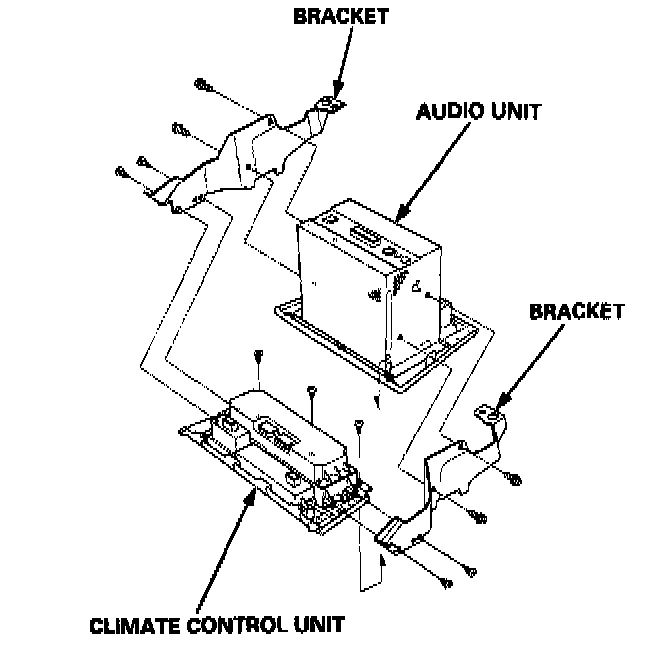

3. Remove the bolts, the screws and the brackets, then remove the screws and the climate control unit from the audio unit.
4. Install in the reverse order of removal.
