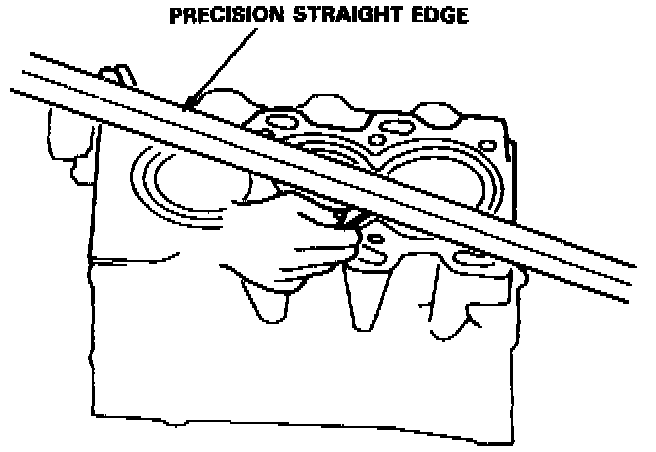

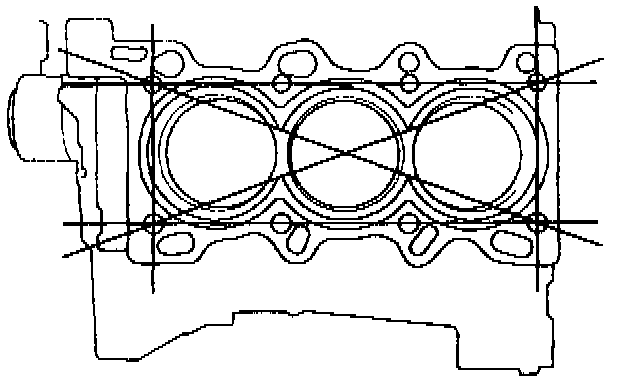

Cylinder Block Warpage
Cylinder Block Warpage
Standard (New): 0.07 mm (0.003 inch) max.
Service Limit: 0.10mm (0.004 inch)
