Power Window Relay: Locations

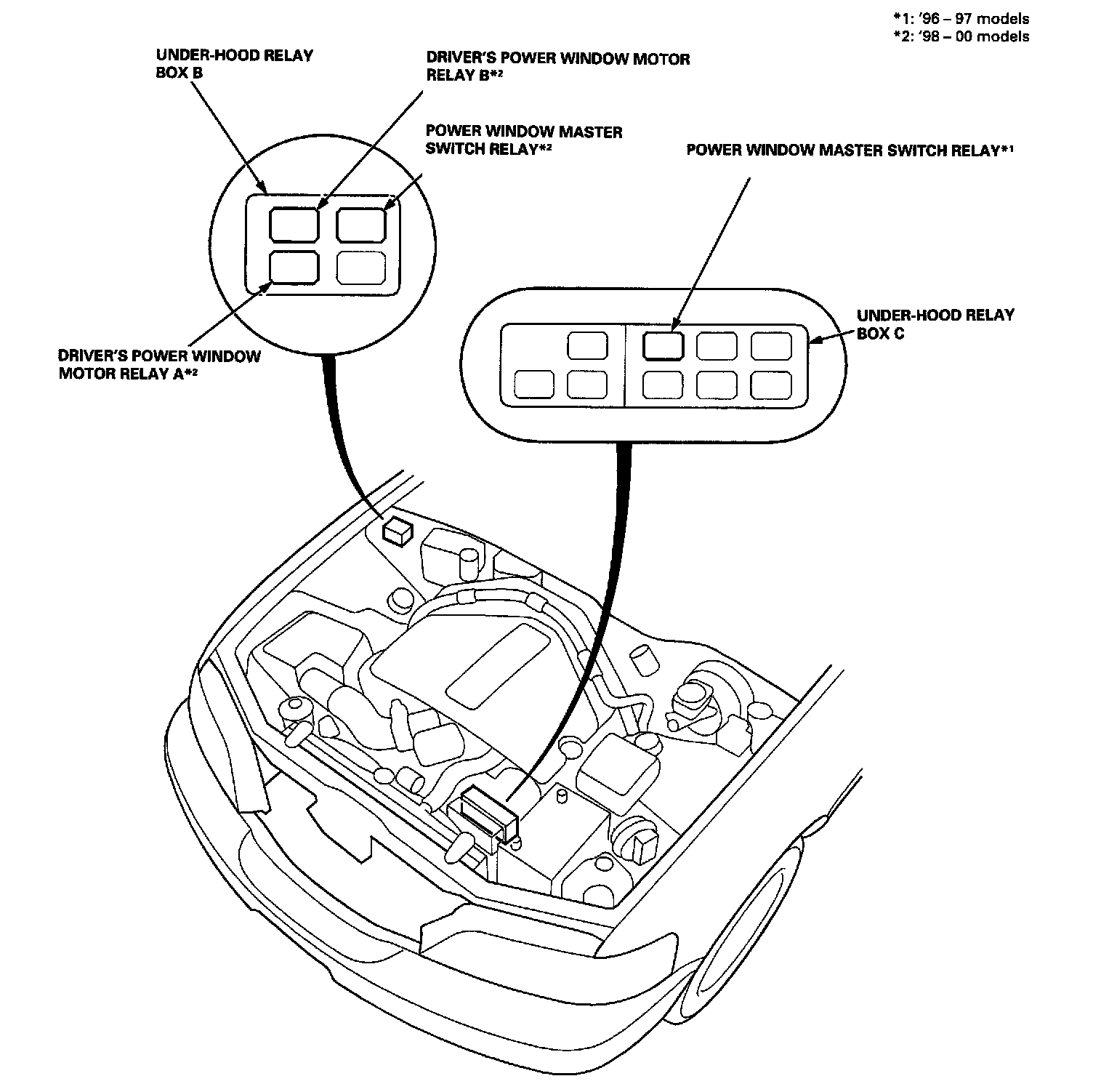

Engine Compartment View:

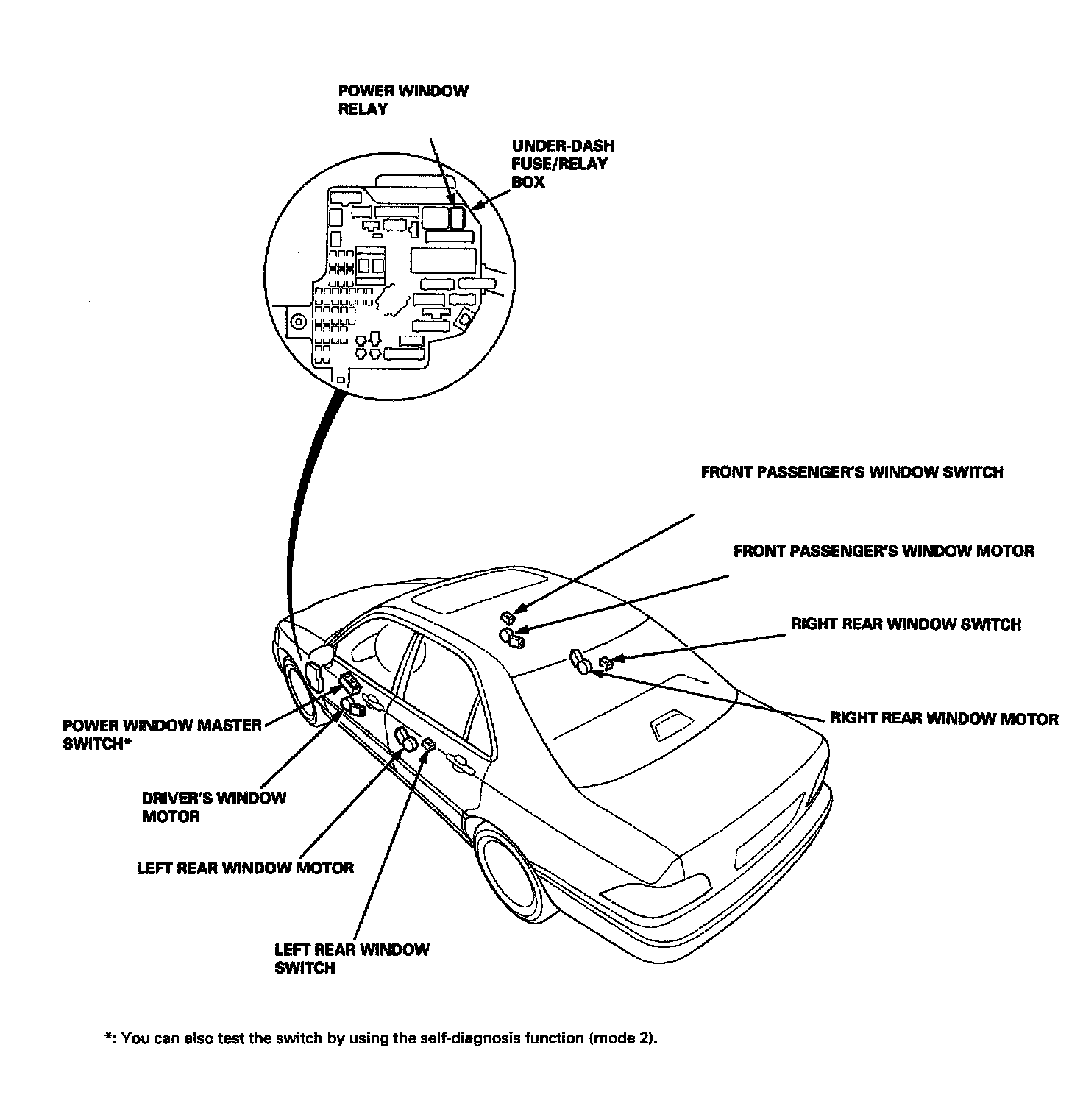

Instrument Panel View:



Power Window System (Part 1 Of 2):



Power Window System (Part 2 Of 2):

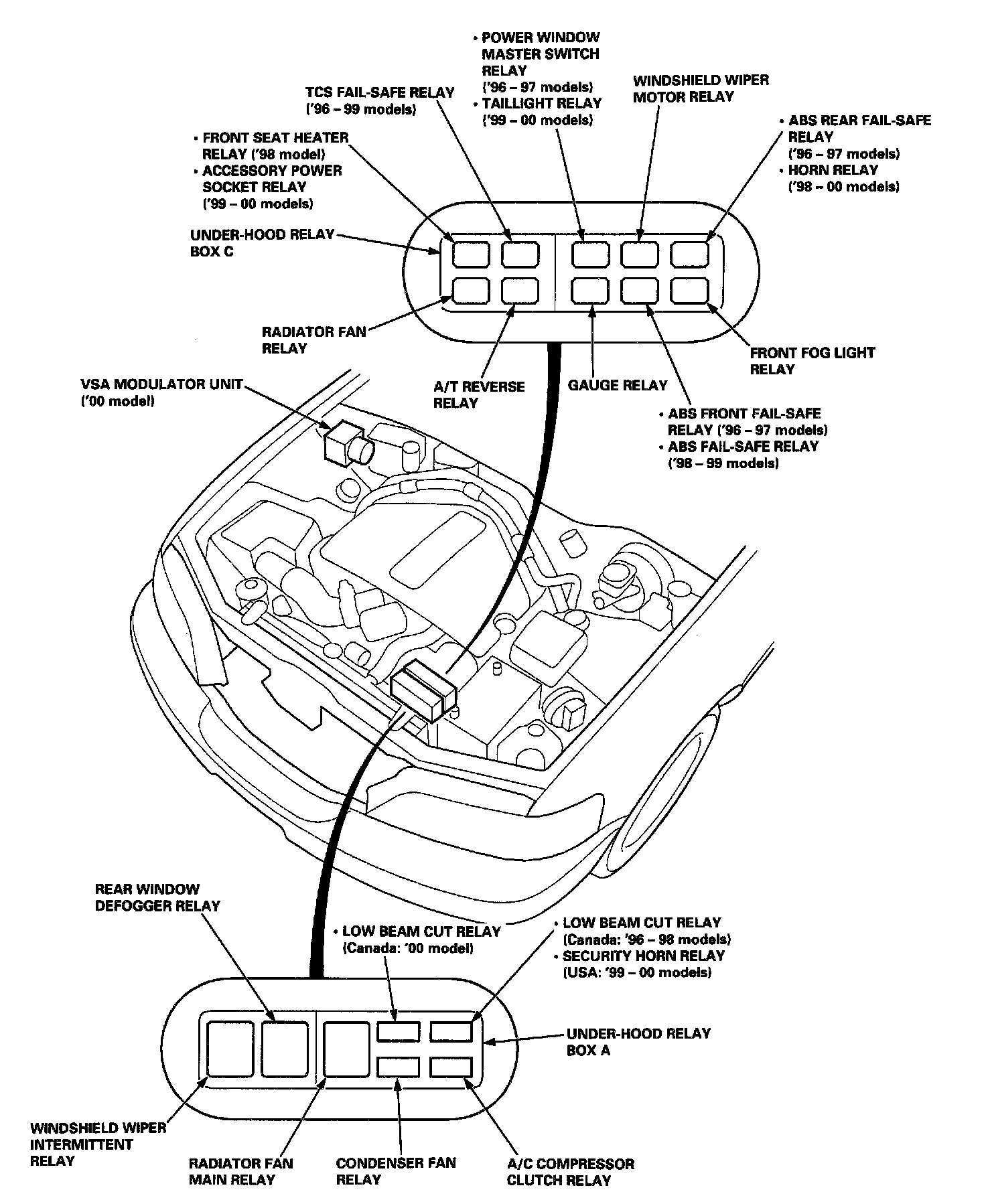

Relay And Control Unit Location - Engine Compartment:



78. Behind Left Kick Panel:

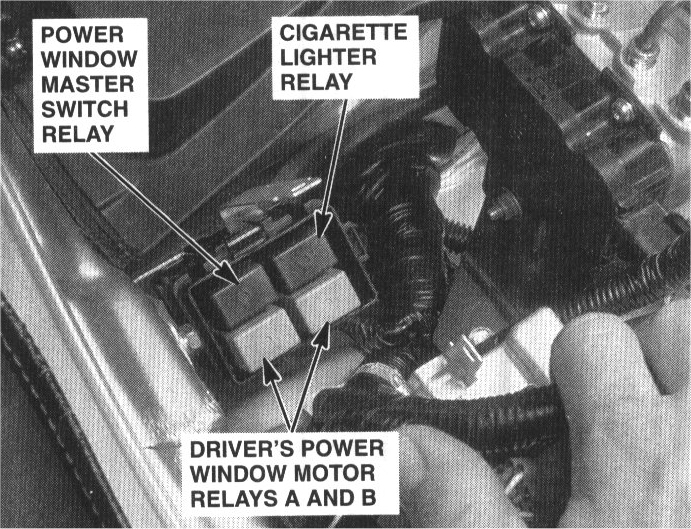

164. In Under-hood Relay Box B ('98-'01):
