Master Switch Replacement

1. Remove the driver's door panel.

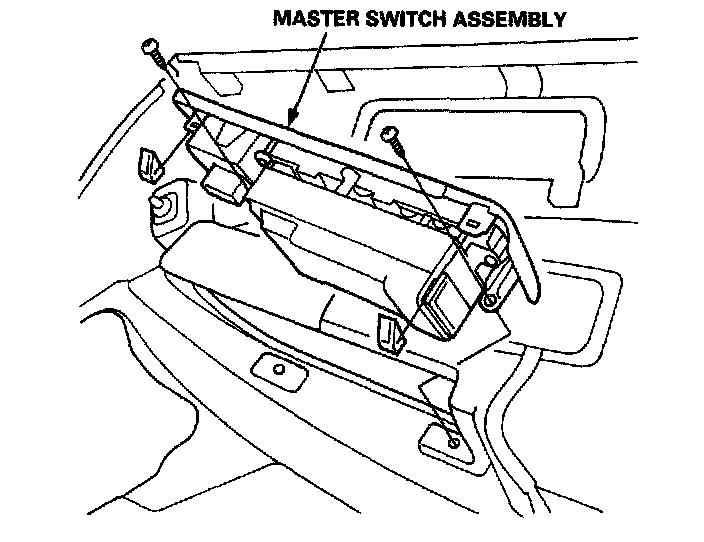

2. Remove the two mounting screws, then remove the master switch assembly from the door panel.

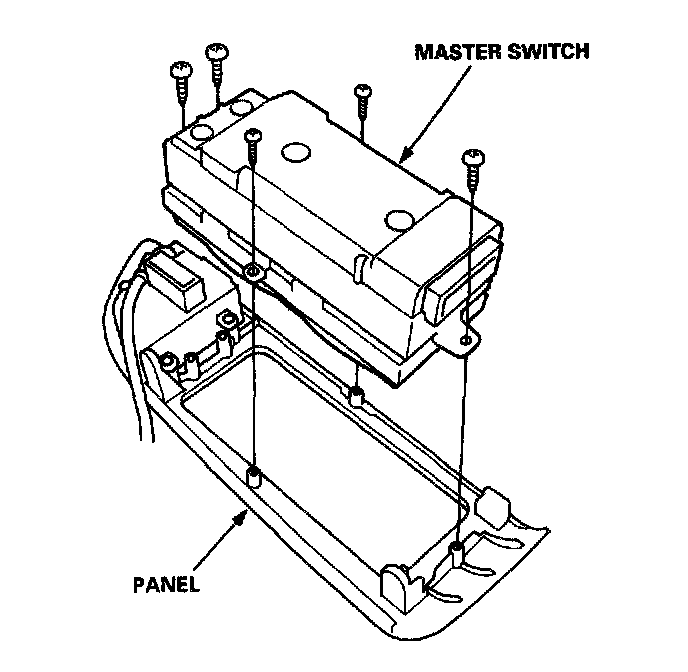

3. Remove the five mounting screws, then remove the master switch from the panel.
4. Install in the reverse order of removal.
