Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Component Location
A/C Diode A (Type S) Above right kick panel.
A/C Diode B (Type S) Above right kick panel.
A/C Diode C (Type S) Above right kick panel.
Auxiliary Fuse Holder (Type S) Behind right end of dash. See Figure .

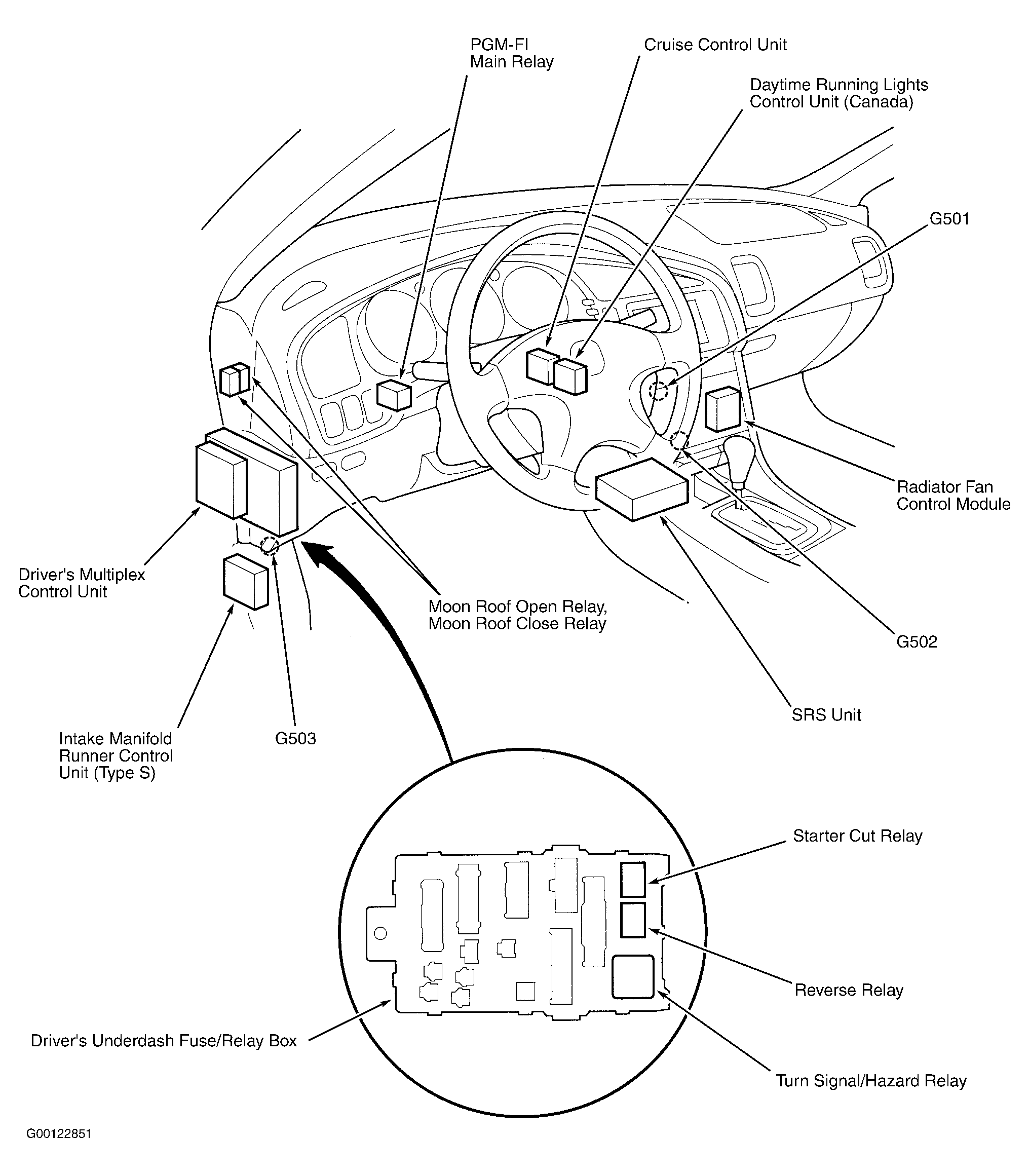

Driver's Underdash Fuse/Relay Box Behind left side of dash. See Figure .

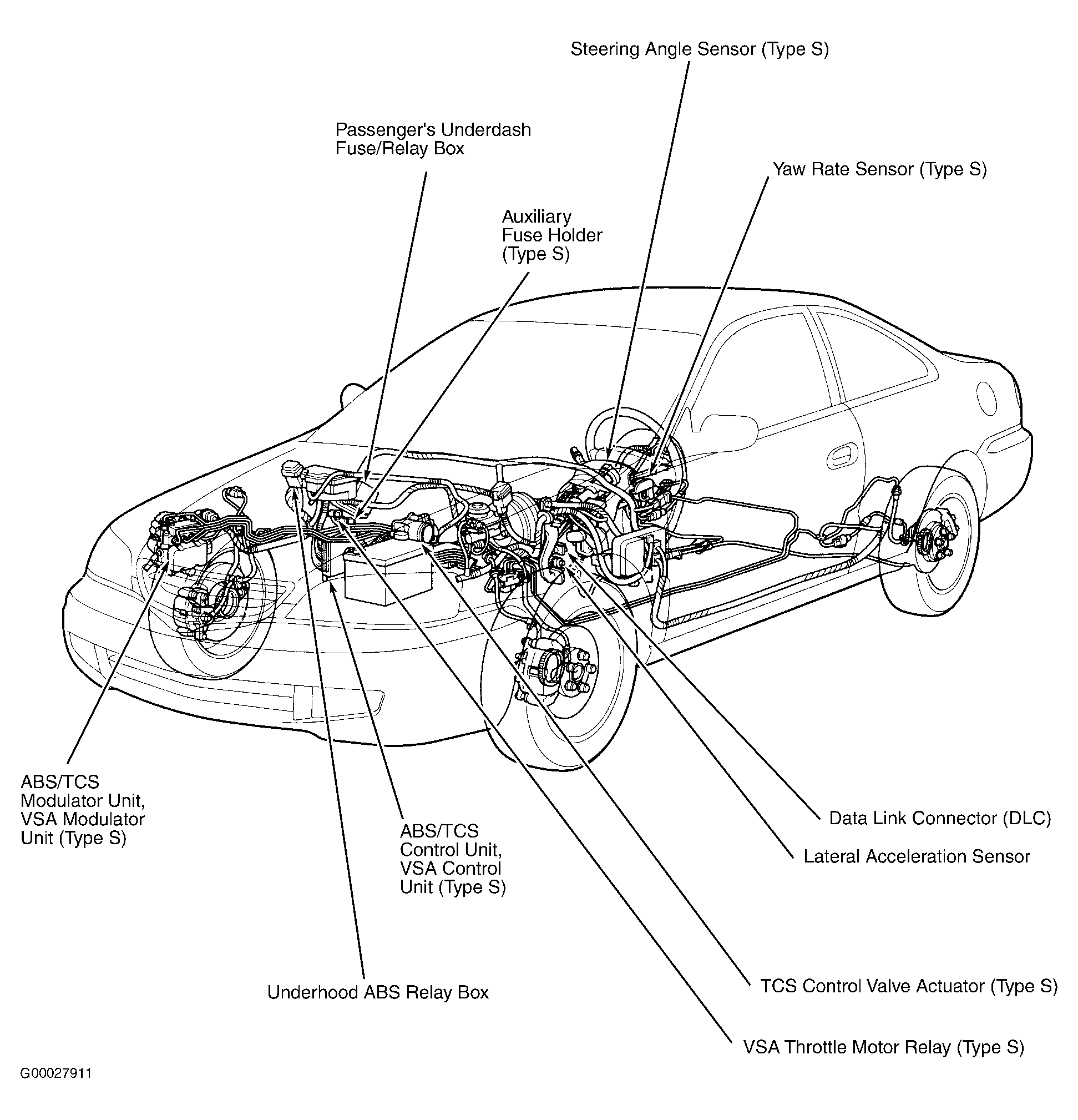

Passenger's Underdash Fuse/Relay Box Behind right kick panel. See Figure .
Relay Block At left rear corner of engine compartment. See Figure .
Underhood ABS Relay Box On right side of firewall. See Figure .

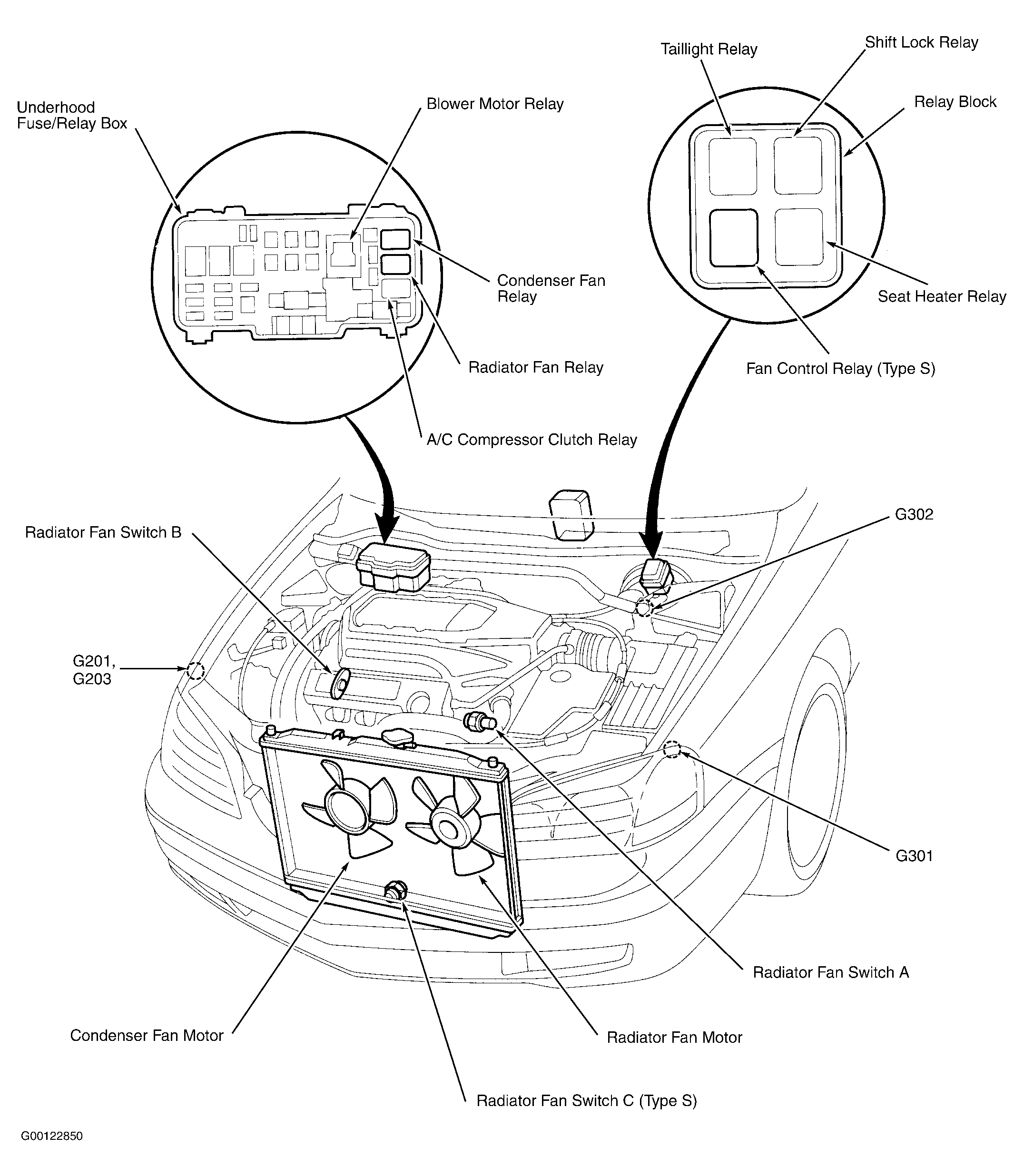

Underhood Fuse/Relay Box On right side of firewall. See Figure .
