Driver-Side Air Bag (Except 3.5RL)

  1. Turn ignition off. Disconnect both battery cables. Remove access panel from steering wheel. See Fig 1.
  2. Disconnect air bag connector from cable reel connector. Driver's air bag is now disabled. Disable passenger-side air bag.

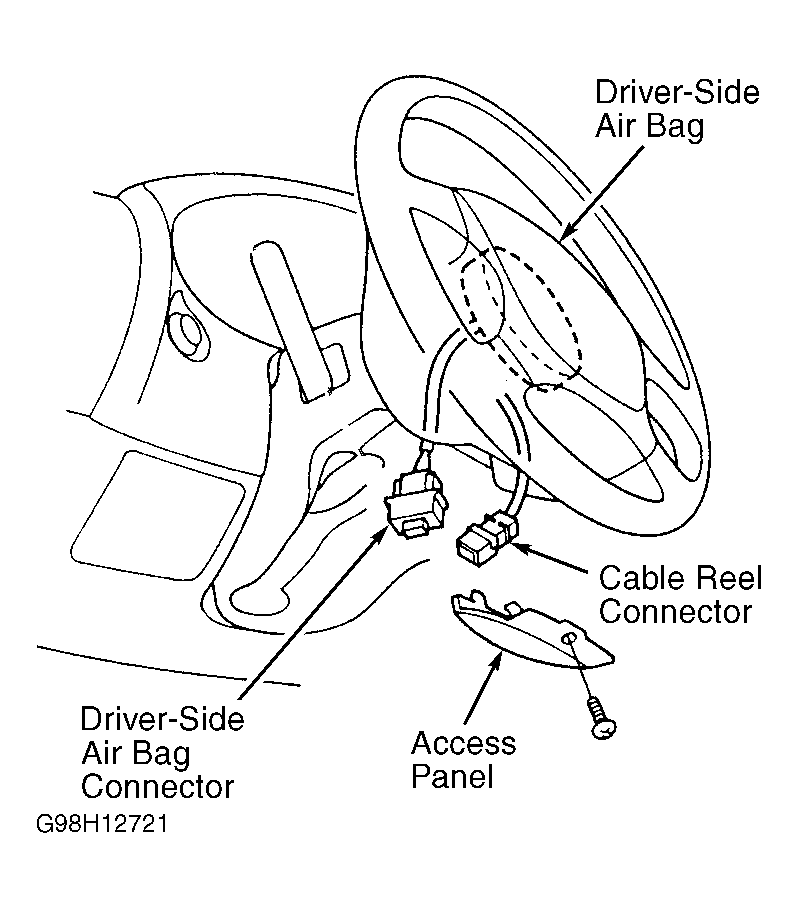

Fig 1: Locating Driver-Side SRS Maintenance Lid & Connector (Typical)
G98H12721Courtesy of AMERICAN HONDA MOTOR CO., INC.
