Retrieving Diagnostic Trouble Codes Using Honda PGM Tester

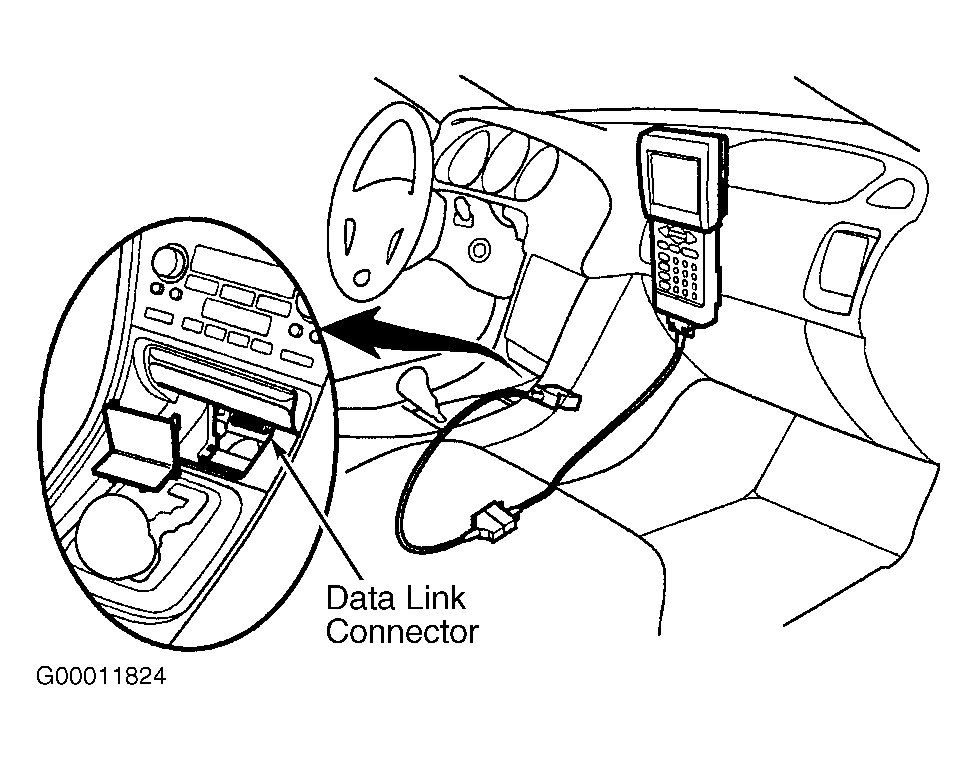

With ignition off, connect Honda PGM Tester to 16-pin DLC located behind access panel in center console. See Figure. Turn ignition on and follow tester prompts to retrieve DTCs. See tester user's manual for specific instructions. See ABS DIAGNOSTIC TROUBLE CODE IDENTIFICATION  and TCS DIAGNOSTIC TROUBLE CODE IDENTIFICATION  tables.
