Component Locations

WARNING: This page is about a different car, the 2002 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.

Refer to illustration for component locations. See Fig 1.

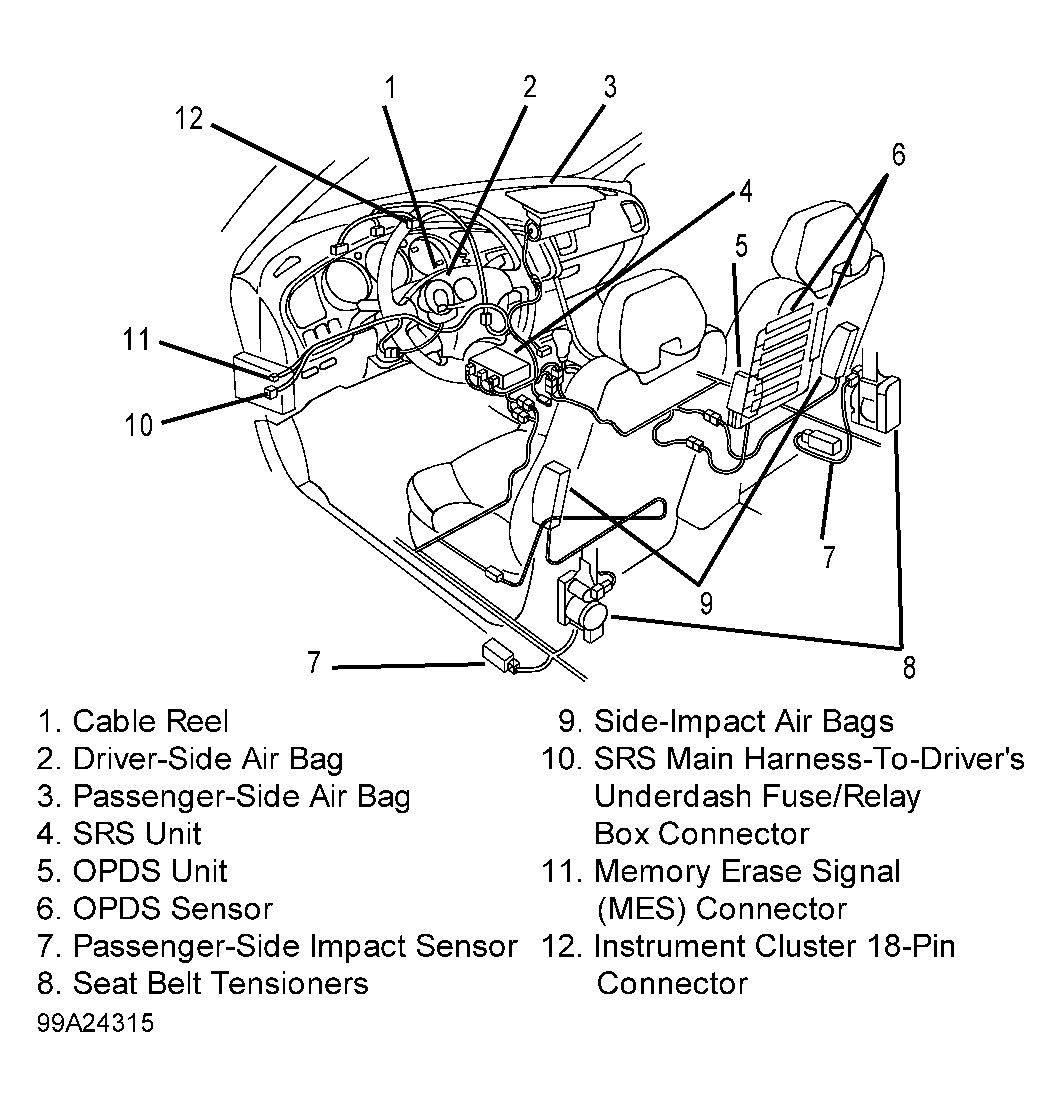

Fig 1: Locating Restraint System Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
