A/C Refrigerant Oil Replacement
WARNING: This page is about a different car, the 2003 Acura 3.2CL and 2002 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.
Recommended PAG oil: DENSO ND-OIL 8:
- P/N 38897-PR7-A01AH: 120 ml (4 fl.oz)
- P/N 38899-PR7-A01: 40 ml (1 1/3 fl.oz)
Add the recommend refrigerant oil in the amount listed if you replace any of the following parts.
- To avoid contamination, do not return the oil to the container once dispensed, and never mix it with other refrigerant oils.
- Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption.
- Do not spill the refrigerant oil on the vehicle; it may damage the paint; if it gets on the paint, wash it off immediately.
Condenser .......... 25 ml (5/6 fl.oz, 0.9 lmp.oz)
Evaporator.......... 40 ml(1 1/3 fl.oz, 1.4 lmp.oz)
Line or hose........ 10 ml(1/3 fl.oz, 0.4 lmp.oz)
Receiver/Dryer...... 10 ml(1/3 fl.oz, 0.4 lmp.oz)
Leakage repair...... 25 ml(5/6 fl.oz, 0.9 lmp.oz)

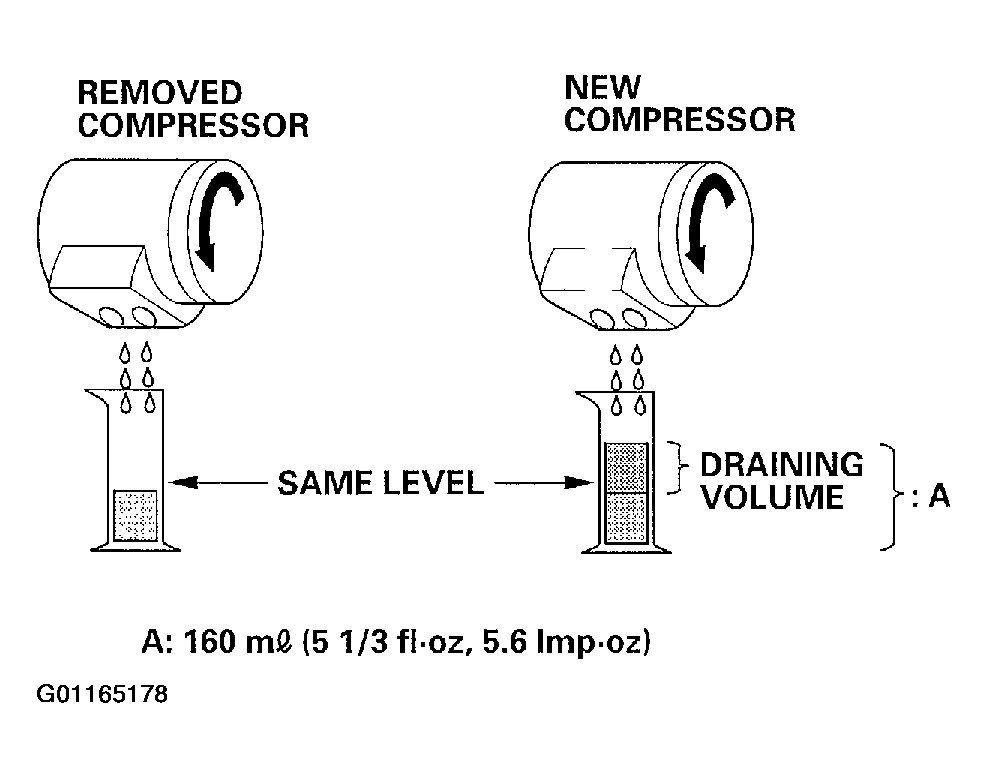

Compressor ......... For compressor replacement, subtract the volume of oil drained from the removed compressor from 160 ml(5 1/3 fl.oz, 5.6 lmp.oz), and drain the calculated volume of oil from the new compressor: 160 ml(5 1/3 fl.oz, 5.6 lmp.oz) - Volume of removed compressor = Volume to drain from new compressor.
NOTE:
Even if no oil is drained from the removed compressor, don't drain more than 50 ml (1 2/3 fl.oz, 1.8 lmp.oz) from the new compressor.
