Compressor Clutch Check

WARNING: This page is about a different car, the 2003 Acura 3.2CL and 2002 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.

Check the plated parts of the pressure plate for color changes, peeling or other damage. If there is damage, replace the clutch set (see COMPRESSOR CLUTCH OVERHAUL ).
Check the pulley bearing play and drag by rotating the pulley by hand. Replace the clutch set with a new one if it is noisy or has excessive play/drag (see COMPRESSOR CLUTCH OVERHAUL ).

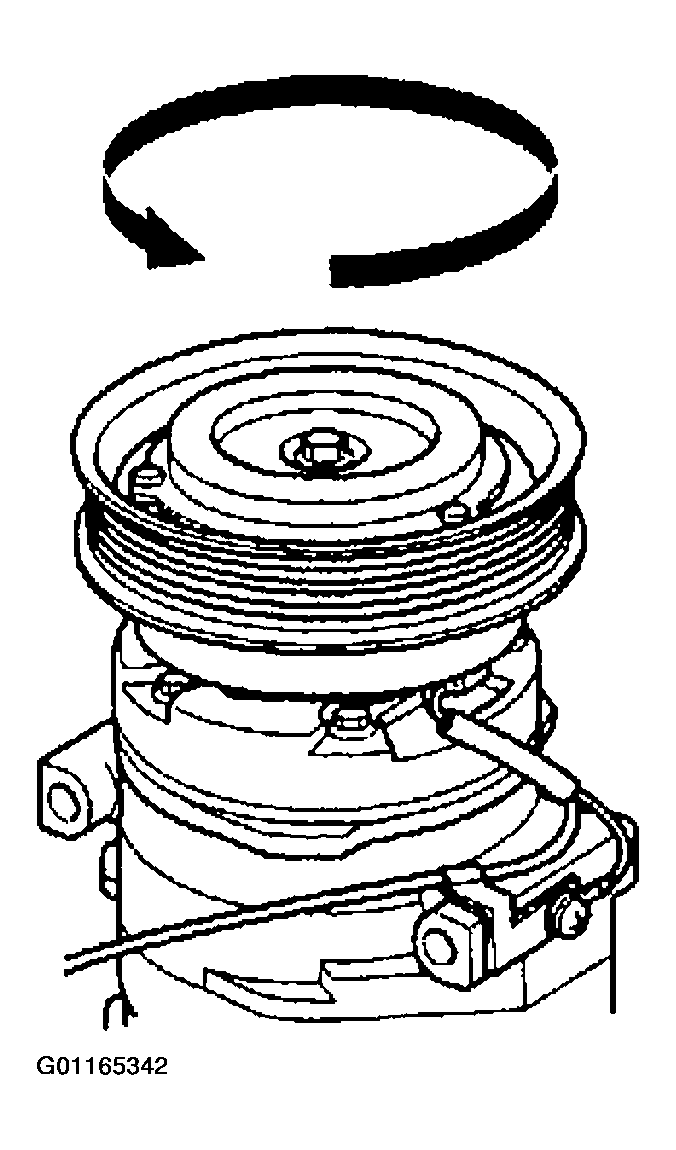

Fig 1: Checking The Pulley Bearing Play And Drag
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the clearance between the pulley (A) and the pressure plate (B) with a dial indicator. Zero out the indicator, then apply battery voltage to the compressor clutch. Measure the movement of the pressure plate when the voltage is applied. If the clearance is not within the specified limits, the pressure plate must be reshimed (see COMPRESSOR CLUTCH OVERHAUL ).
Clearance: 0.5+/-0.15 mm (0.020+/-0.006 in)

NOTE: The shims are available in four thicknesses: 0.1 mm, 0.3 mm, 0.5 mm and 1.5 mm.

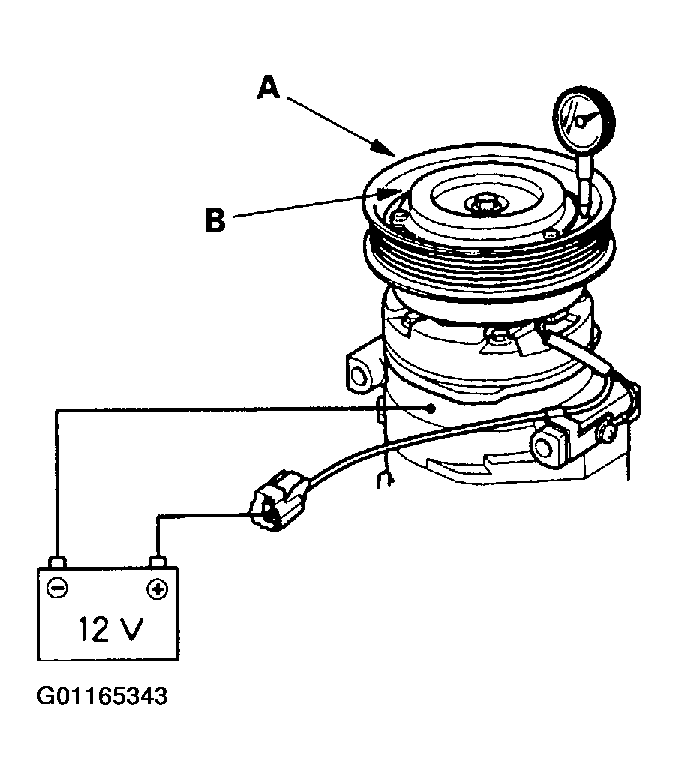

Fig 2: Measuring The Movement Of The Pressure Plate When The Voltage Is Applied
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check resistance of the field coil. If resistance is not within specifications, replace the field coil (see COMPRESSOR CLUTCH OVERHAUL ).
Field Coil Resistance: 3.4-3.8 ohms at 68 F (20 C)

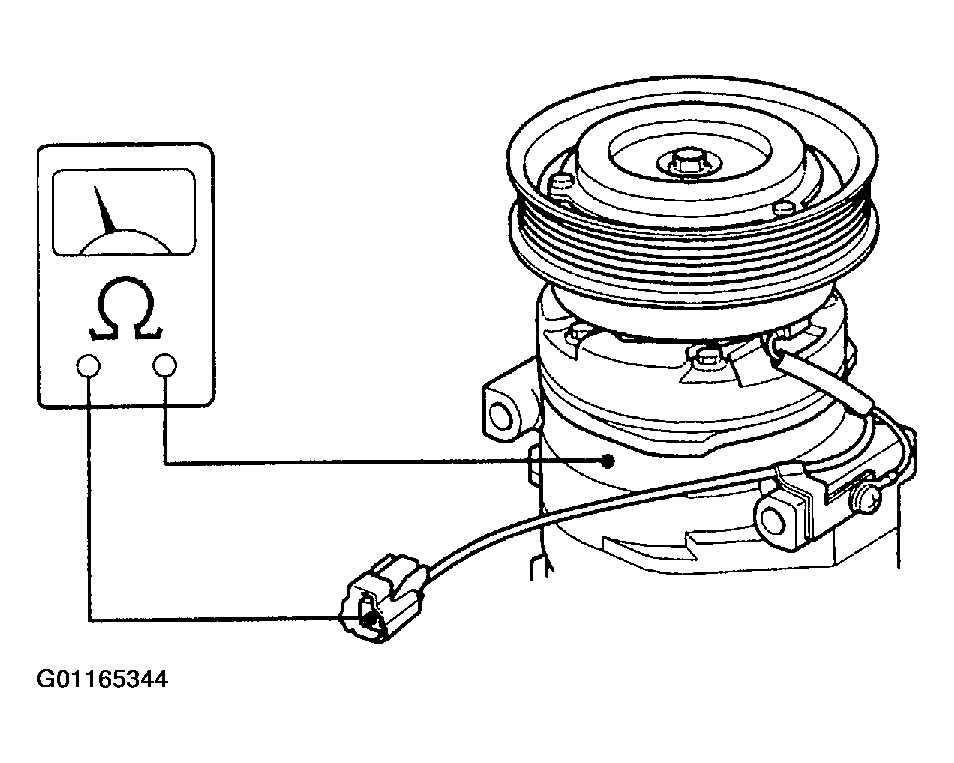

Fig 3: Checking Resistance Of The Field Coil
Courtesy of AMERICAN HONDA MOTOR CO., INC.
