WARNING: This page is about a different car, the 2003 Acura 3.2CL and 2002 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.

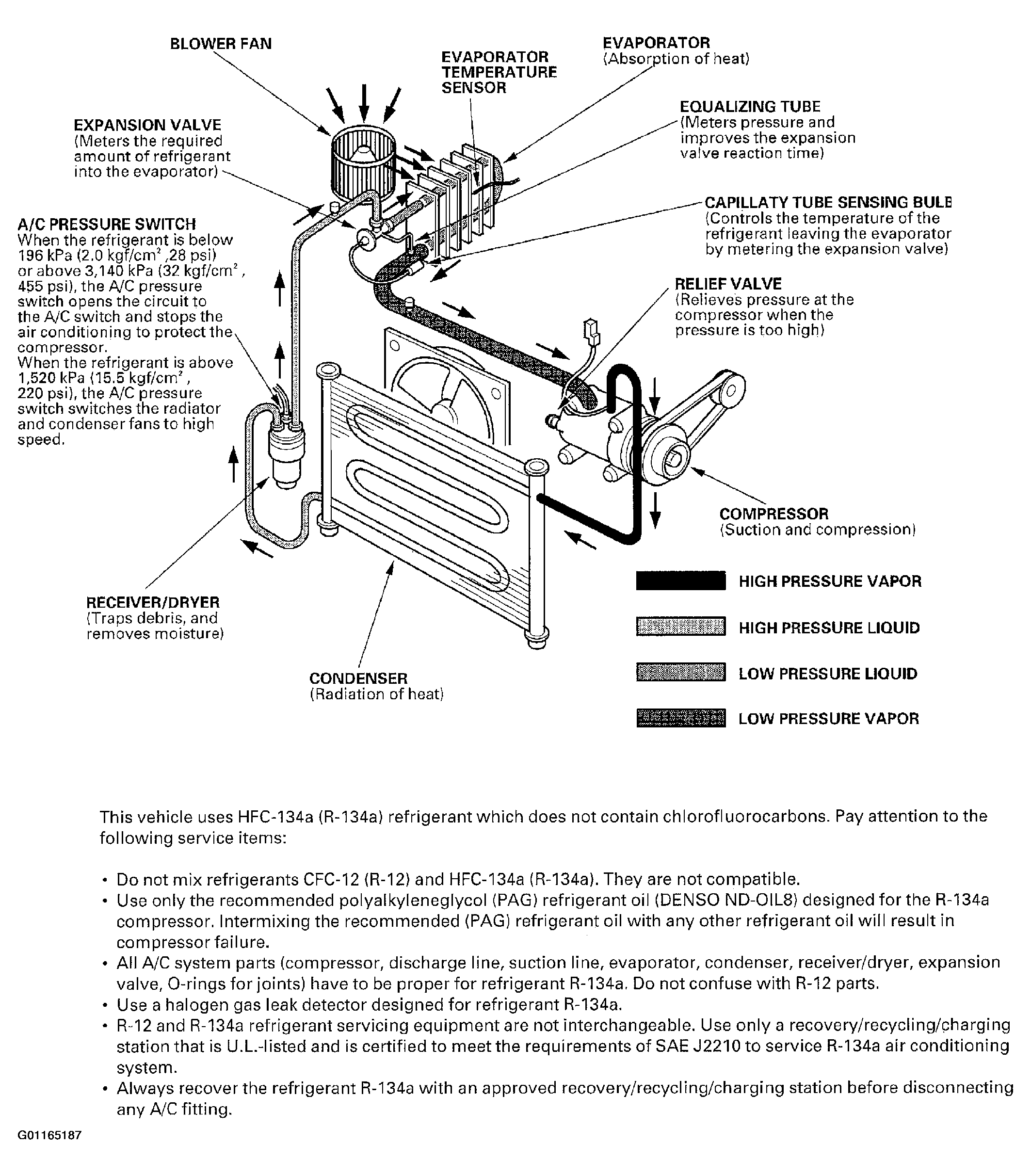

The air conditioning system removes heat from the passenger compartment by circulating refrigerant through the system as shown below.
