Select/Reset Switch Test

WARNING: This page is about a different car, the 2003 Acura 3.2CL and 2002 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 5P connector (A) from the select/ reset switch (B).

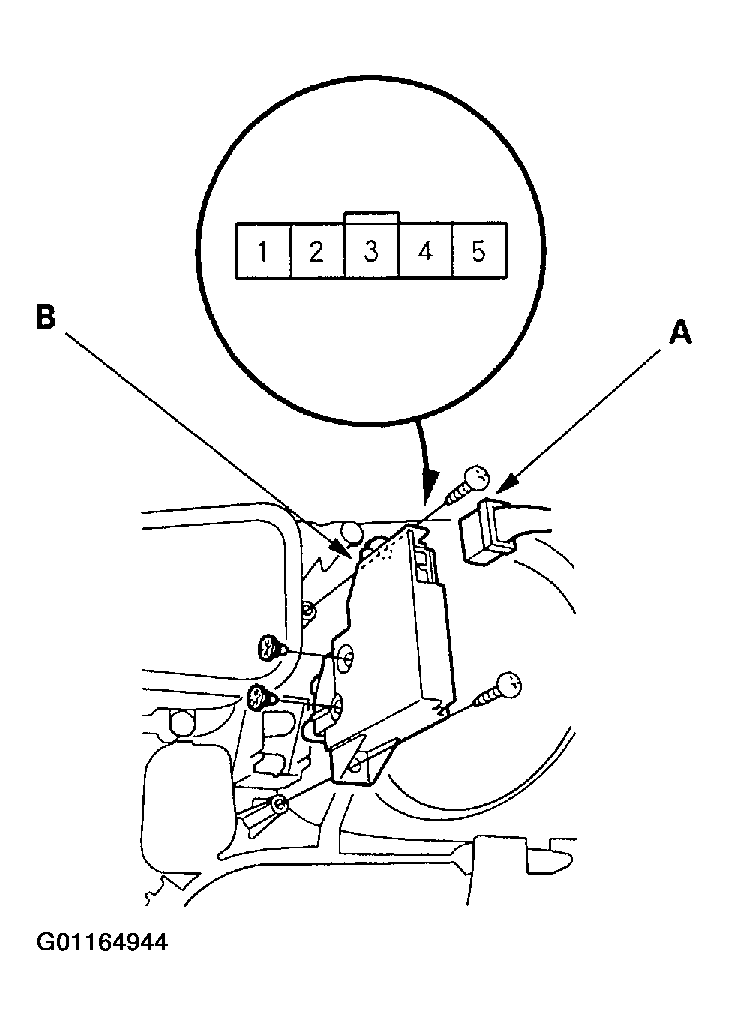

    Fig 1: Disconnecting The 5P Connector From The Select/ Reset Switch
    G01164944Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals in each switch position according to the test.
    Fig 2: Select/Reset Switch Continuity Test
    G01164945Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity checks do not agree with the test, remove the two screws and replace the switch.
