Engine Compartment

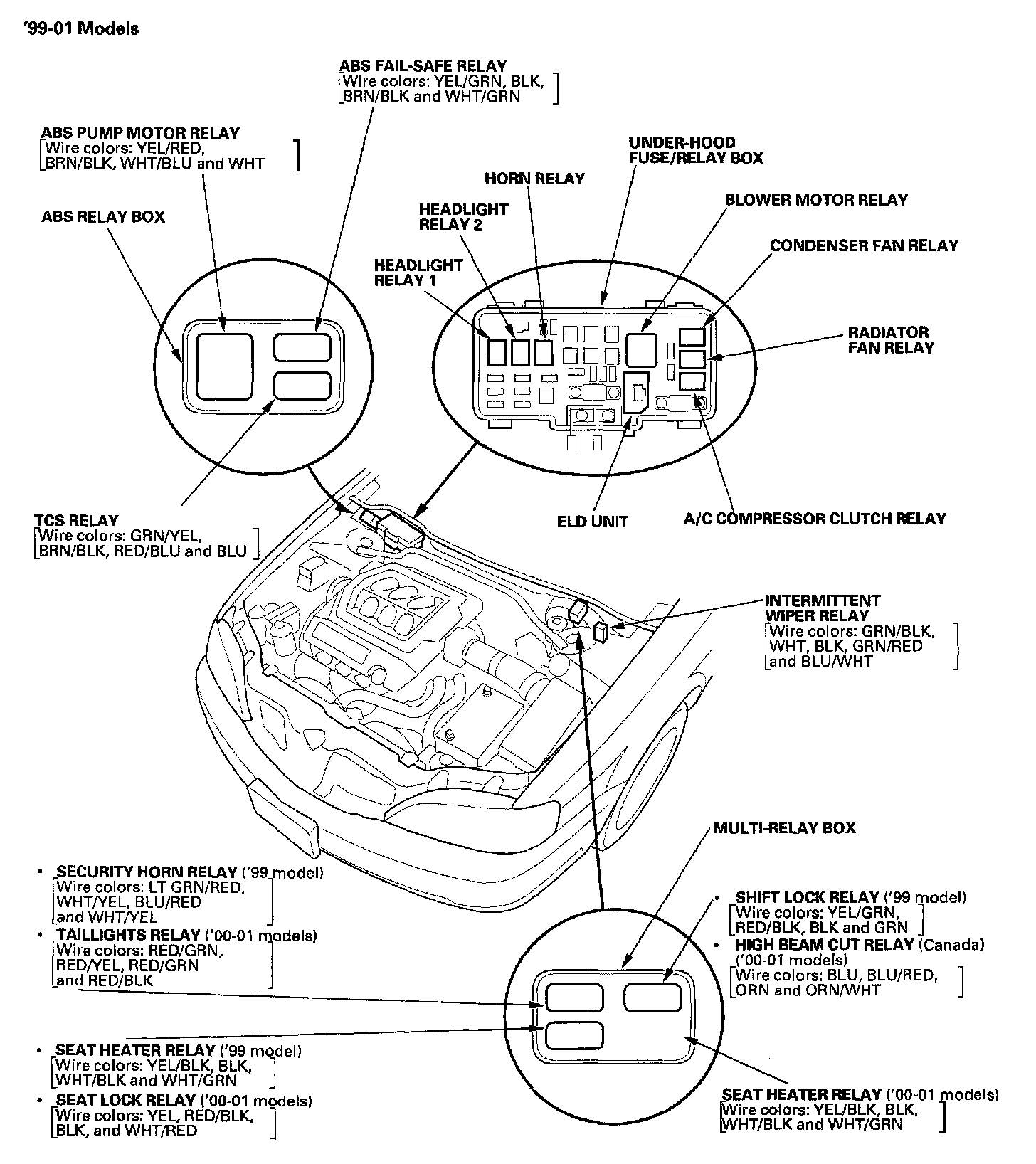

Relay And Control Unit Locations - Engine Compartment:

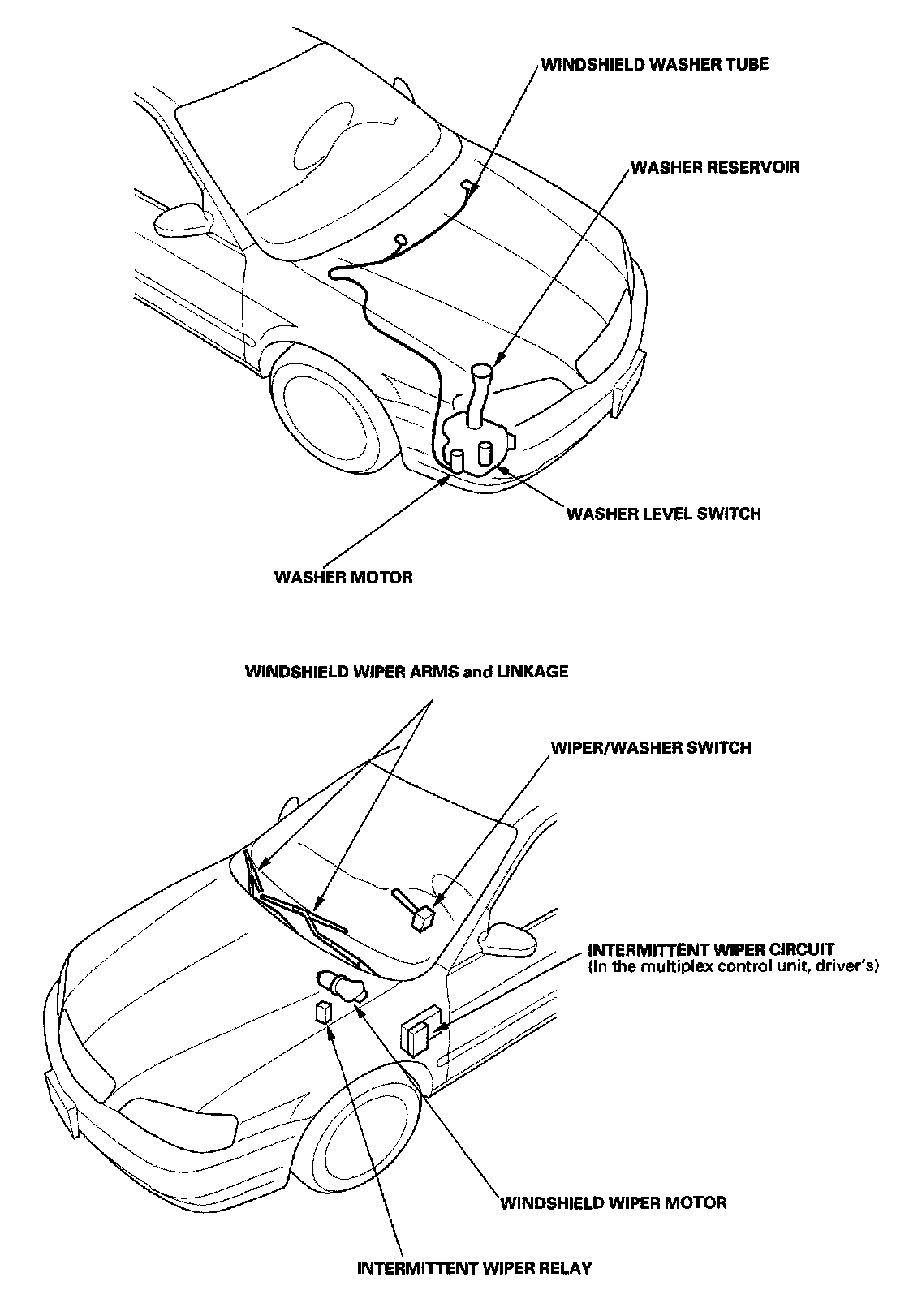

Wiper/Washer - Component Location Index:

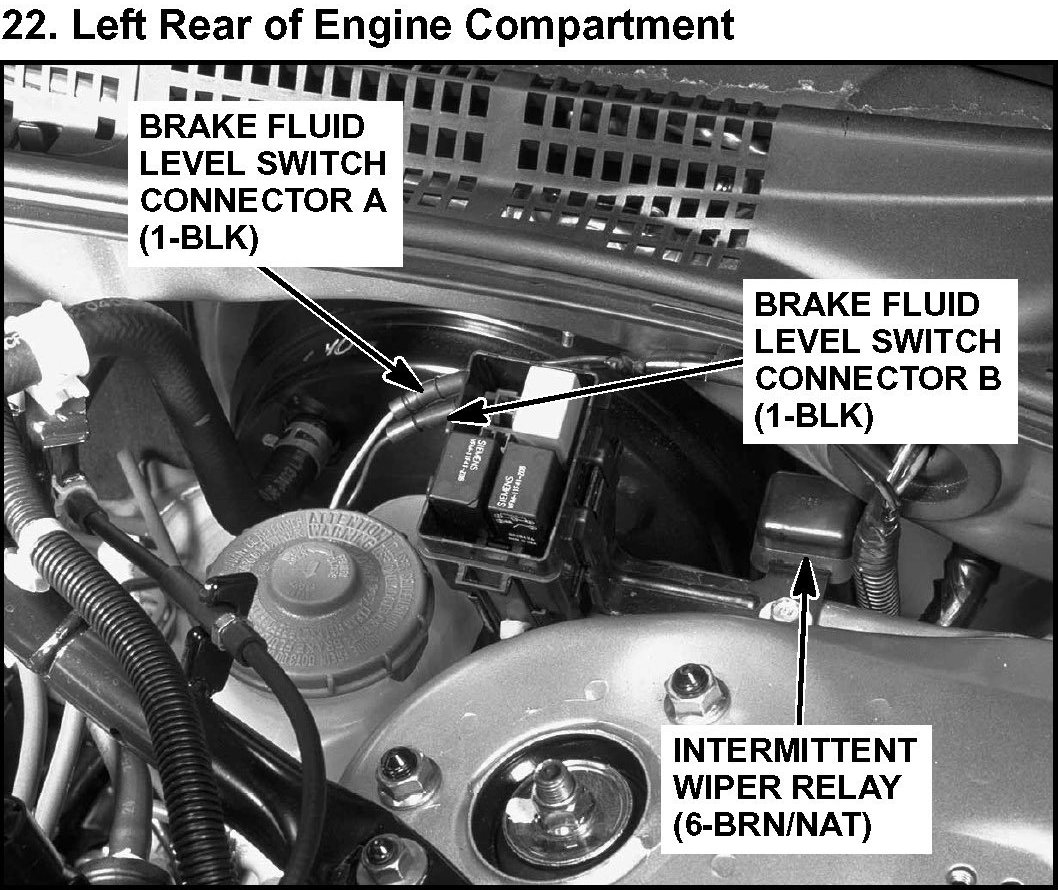

22. Left Rear Of Engine Compartment:
