Shafts and Clutches

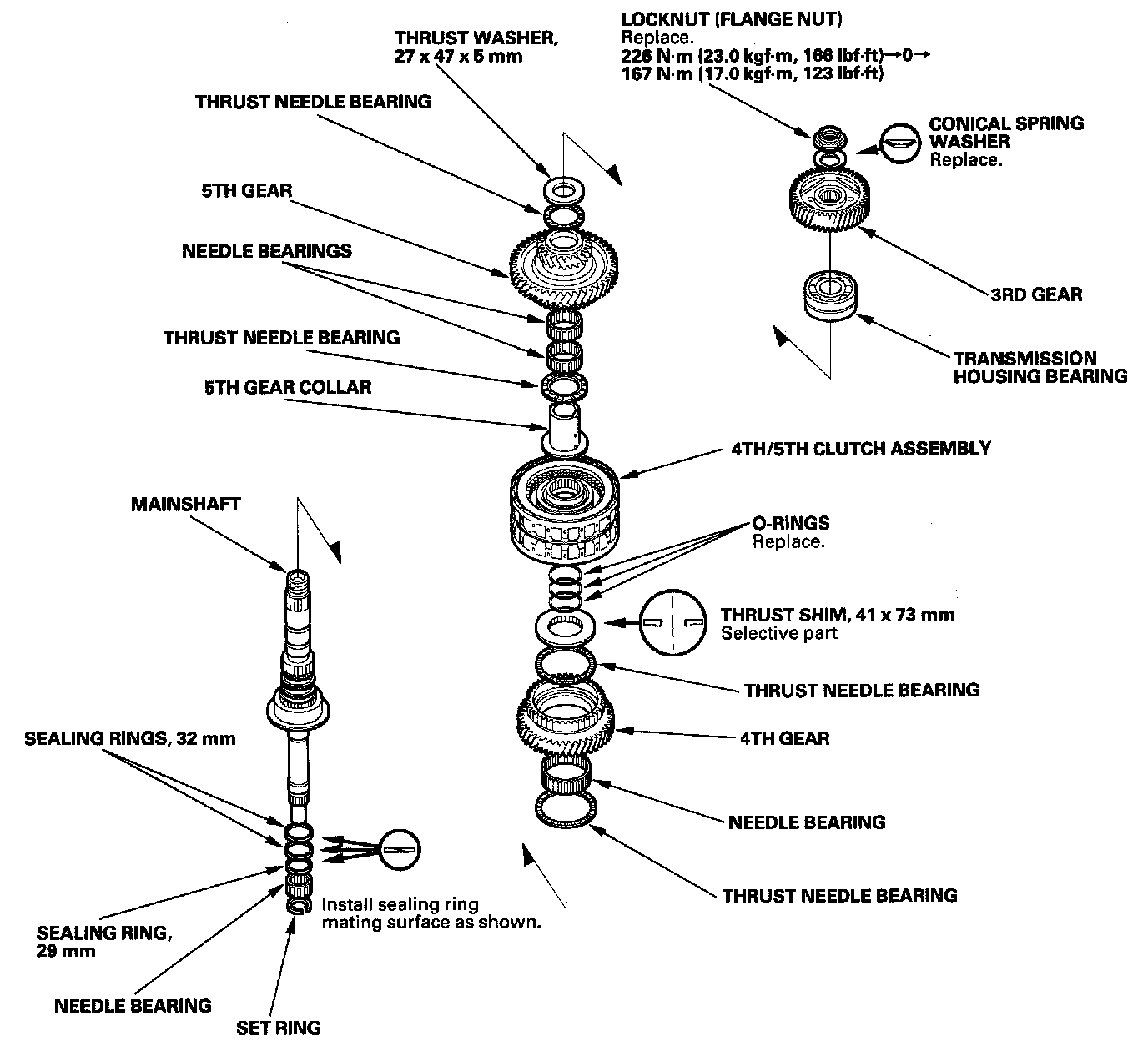

MAINSHAFT DISASSEMBLY, INSPECTION, AND REASSEMBLY

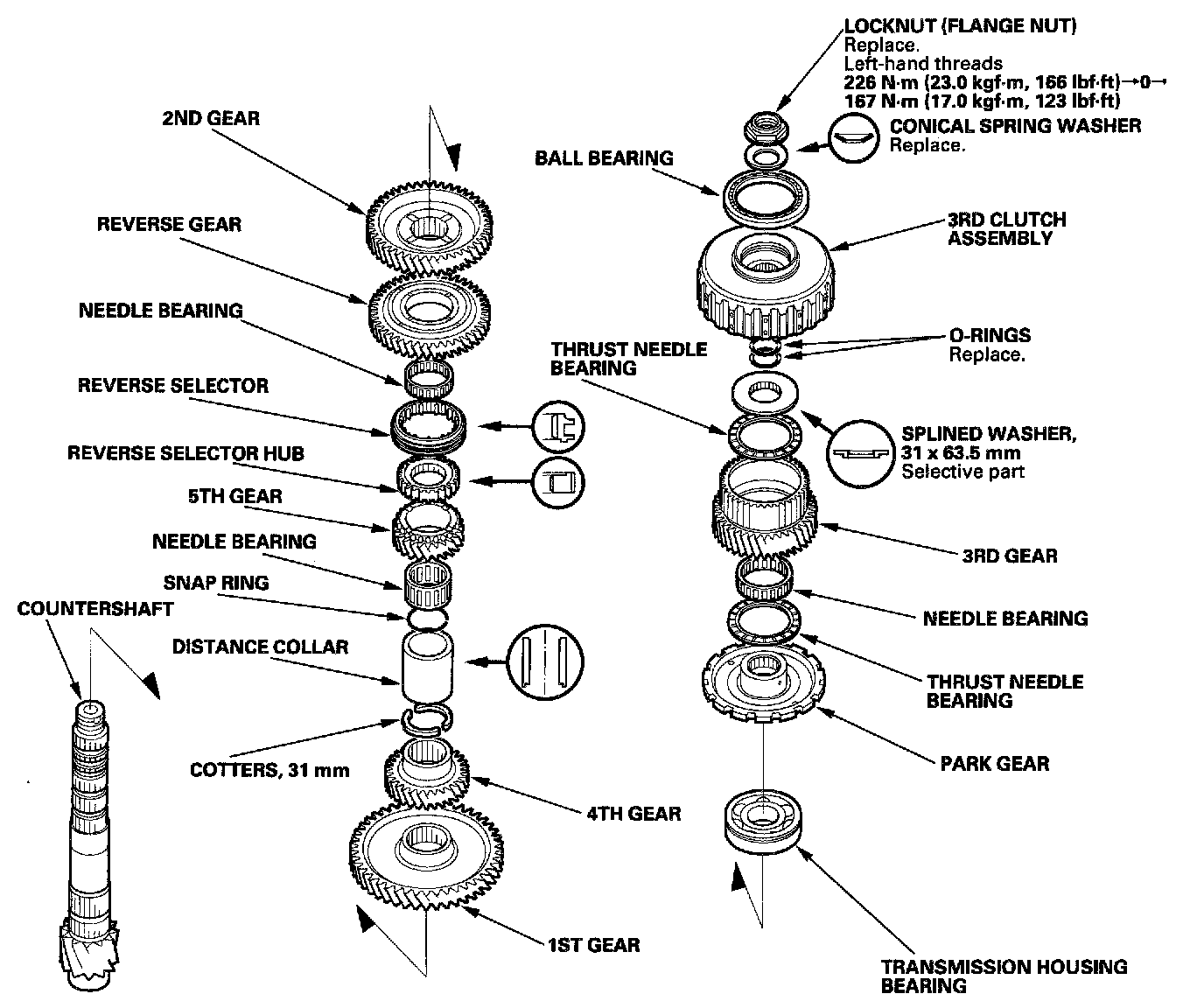

COUNTERSHAFT DISASSEMBLY, INSPECTION, AND REASSEMBLY

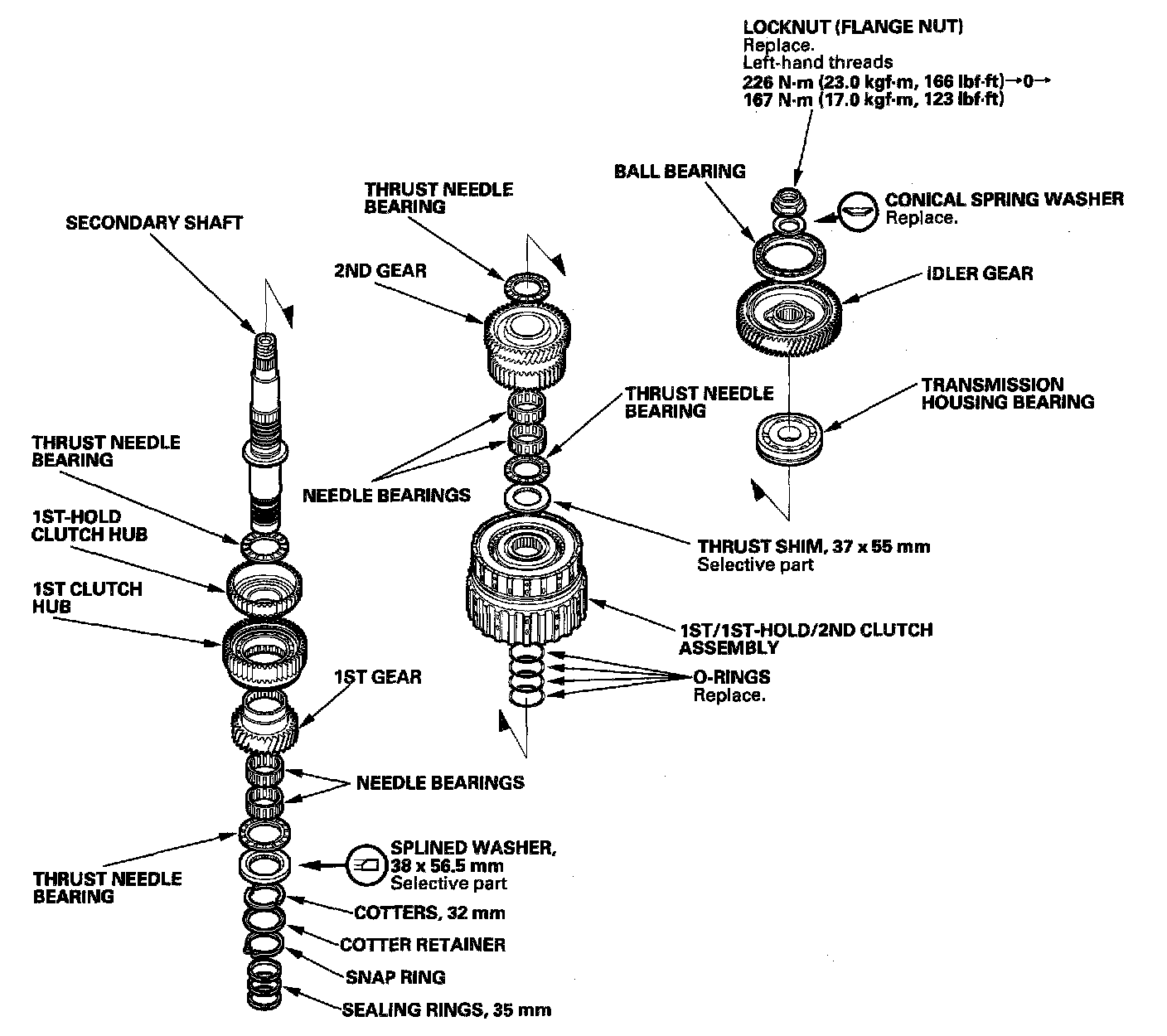

SECONDARY SHAFT DISASSEMBLY, INSPECTION, AND REASSEMBLY

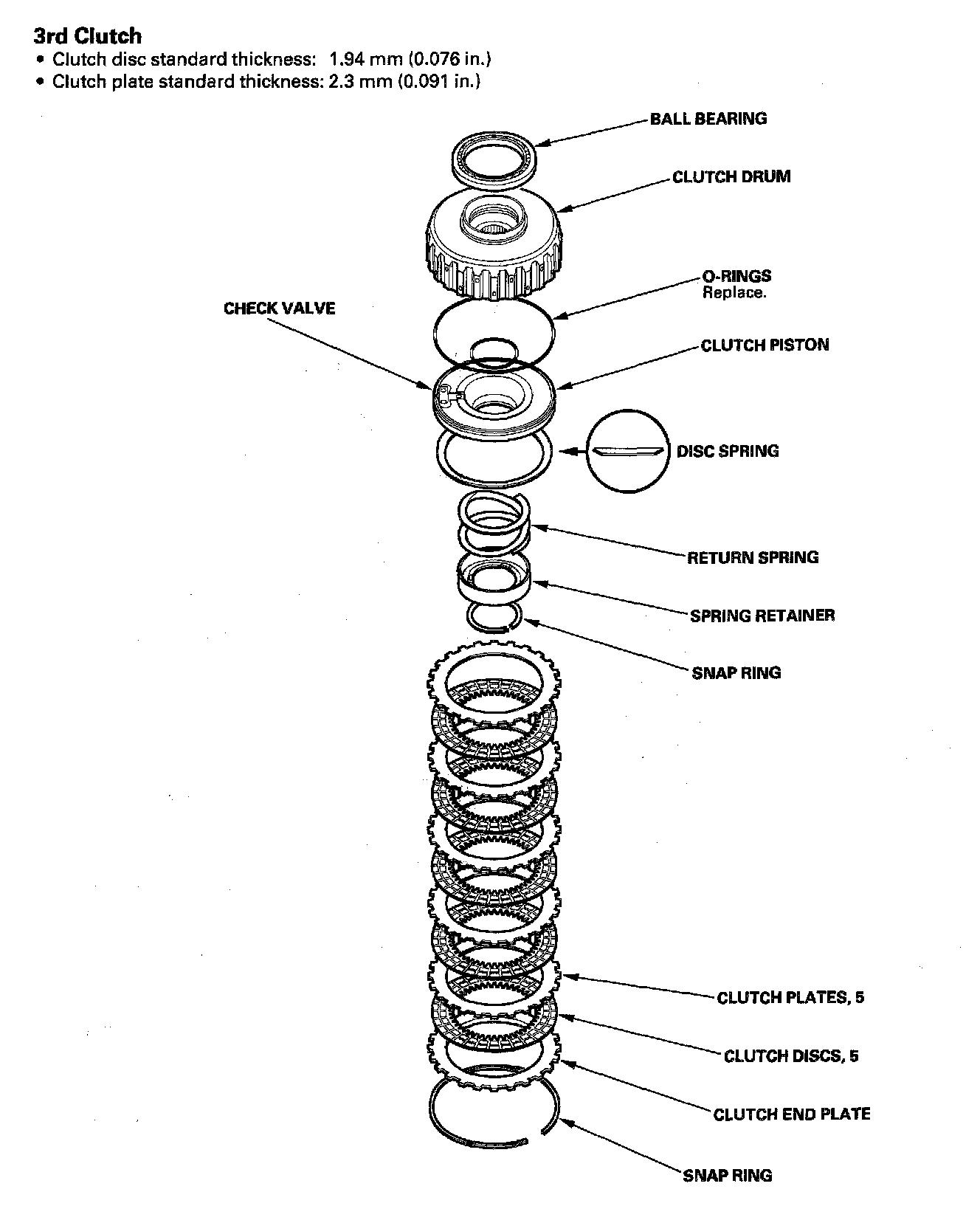

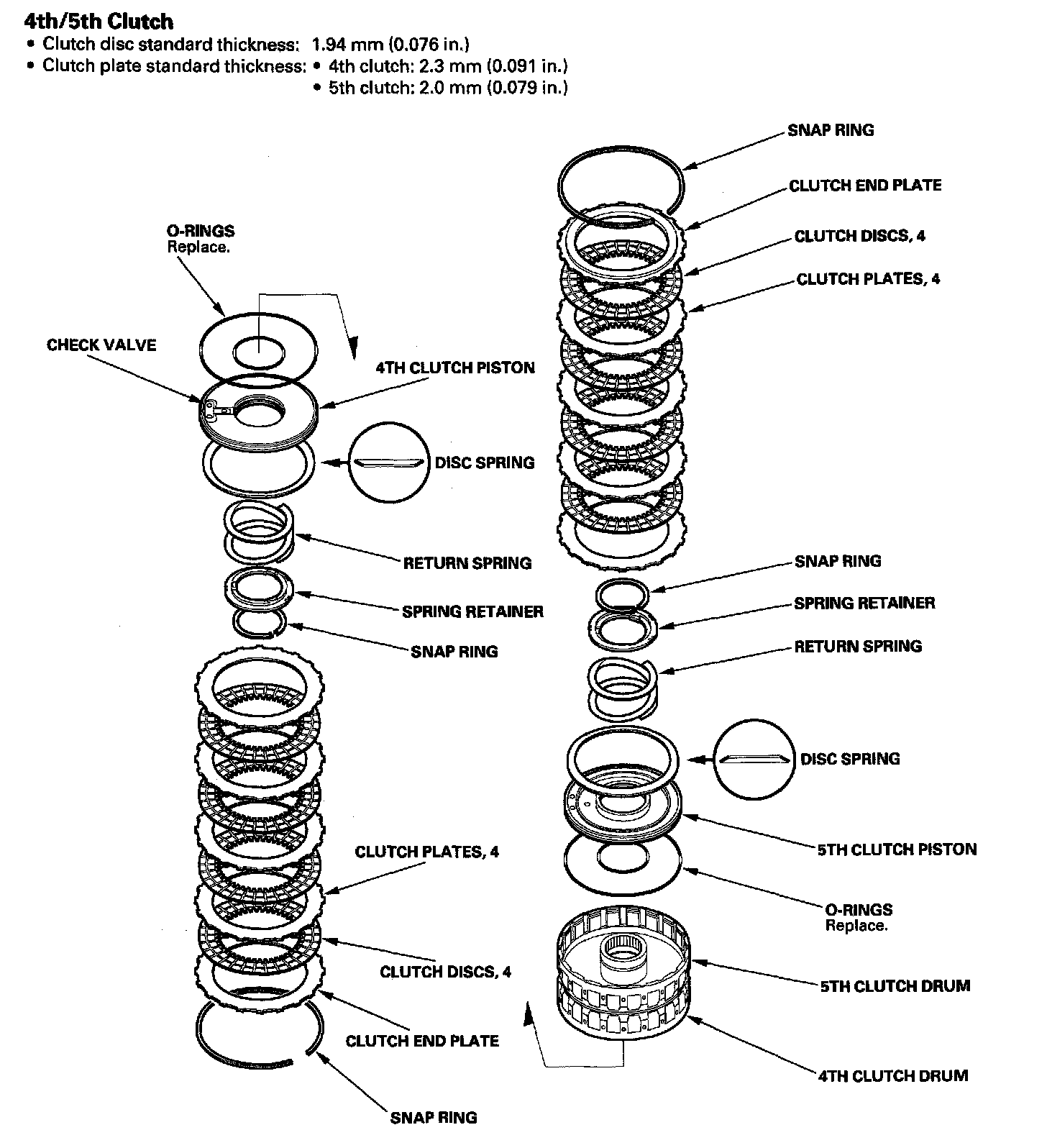

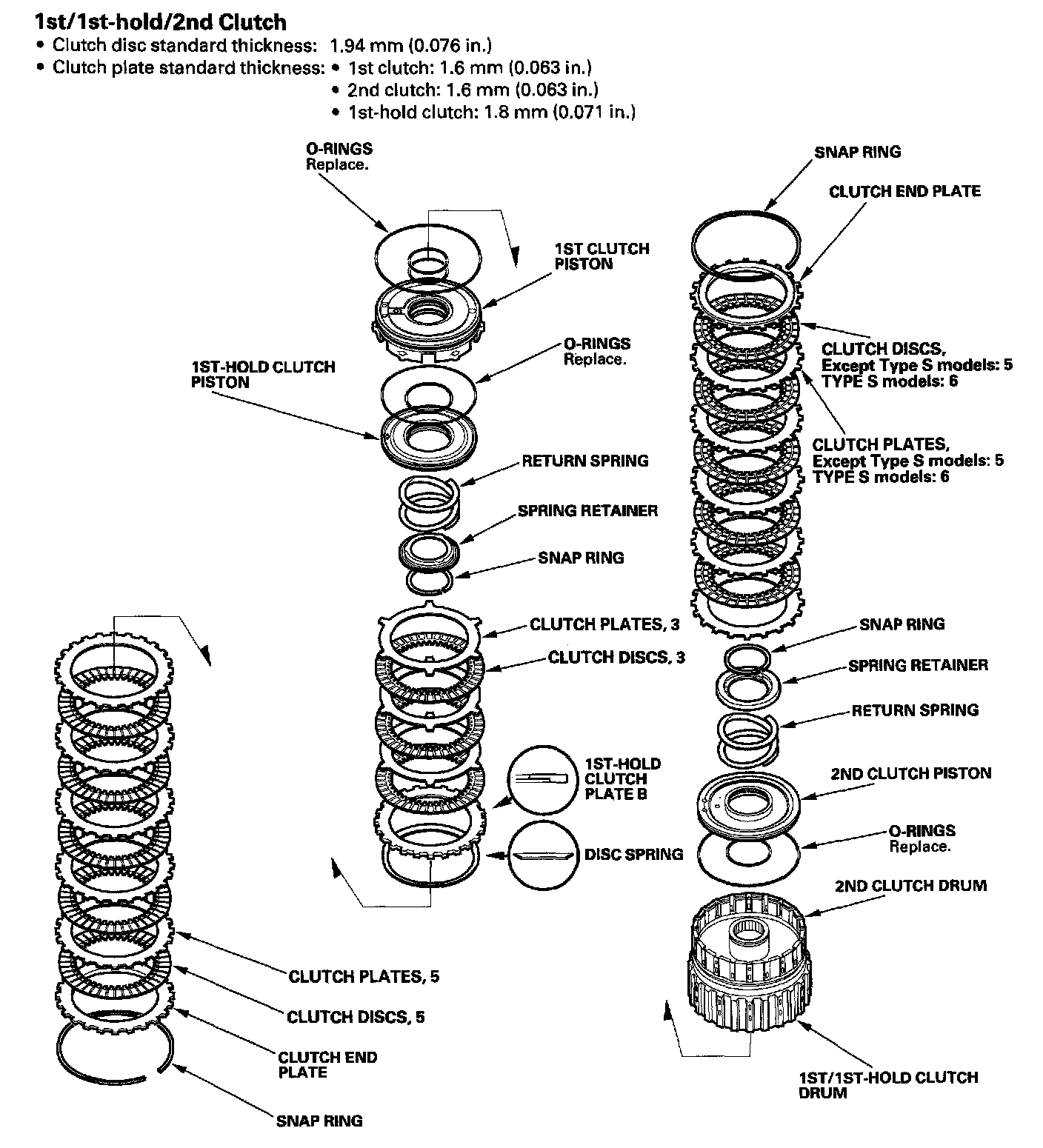

CLUTCH INSPECTION





Part 1 of 3





Part 2 of 3





Part 3 of 3
