Trunk Lid Opener Main Switch Connector End View

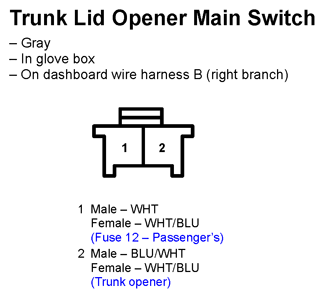

Fig 1: Trunk Lid Opener Main Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
