Wheel Speed Sensor, Right Front Connector End View

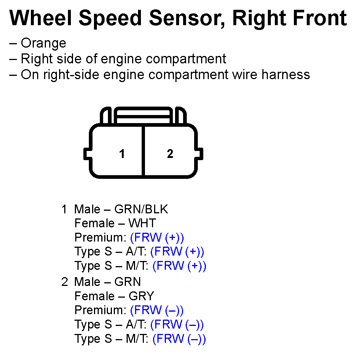

Fig 1: Wheel Speed Sensor, Right Front Connector End View
G11247190Courtesy of AMERICAN HONDA MOTOR CO., INC.
