A/T Range Switch

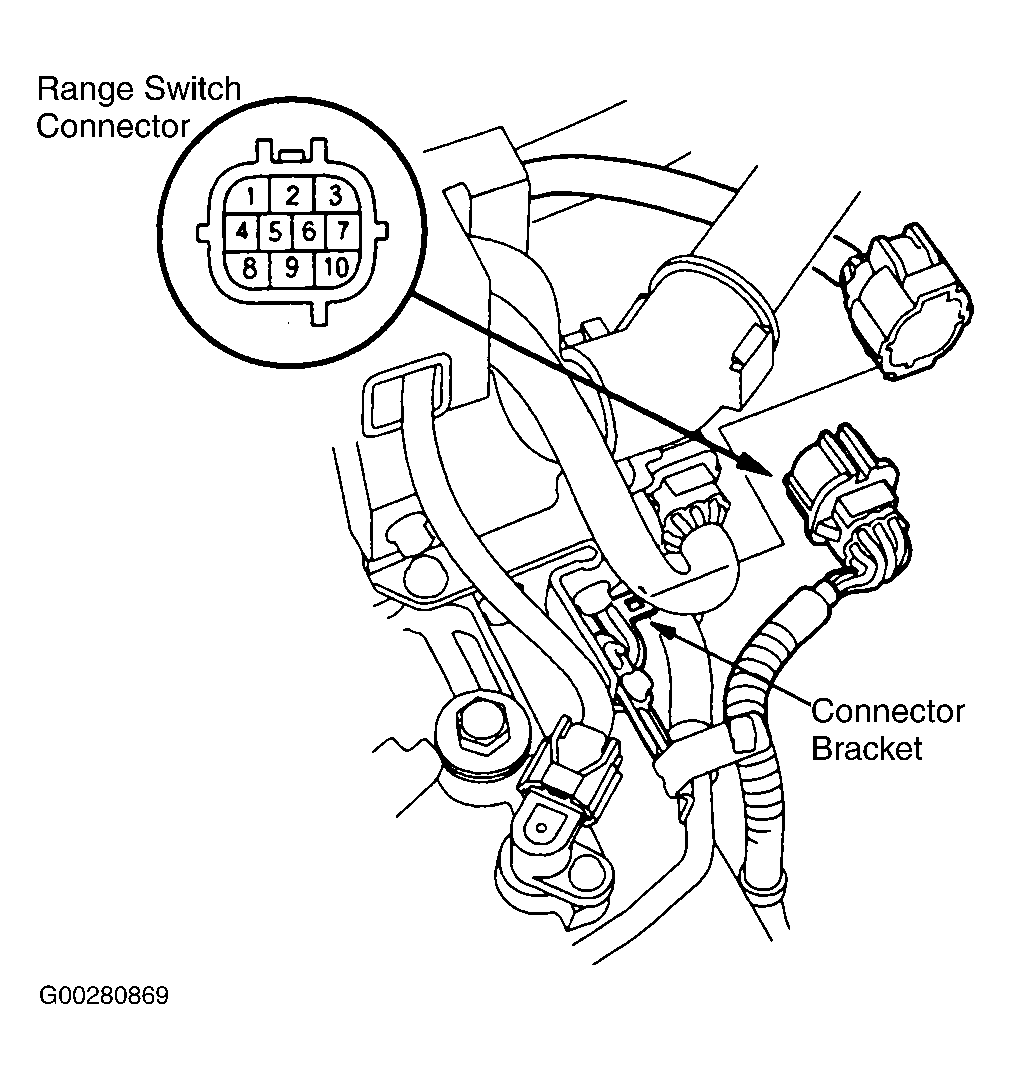

- Disconnect A/T range switch 10-pin harness connector location. Using ohmmeter, check continuity between specified terminals in relation to shift lever position. See Fig 1. See A/T RANGE SWITCH CONTINUITY (3.2CL) table.
- If continuity is not as specified, A/T gear position switch may require adjustment. See A/T RANGE SWITCH under ADJUSTMENTS. If correct continuity cannot be obtained by adjusting A/T range switch, replace A/T range switch.
A/T RANGE SWITCH CONTINUITY (3.2CL)
| Shift Lever Position | Check Continuity Between Terminals No. |
|---|---|
| P | 1, 3 & 10 |
| R | 3 & 9 |
| N | 1, 3 & 8 |
| D5 | 2, 3 & 7 |
| D4 | 2, 3 & 6 |
| D3 | 2, 3 & 5 |
| 2 & 1 | 3 & 4 |
