Cruise Control Main Switch

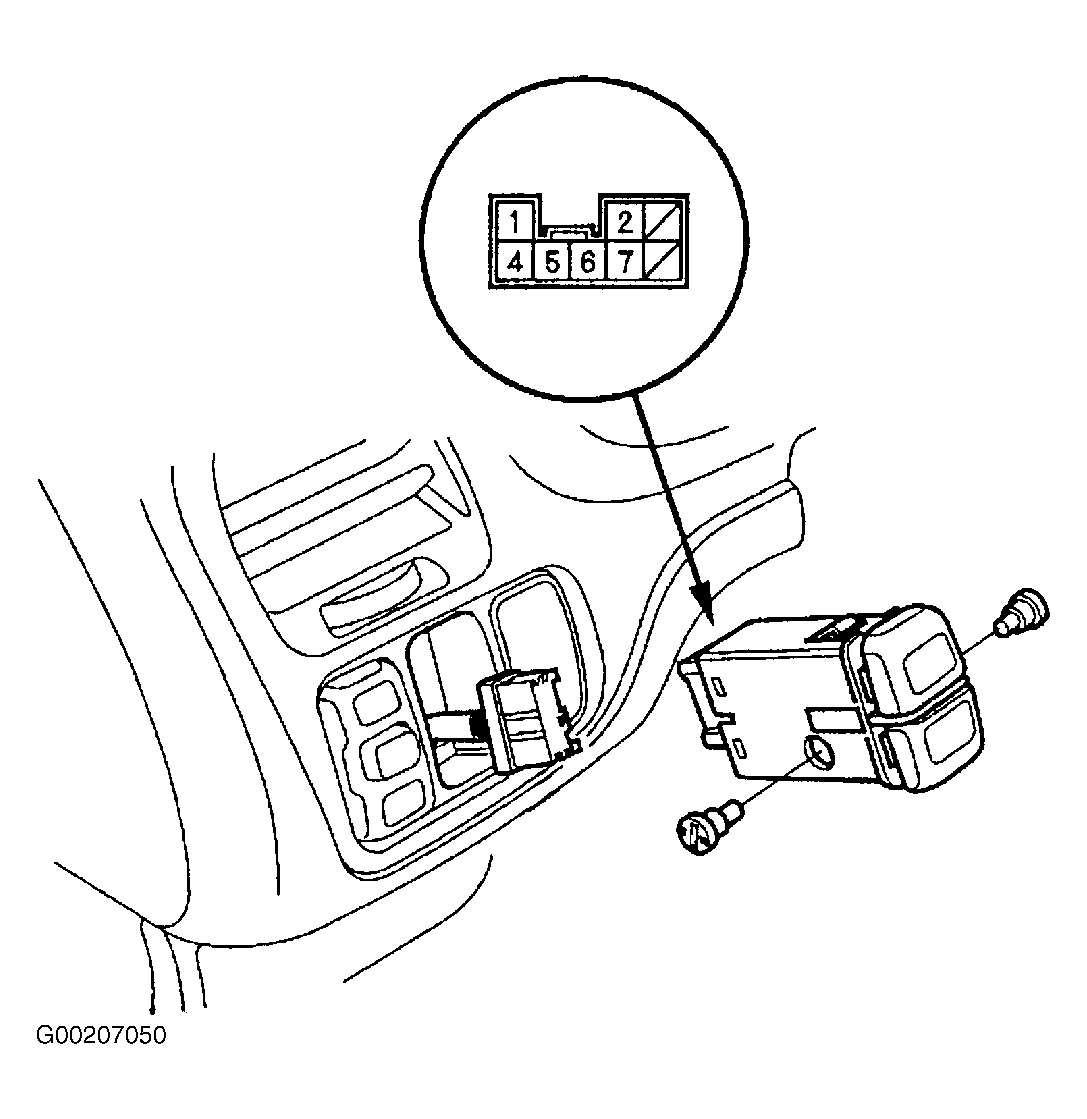

- Remove Traction Control System (TCS) and cruise control main switch from driver's switch panel. Disconnect cruise control main switch 8-pin connector. With switch in OFF position, continuity should exist between cruise control main switch terminals No. 1 and 2, and between terminals No. 4 and 7. See Fig 1.
- With cruise control main switch in ON position, continuity should exist between cruise control main switch terminals No. 1 and 2, and between terminals No. 4, 5 and 7. See WIRING DIAGRAMS . If continuity is not as specified, replace TCS/cruise control main switch.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
