Hazard Warning Switch Connector End View

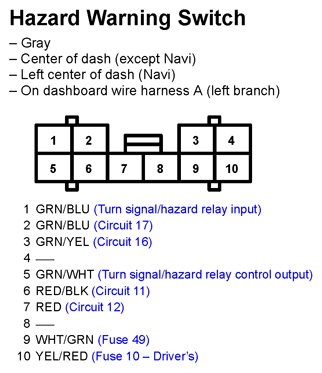

Fig 1: Hazard Warning Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
