Trip Meter Select/Reset Switch Connector End View

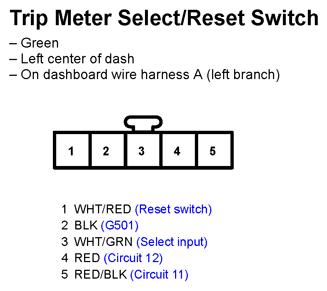

Fig 1: Trip Meter Select/Reset Switch Connector End View
G11247256Courtesy of AMERICAN HONDA MOTOR CO., INC.
