Steering Linkage and Gearbox Inspection

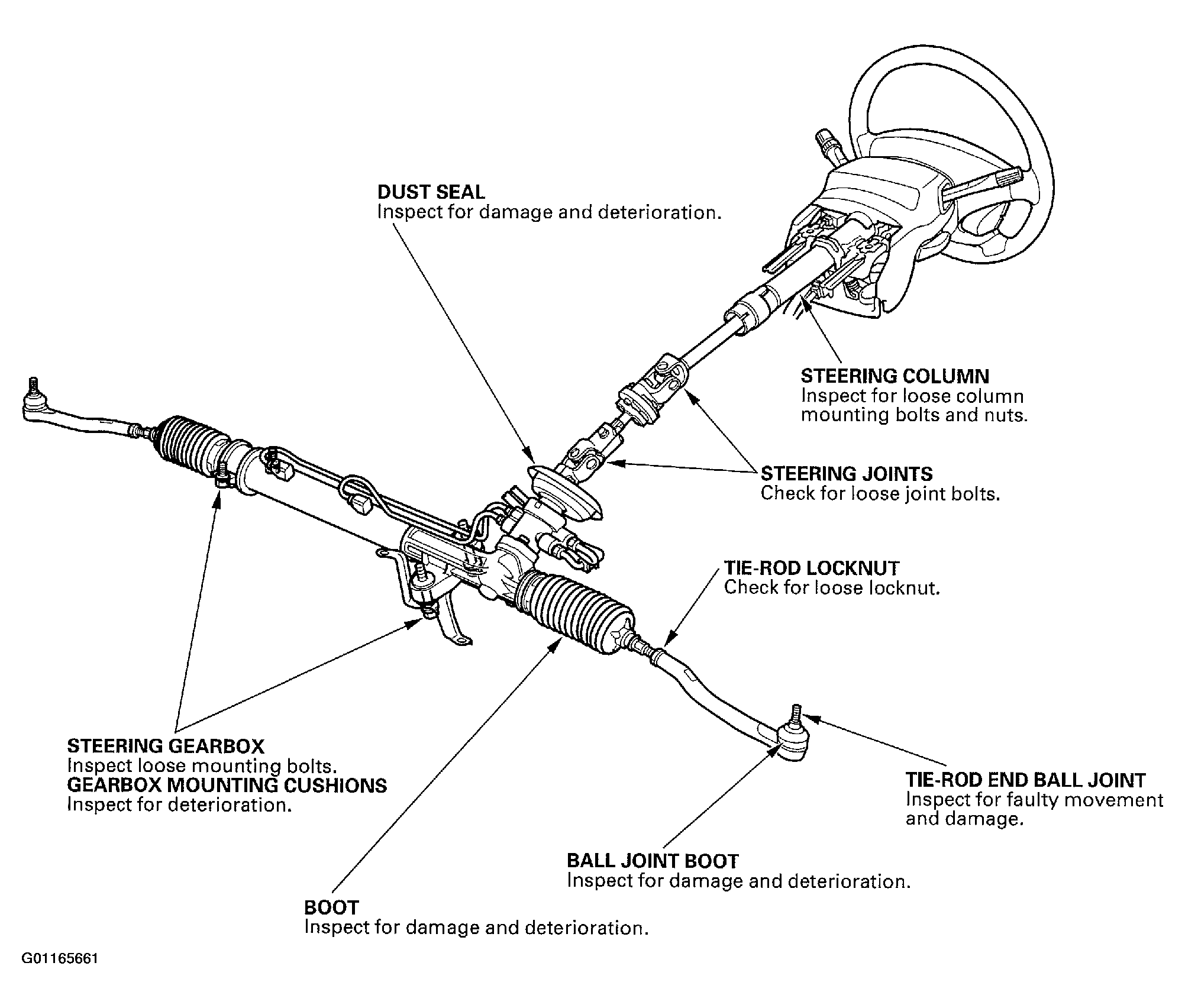

Fig 1: Inspecting Steering Linkage & Gearbox
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
