With Navigation System

  1. Discharge the static electricity (which accumulated on you when you removed the climate control unit) by touching the door striker or other body parts.
  2. Remove the self-tapping screws, then carefully separate the climate control unit display (A) and control unit (B). Do not kink or pull on the wires between the display and the control unit. Do not touch the electronic components on the printed circuit board in the control unit.

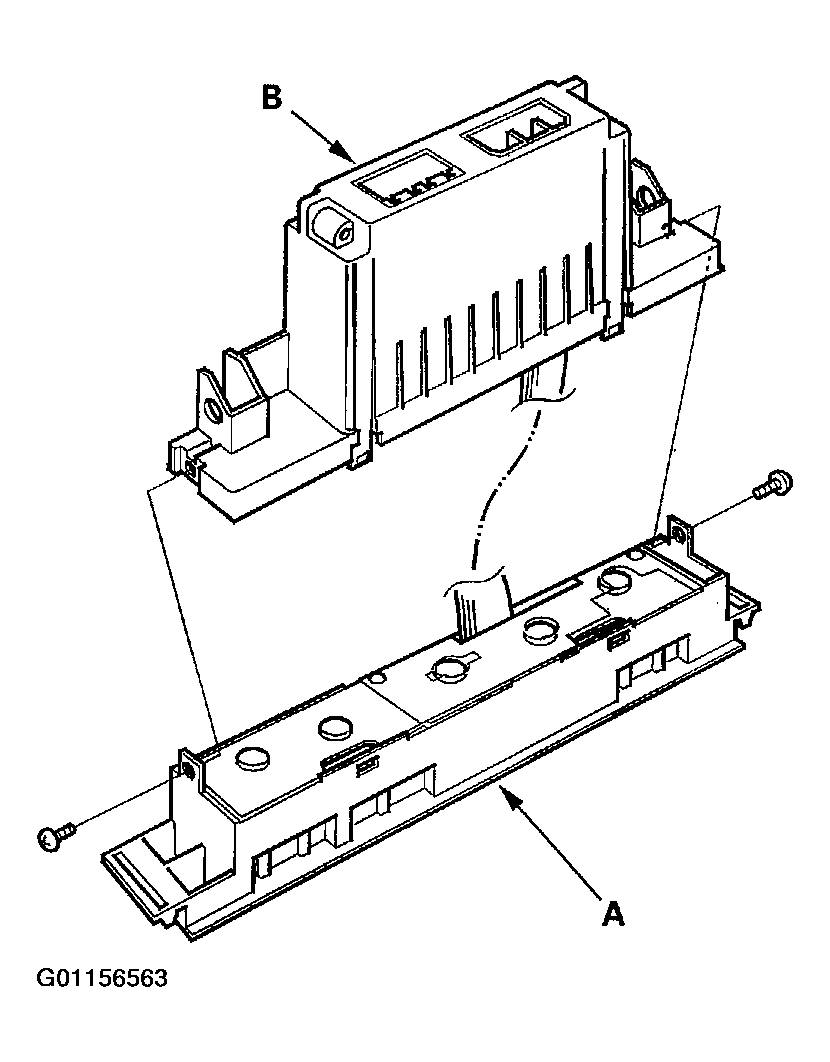

    Fig 1: Separating The Climate Control Unit Display And Control Unit
    G01156563Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bulb(s) with a flat-tip screwdriver.

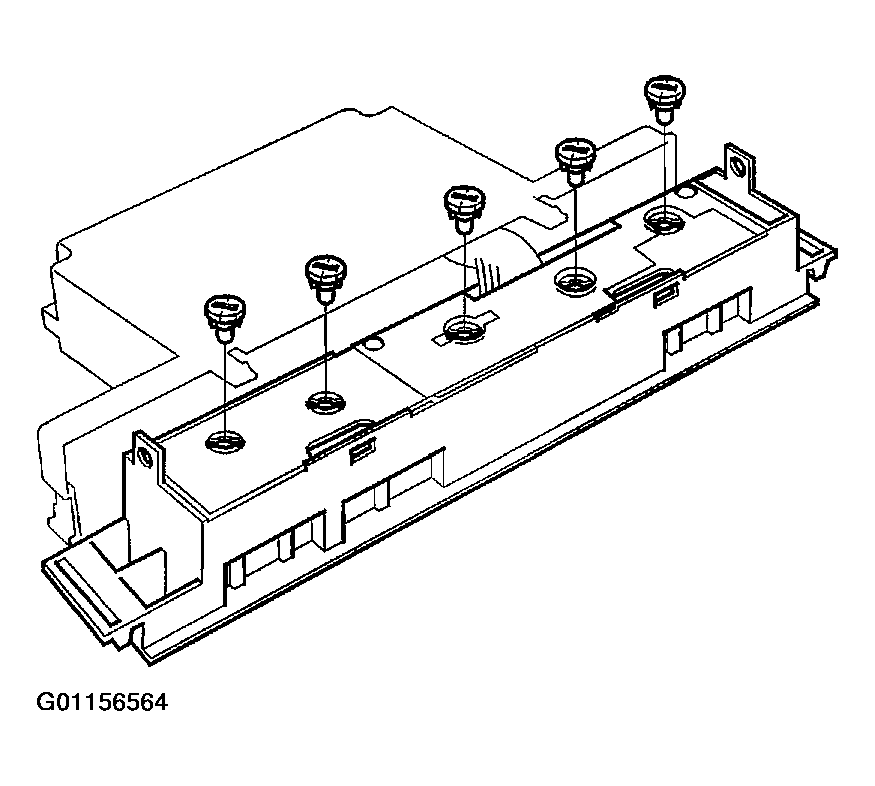

    Fig 2: Removing The Bulbs
    G01156564Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the bulb in the reverse order of removal.
