Shift Lever Disassembly/Reassembly

Apply silicone grease to these parts:

• Movable parts of the shift lever.
• Movable parts of the shift lock/reverse lock mechanism.
• Sliding surfaces on the opening of the indicator panel and panel holder.
• Sliding surfaces on the detent plate.
• Contact surfaces between of the shift lever assembly and the shift lock stop.
• Detent plunger and detent spring.

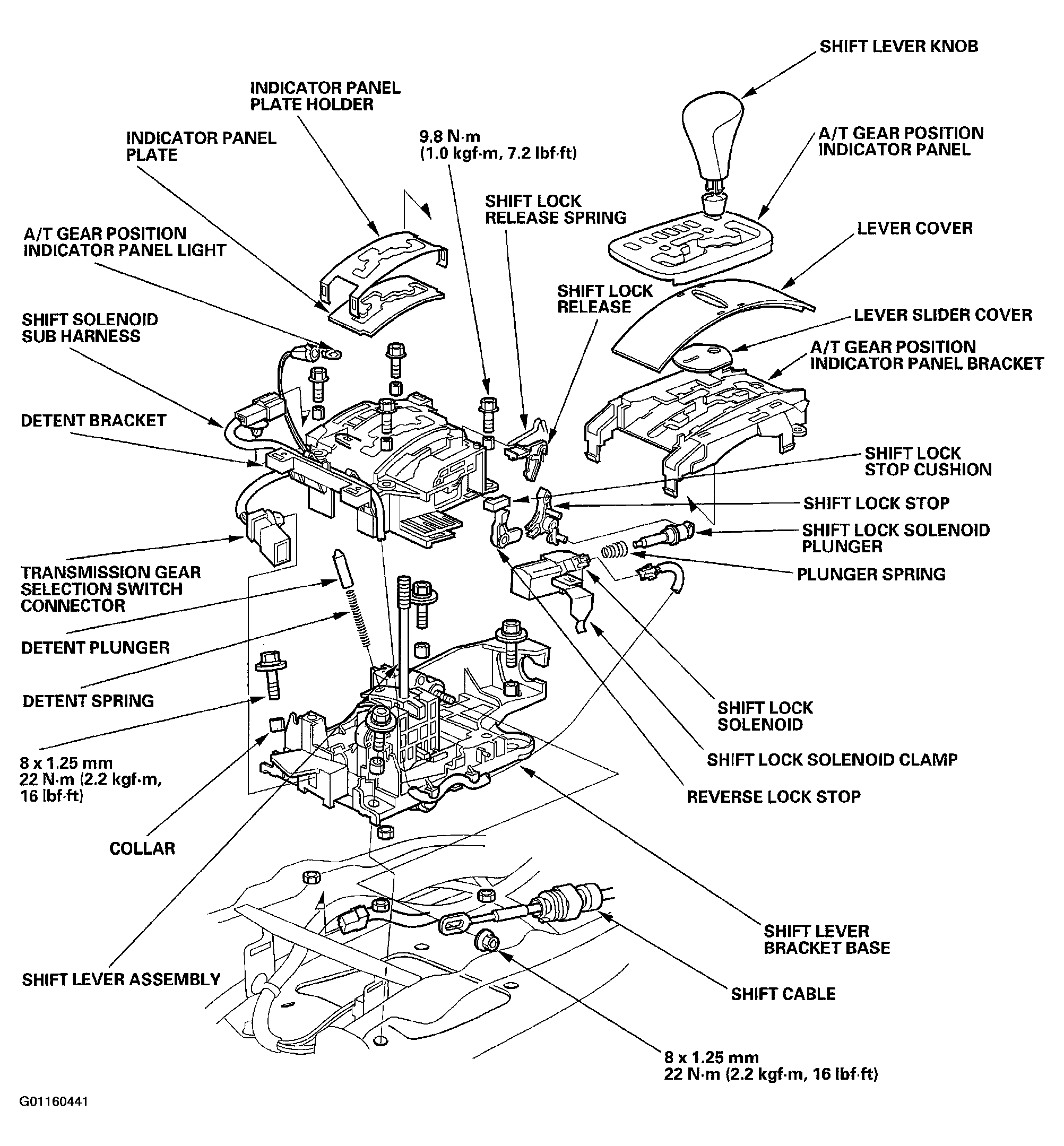

  Fig 1: Exploded View Of Shift Lever Disassembly/Reassembly

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
