Alarm Module, (Vehicle Antitheft)

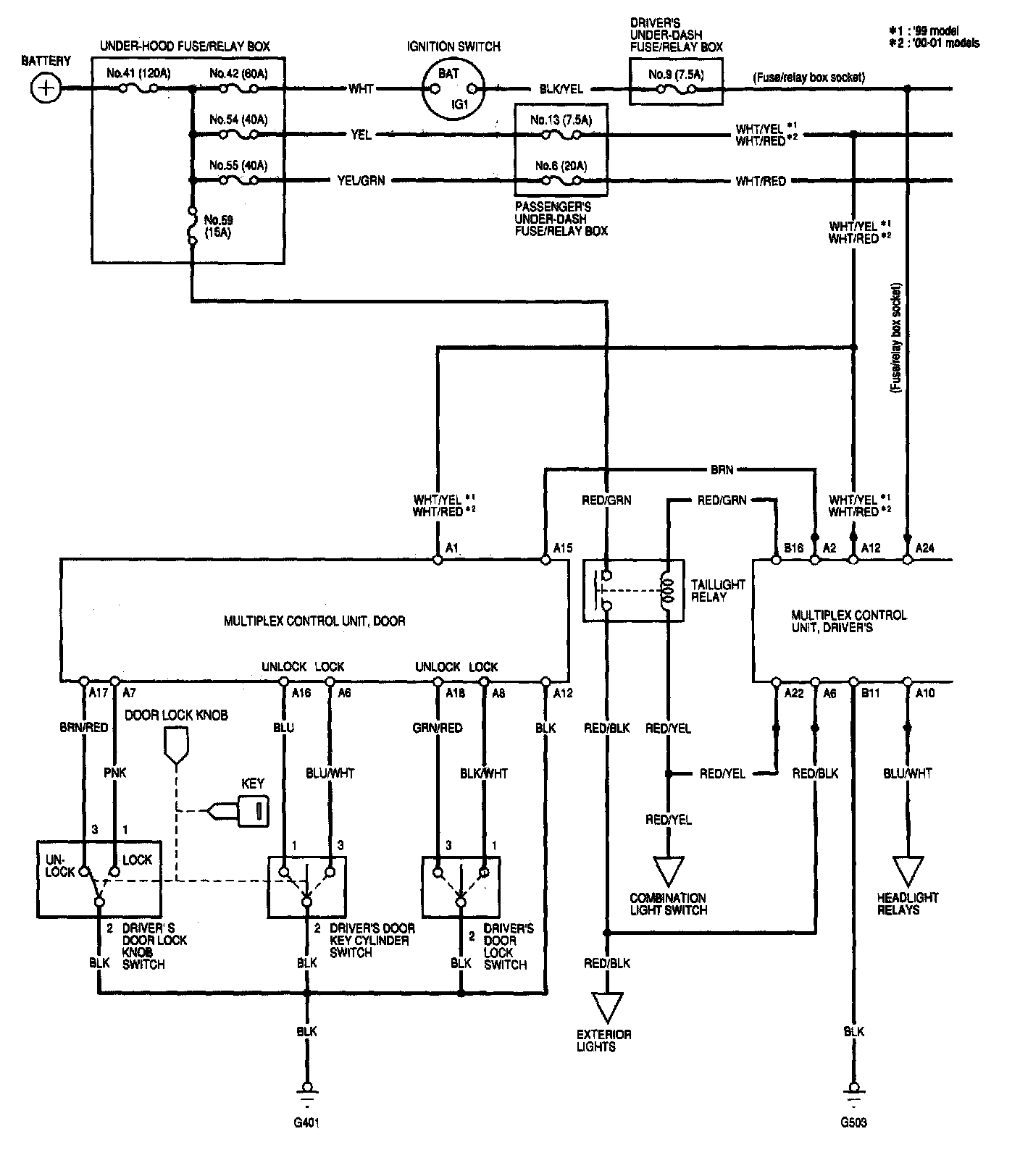

Keyless Entry / Security Alarm System - Circuit 1:

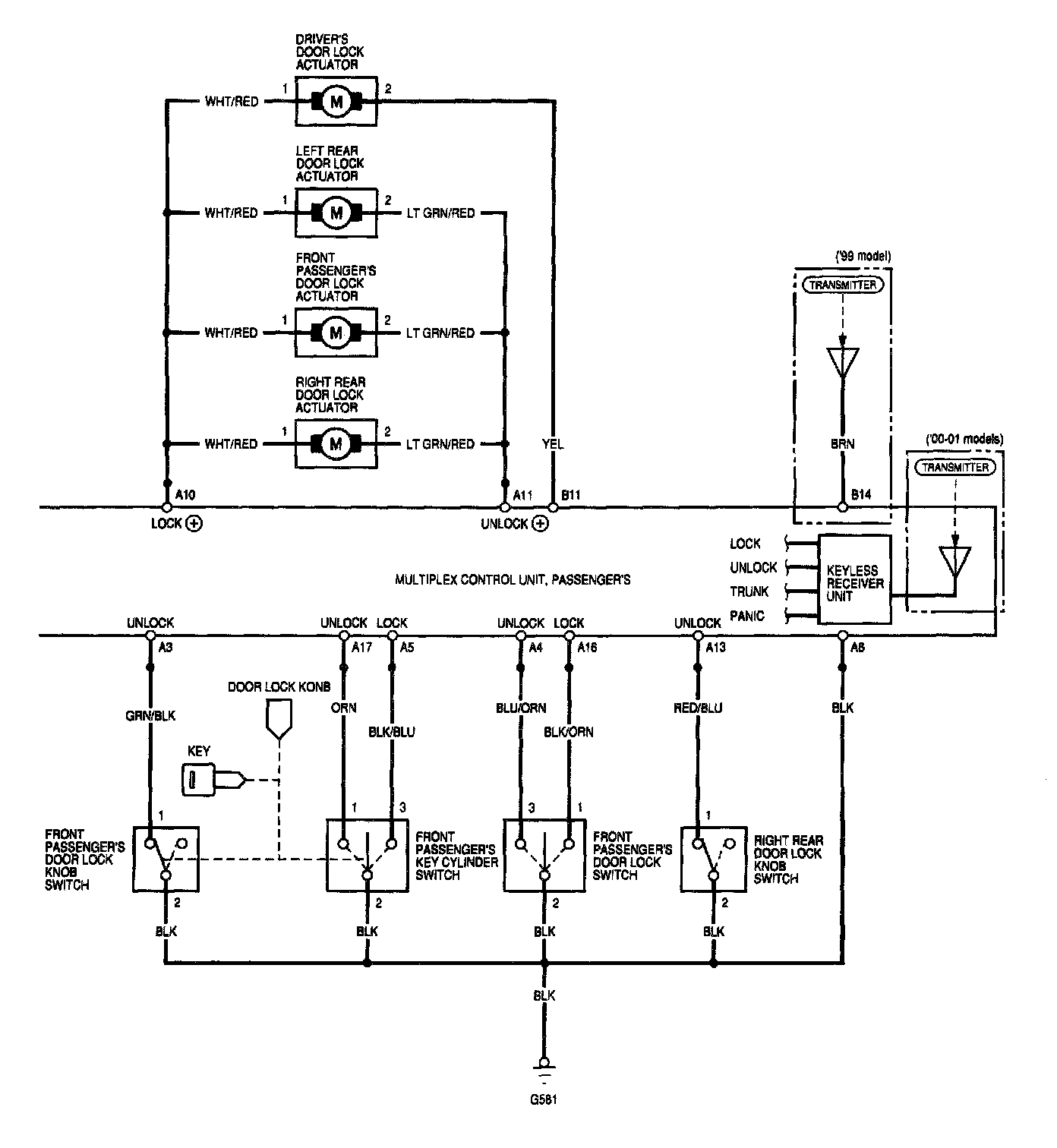

Keyless Entry / Security Alarm System - Circuit 2:

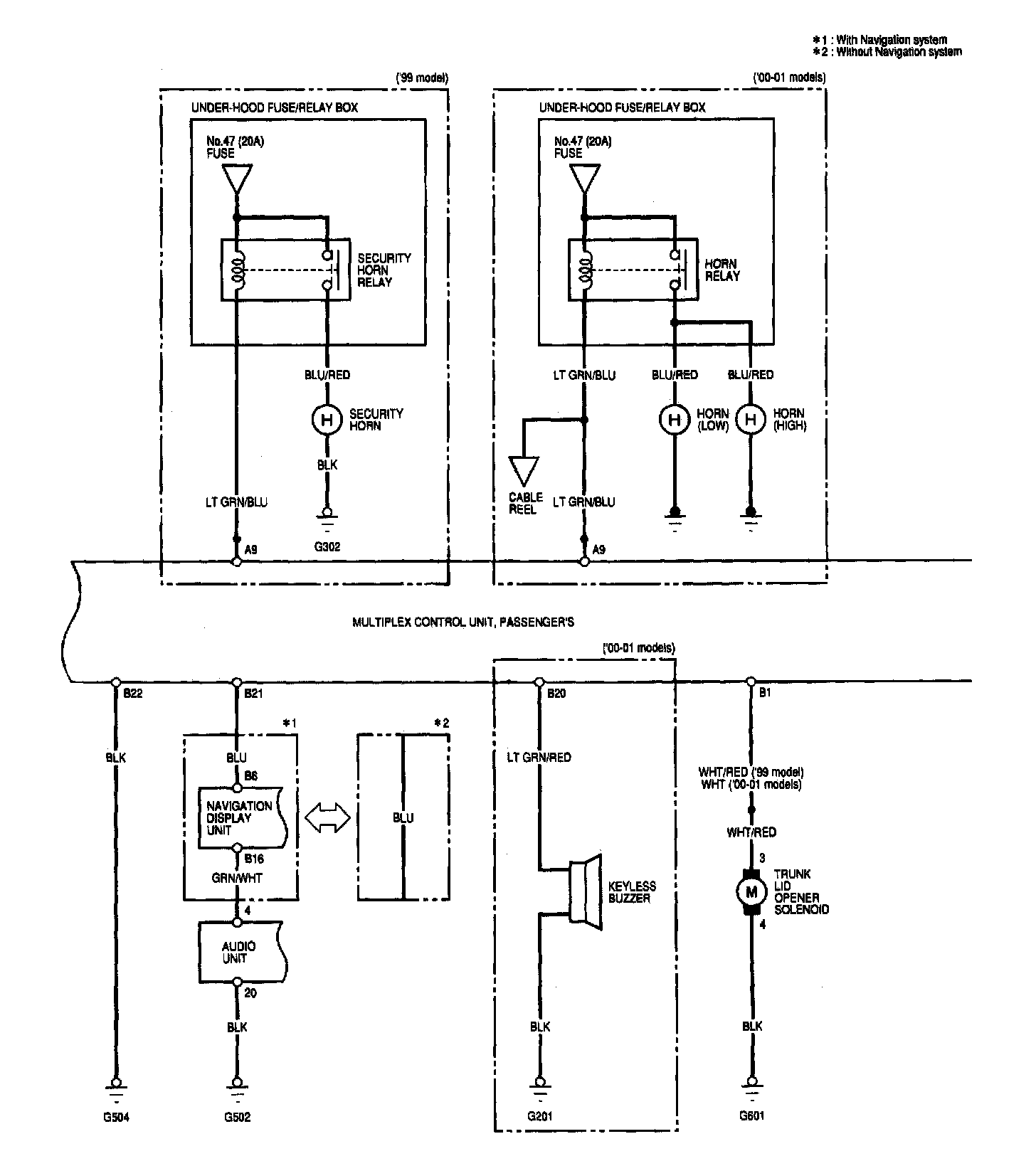

Keyless Entry / Security Alarm System - Circuit 3:

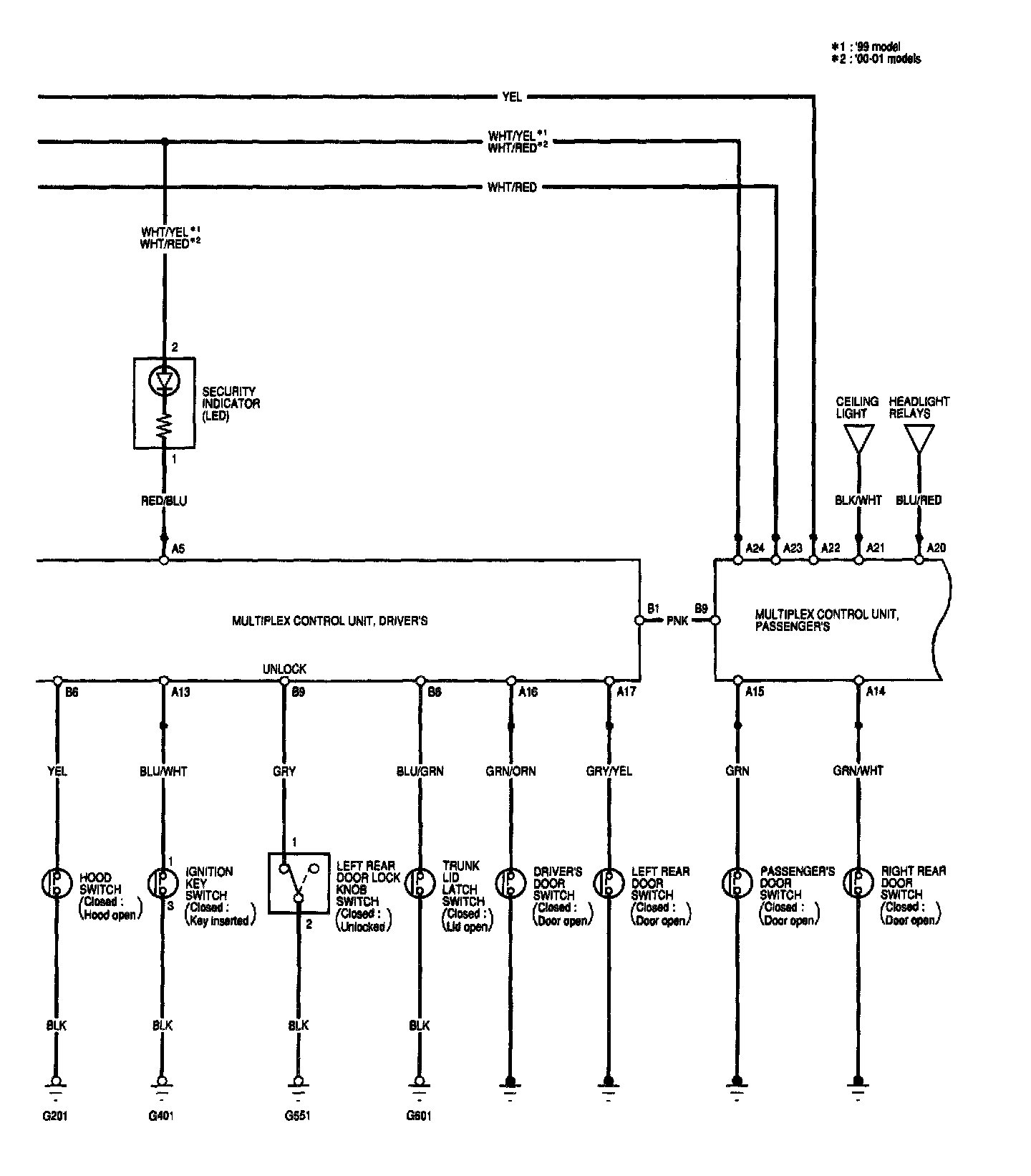

Keyless Entry / Security Alarm System - Circuit 4:
