Connector Views

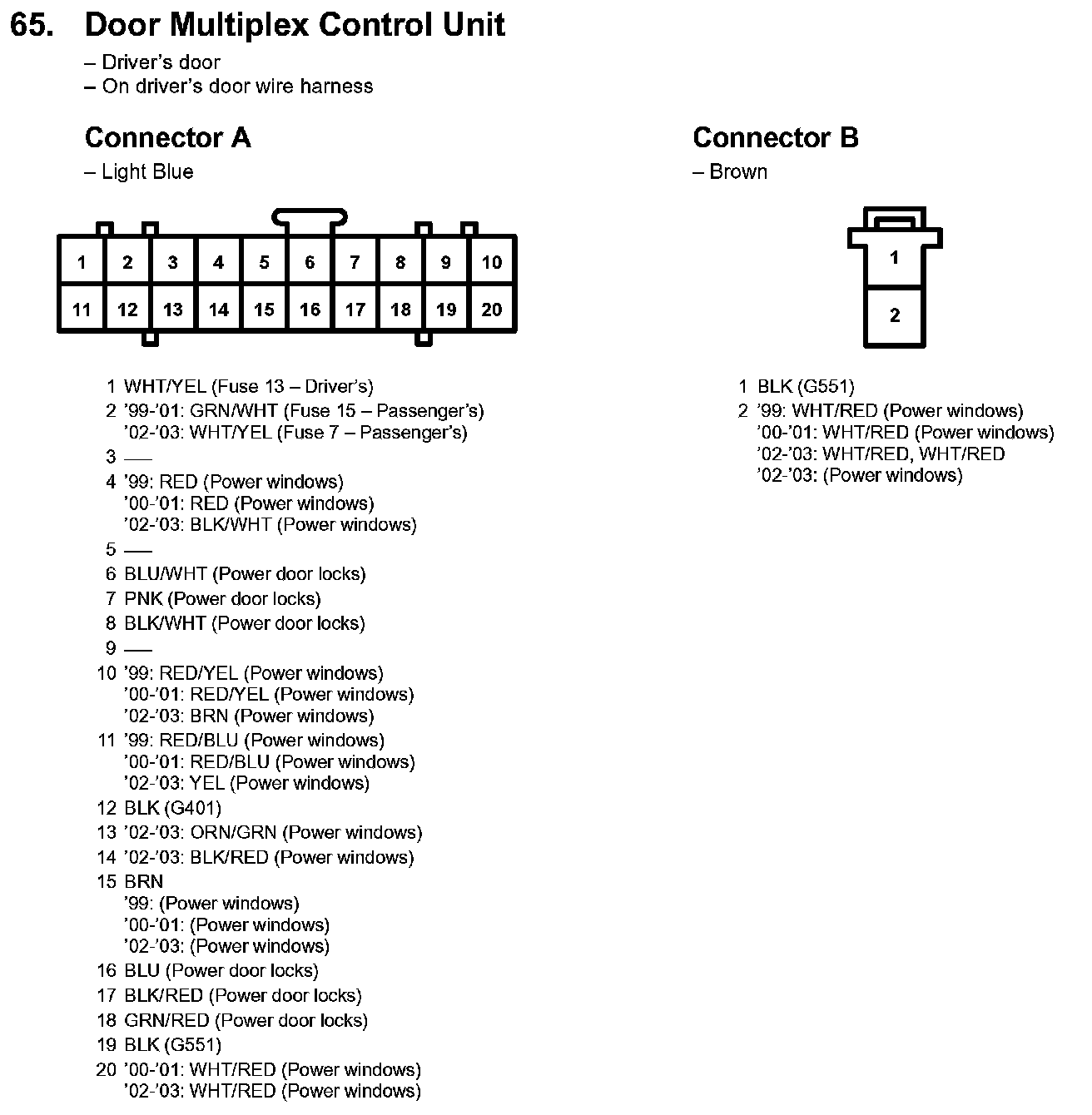

65. Door Multiplex Control Unit:

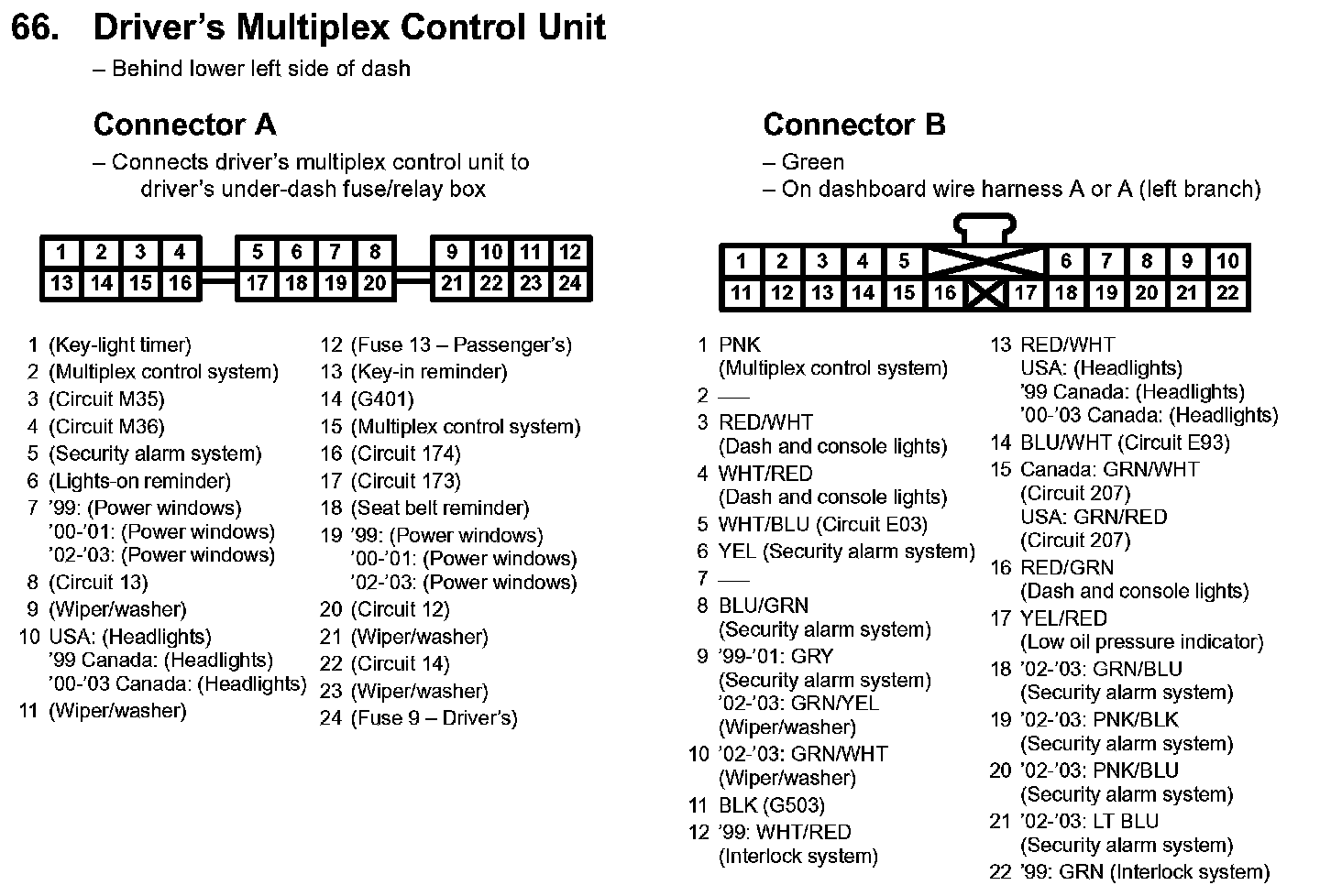

66. Driver's Multiplex Control Unit:

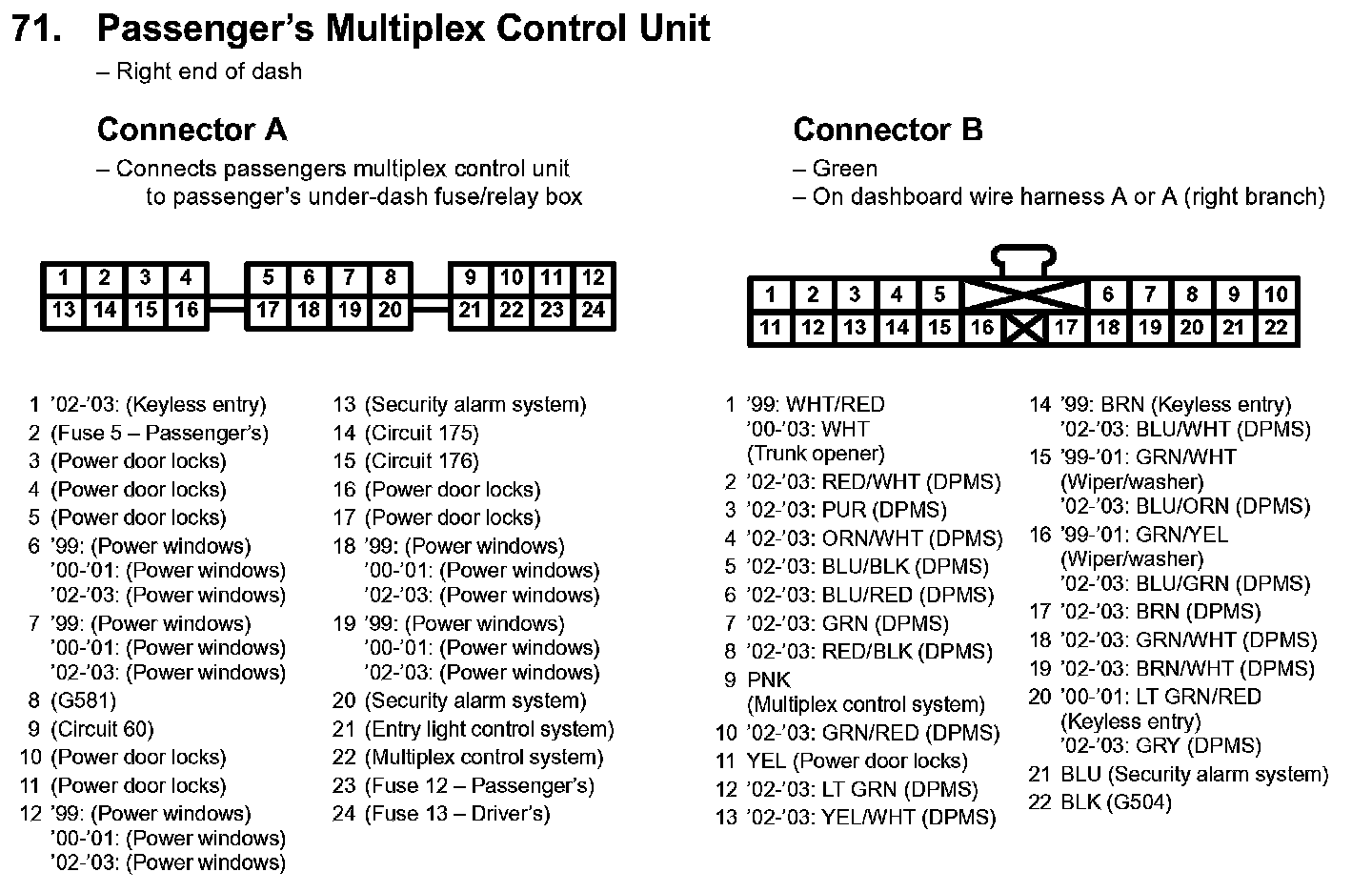

71. Passenger's Multiplex Control Unit:
