Information Bus: Locations

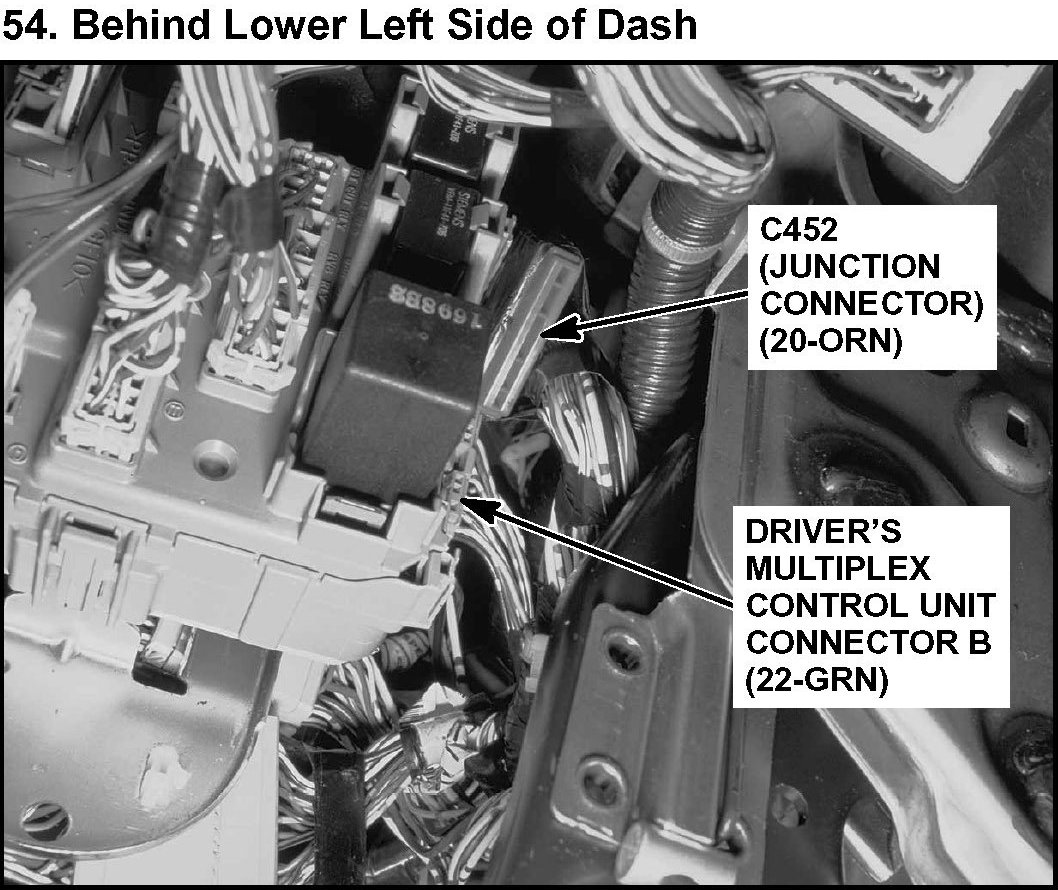

54. Behind Lower Left Side Of Dash:

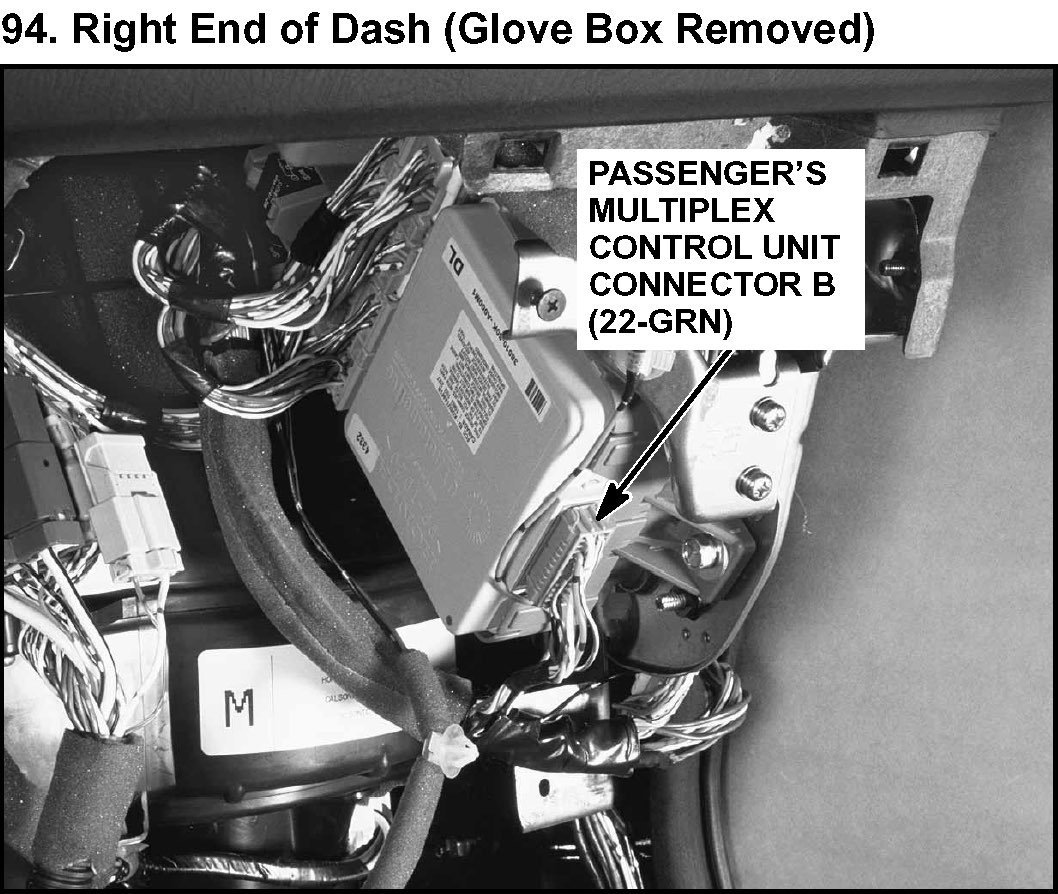

94. Right End Of Dash (Glove Box Removed):

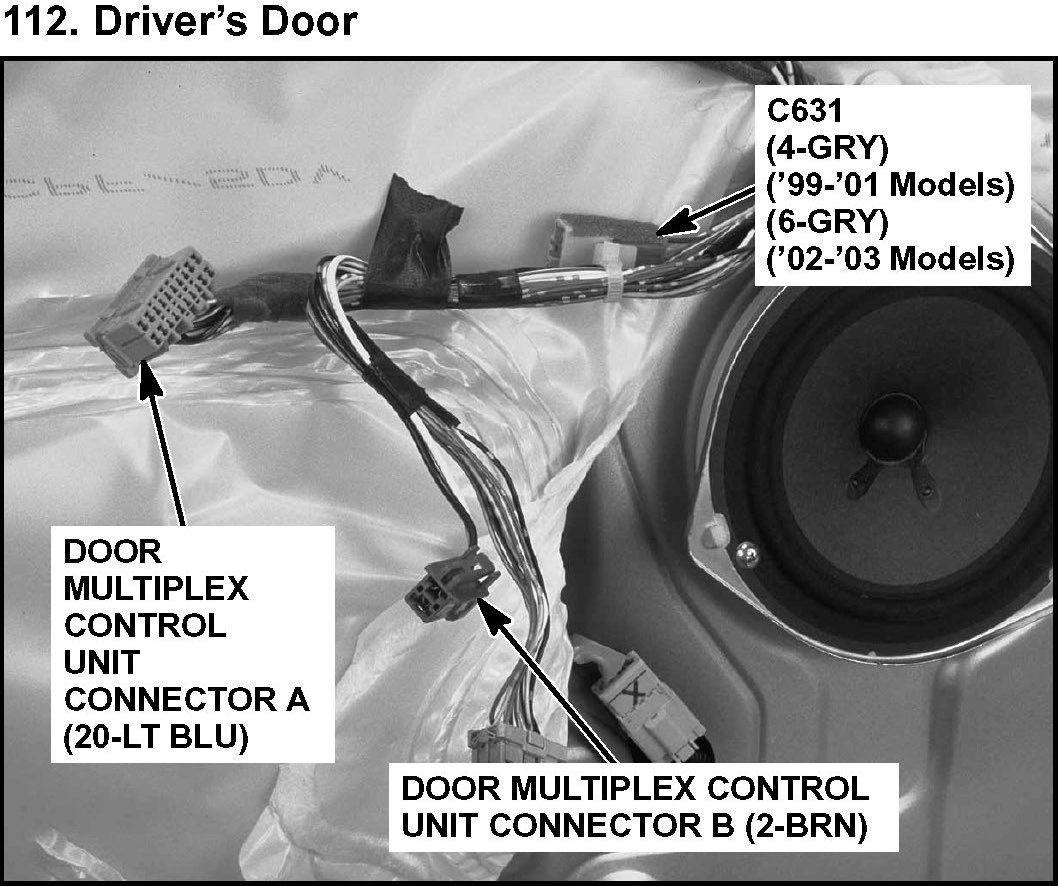

112. Driver's Door:
