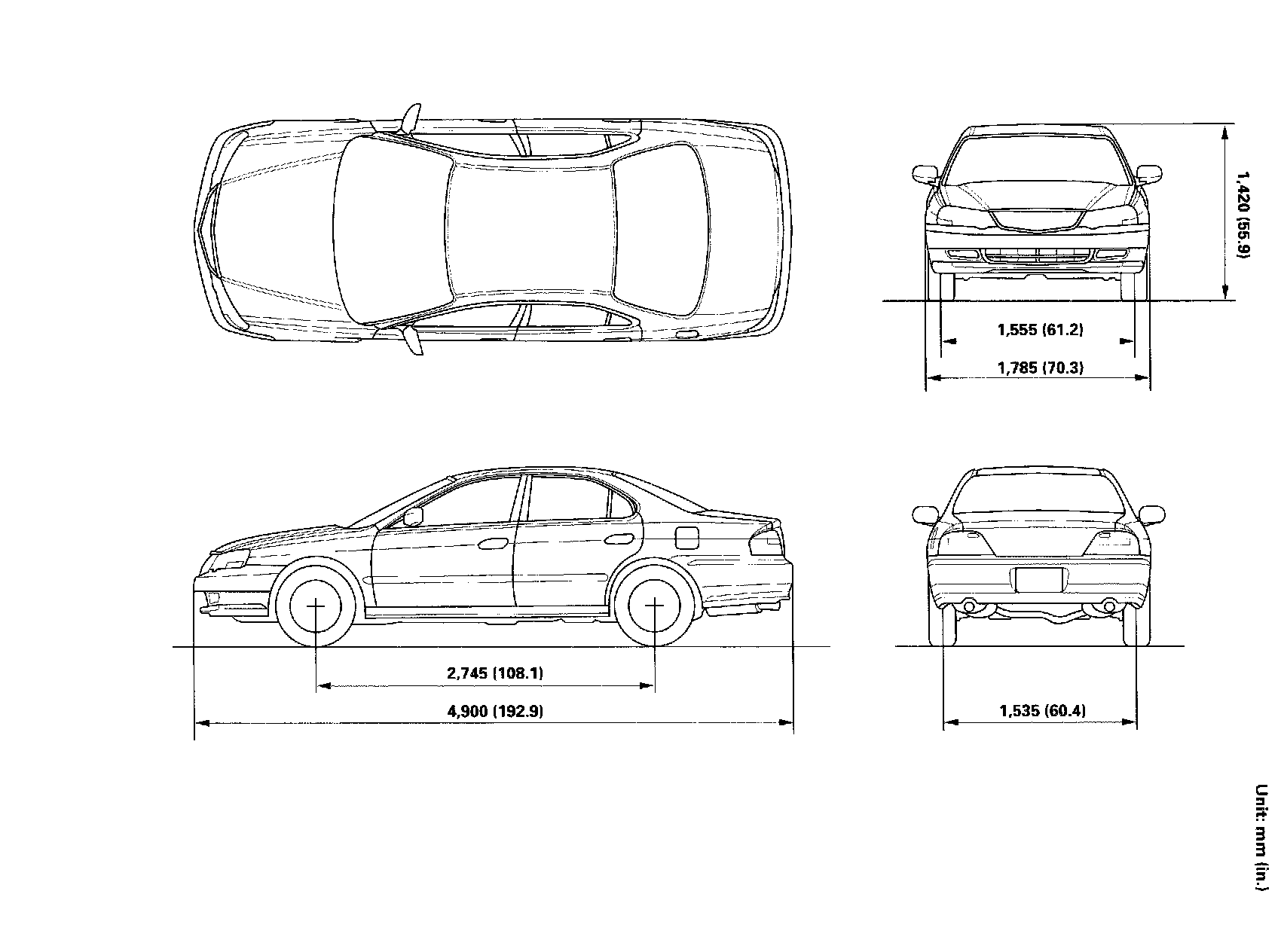

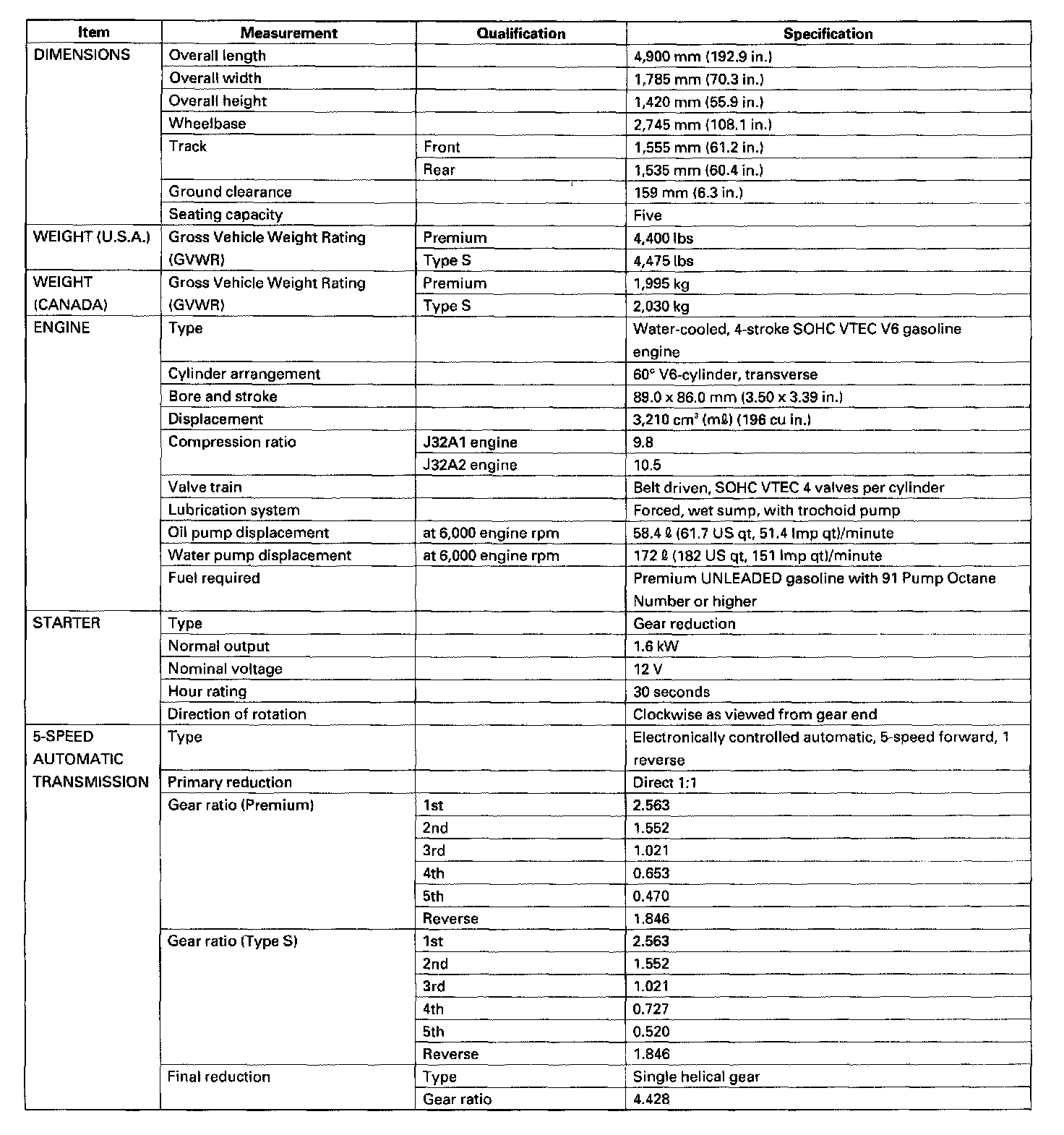

General Specifications

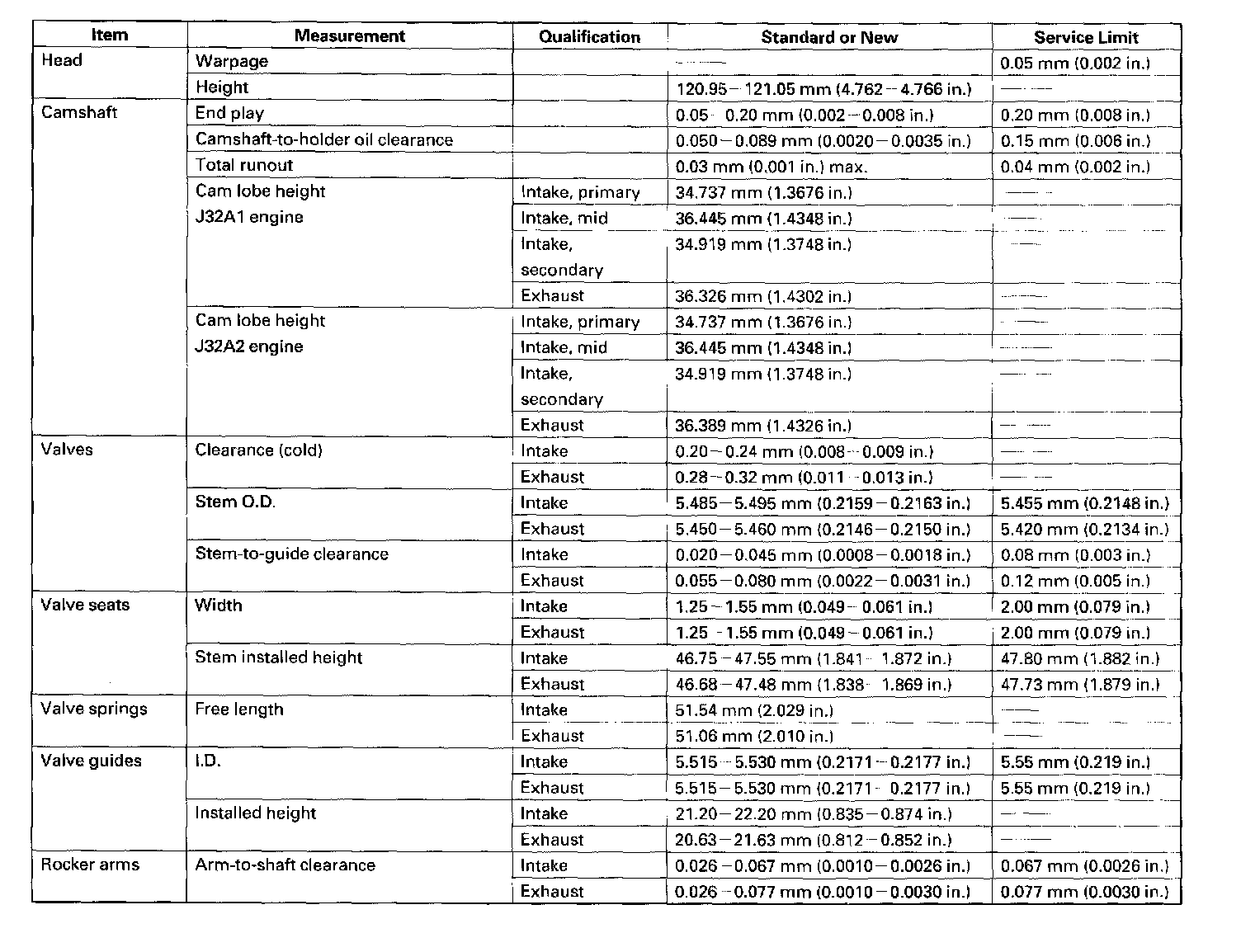

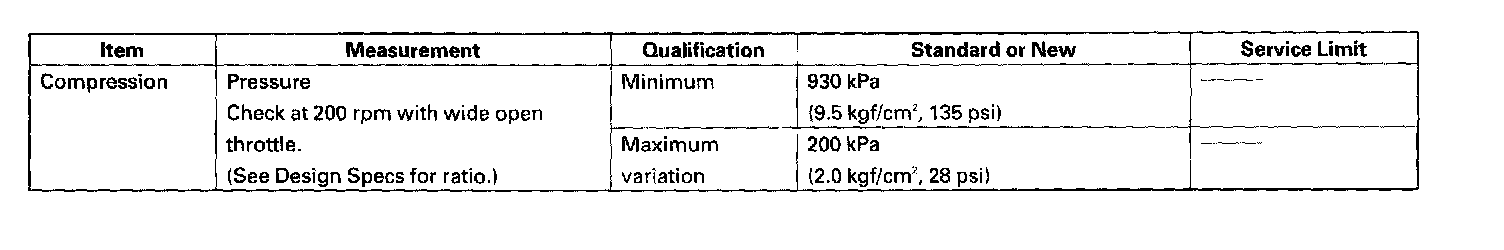

Cylinder Head Specifications:

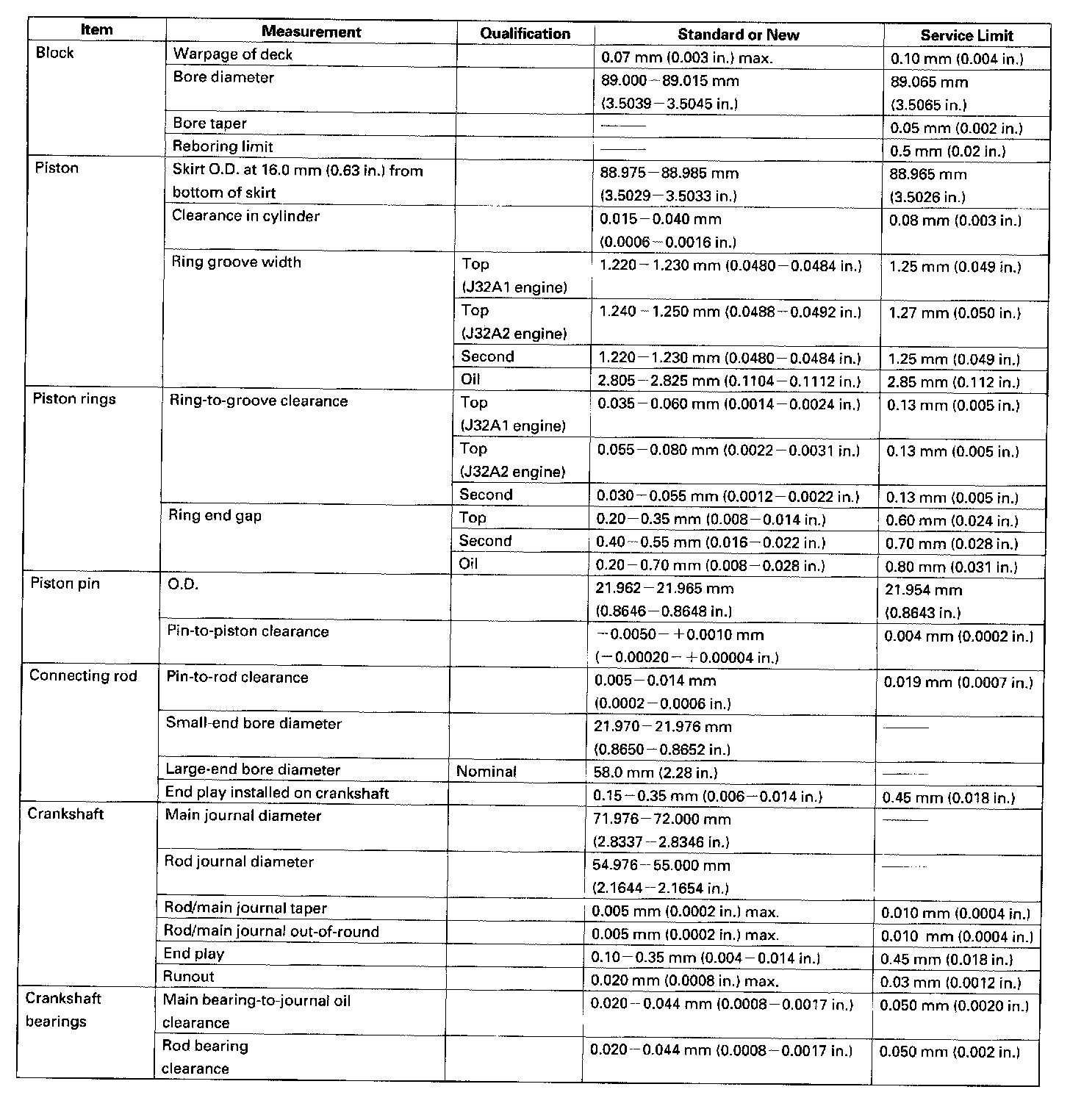

Cylinder Block Specifications:

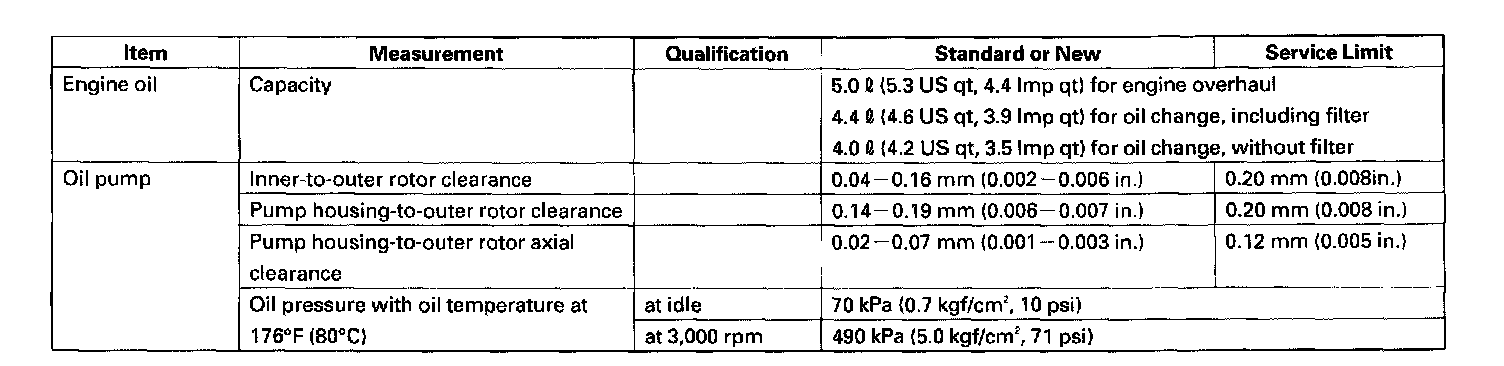

Engine Lubrication:

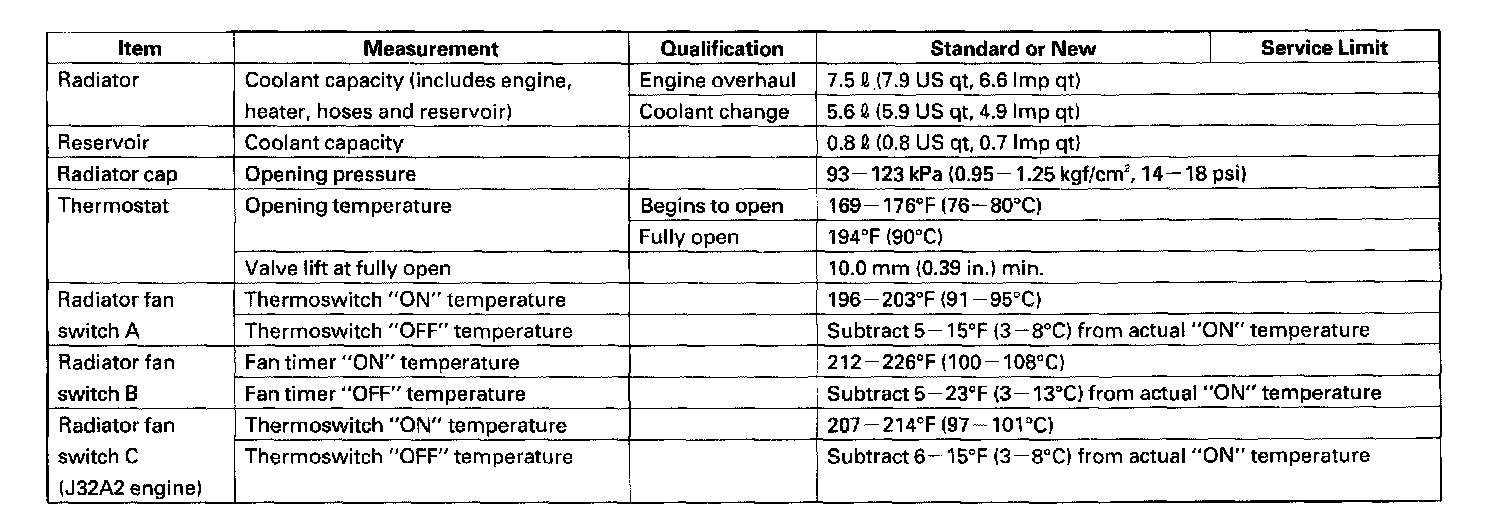

Engine Cooling System:

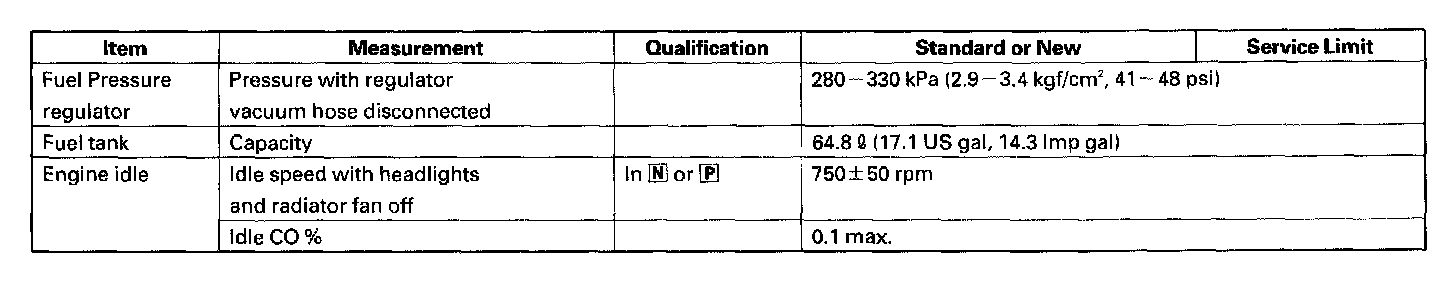

Fuel System:

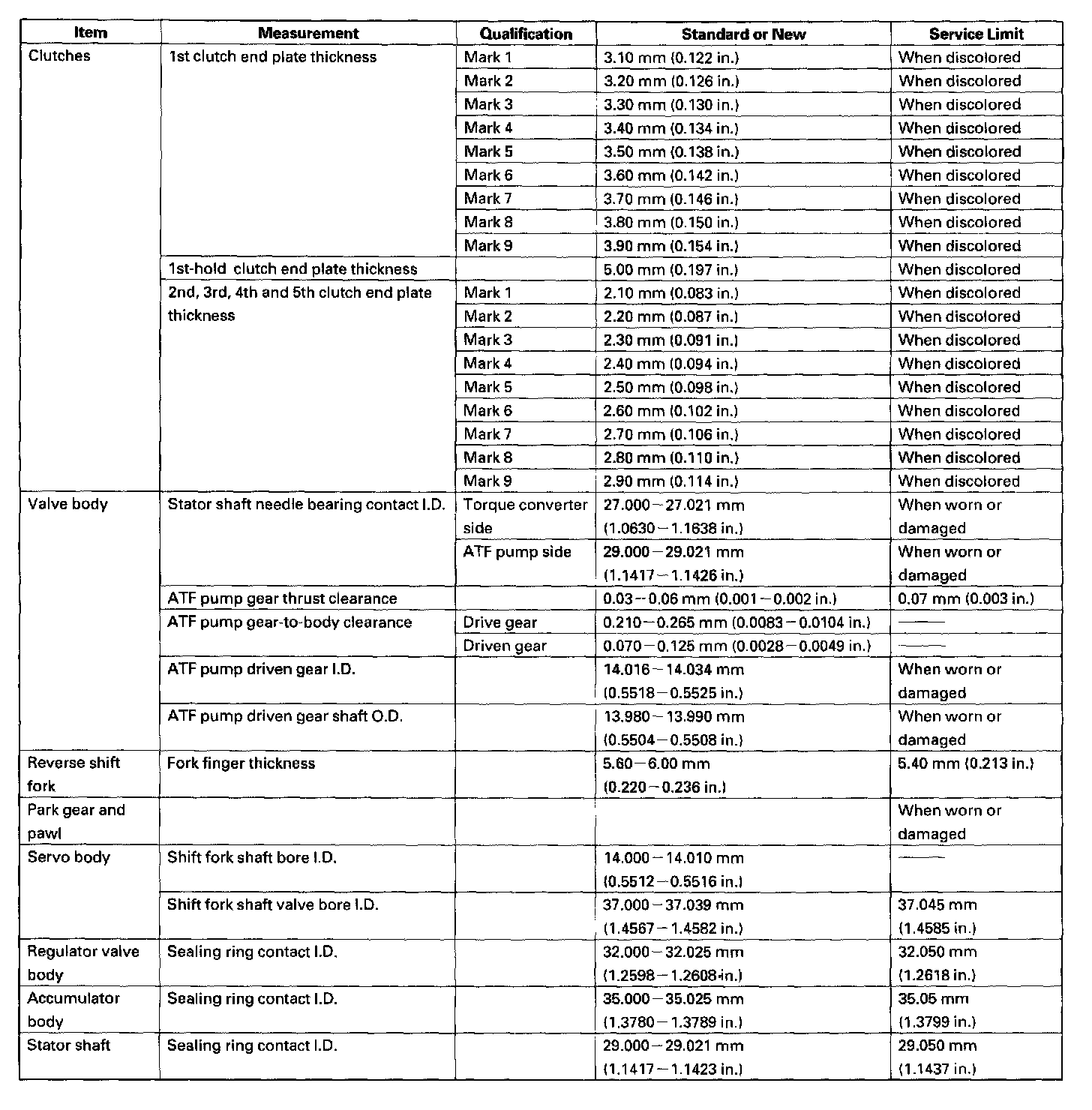

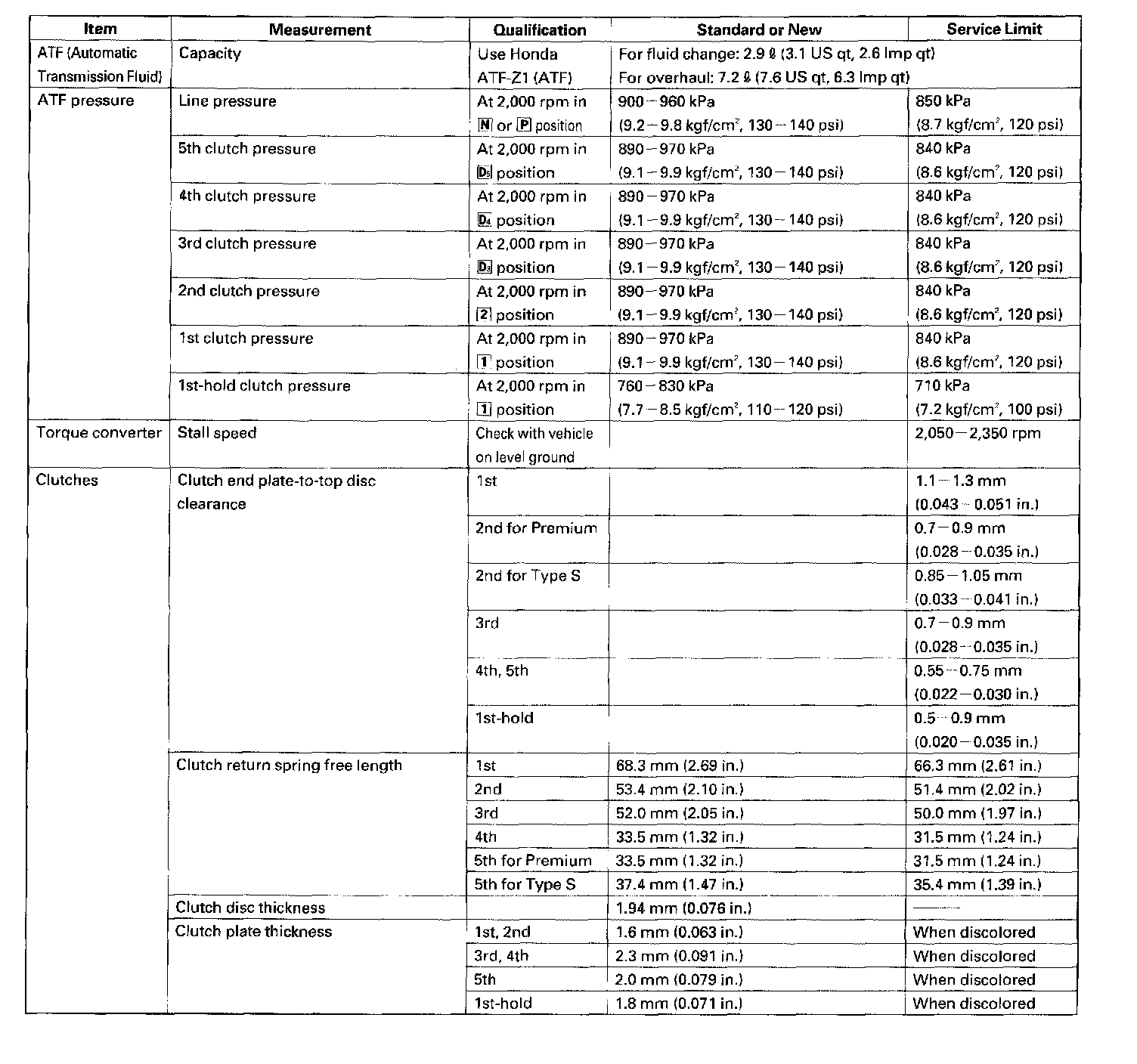

5 Speed Automatic Transmission Specifications:

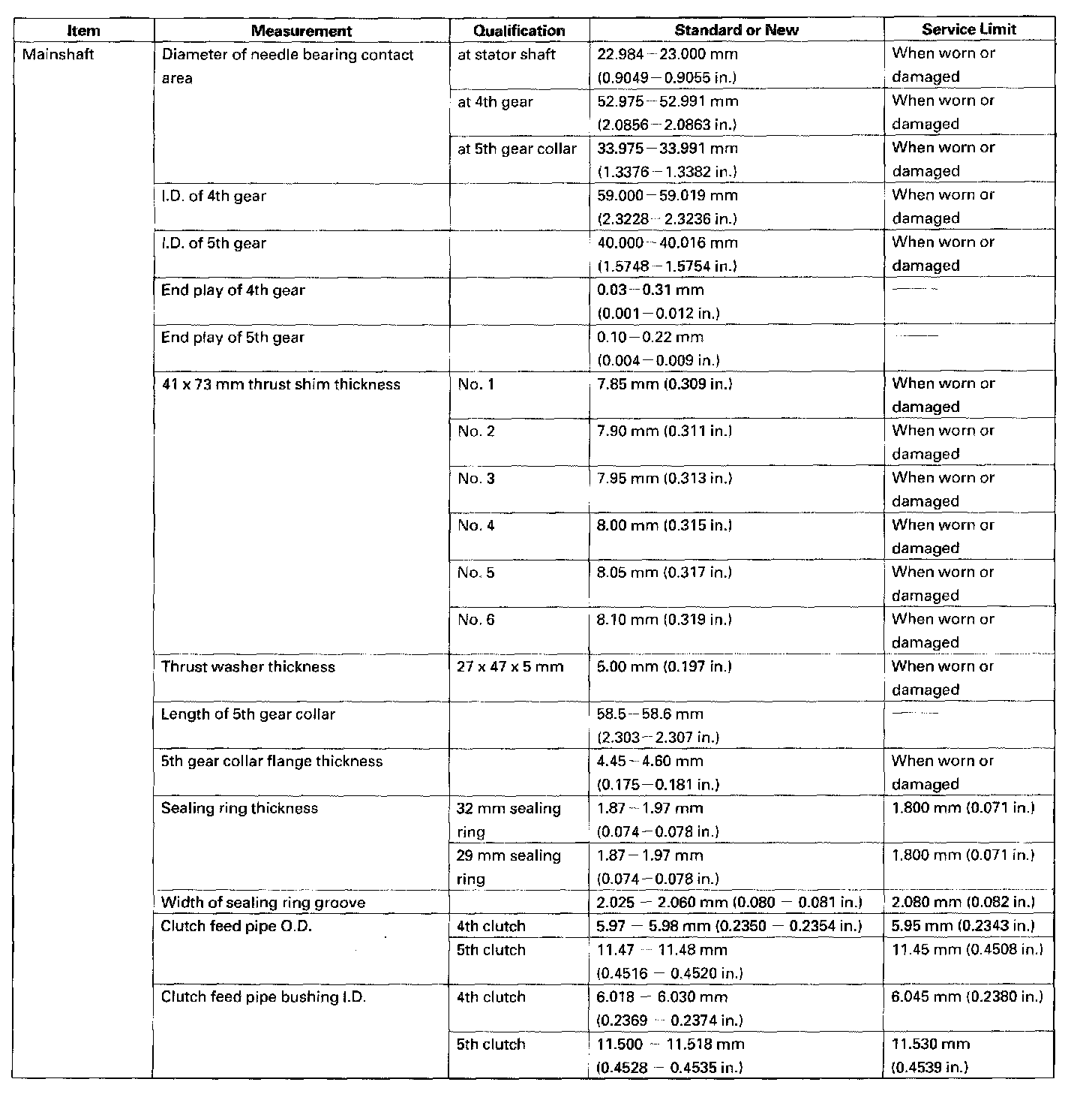

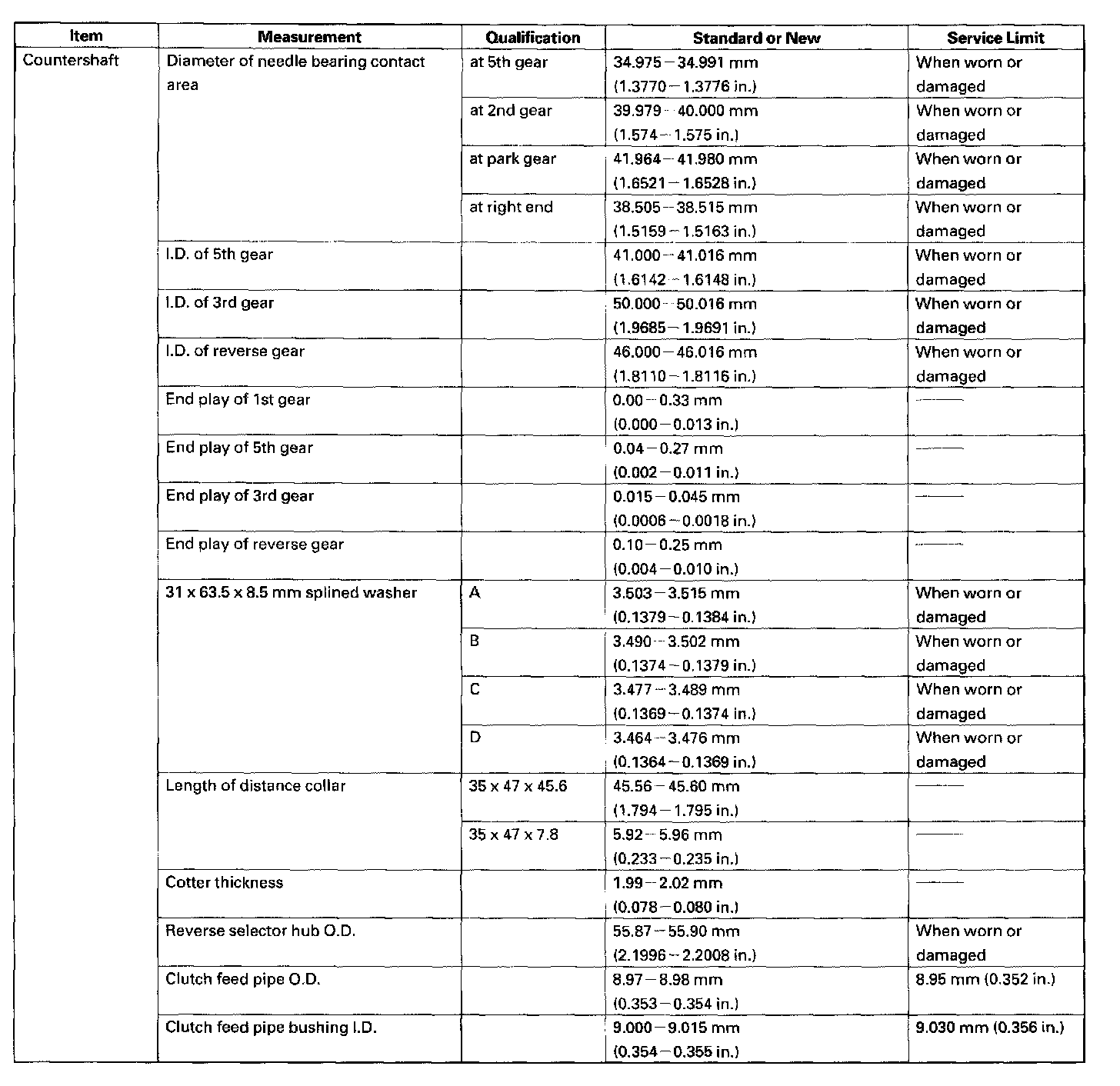

Continued:

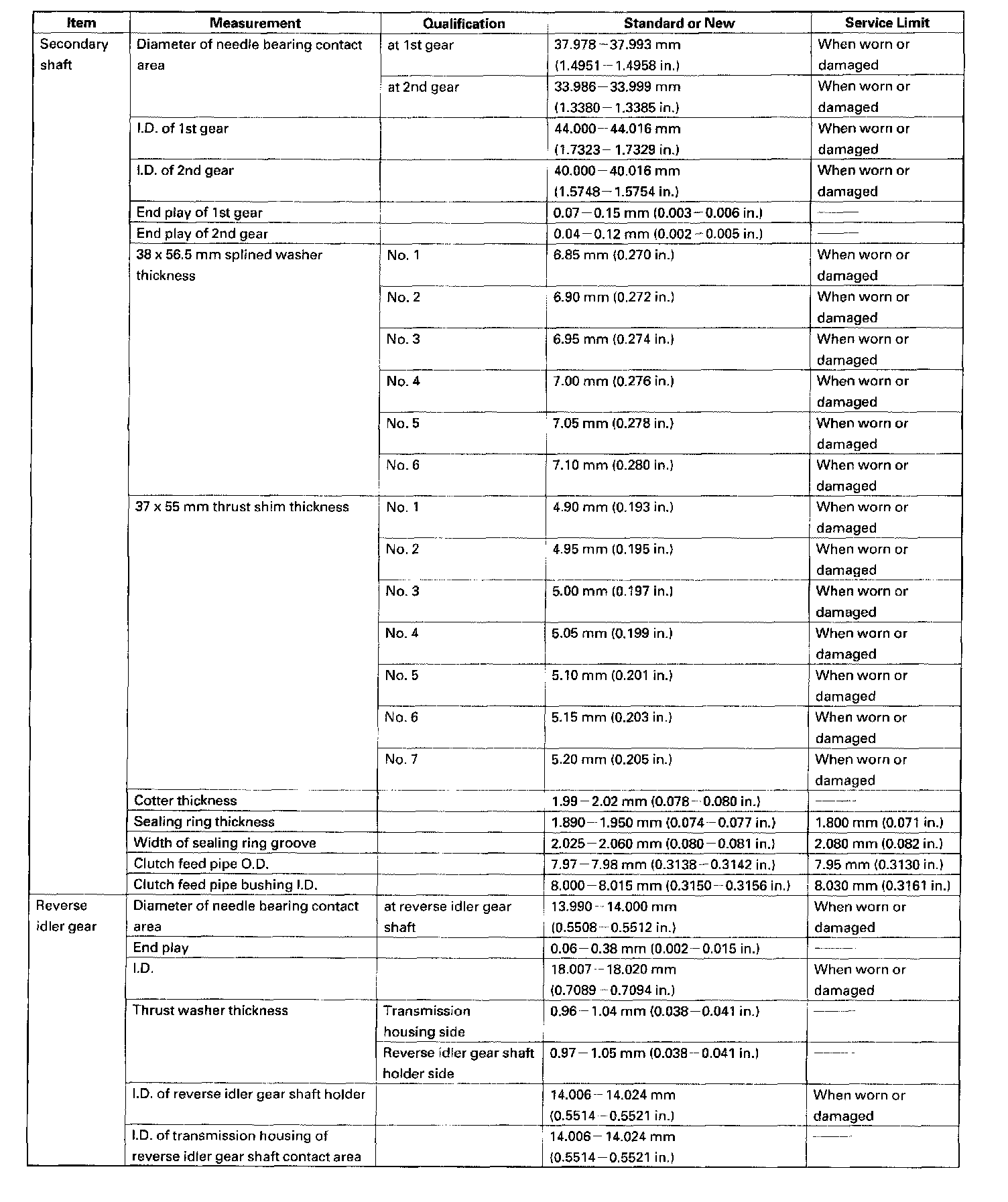

Continued:




Continued:

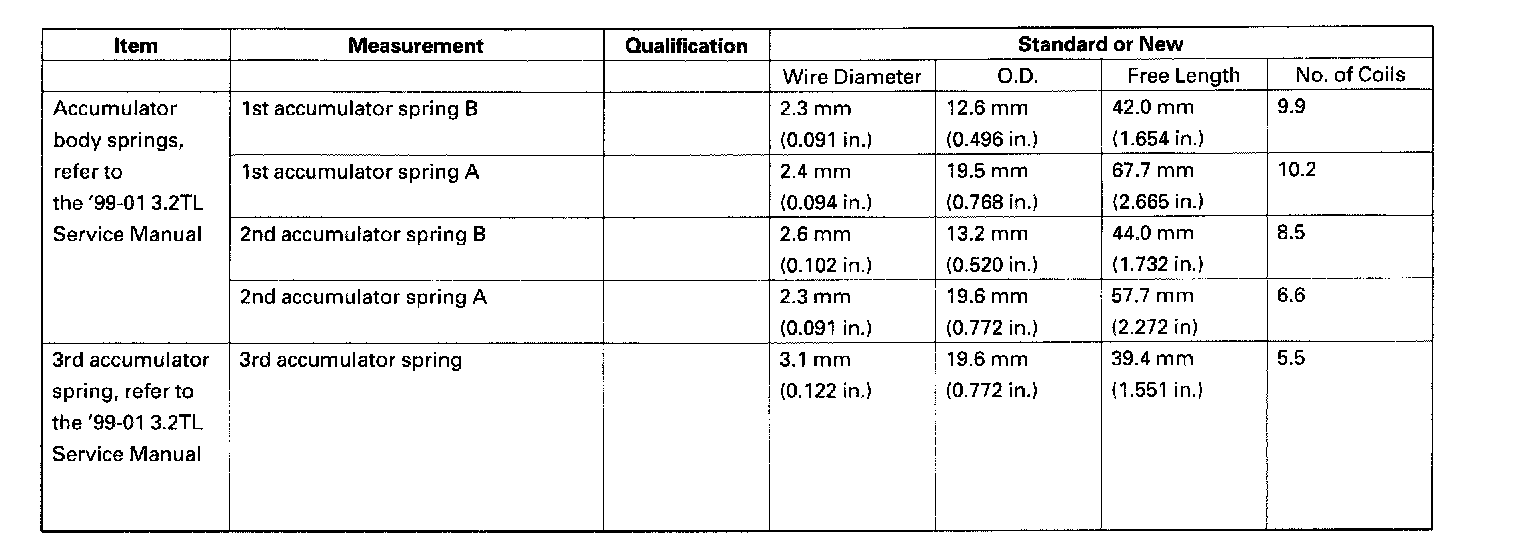

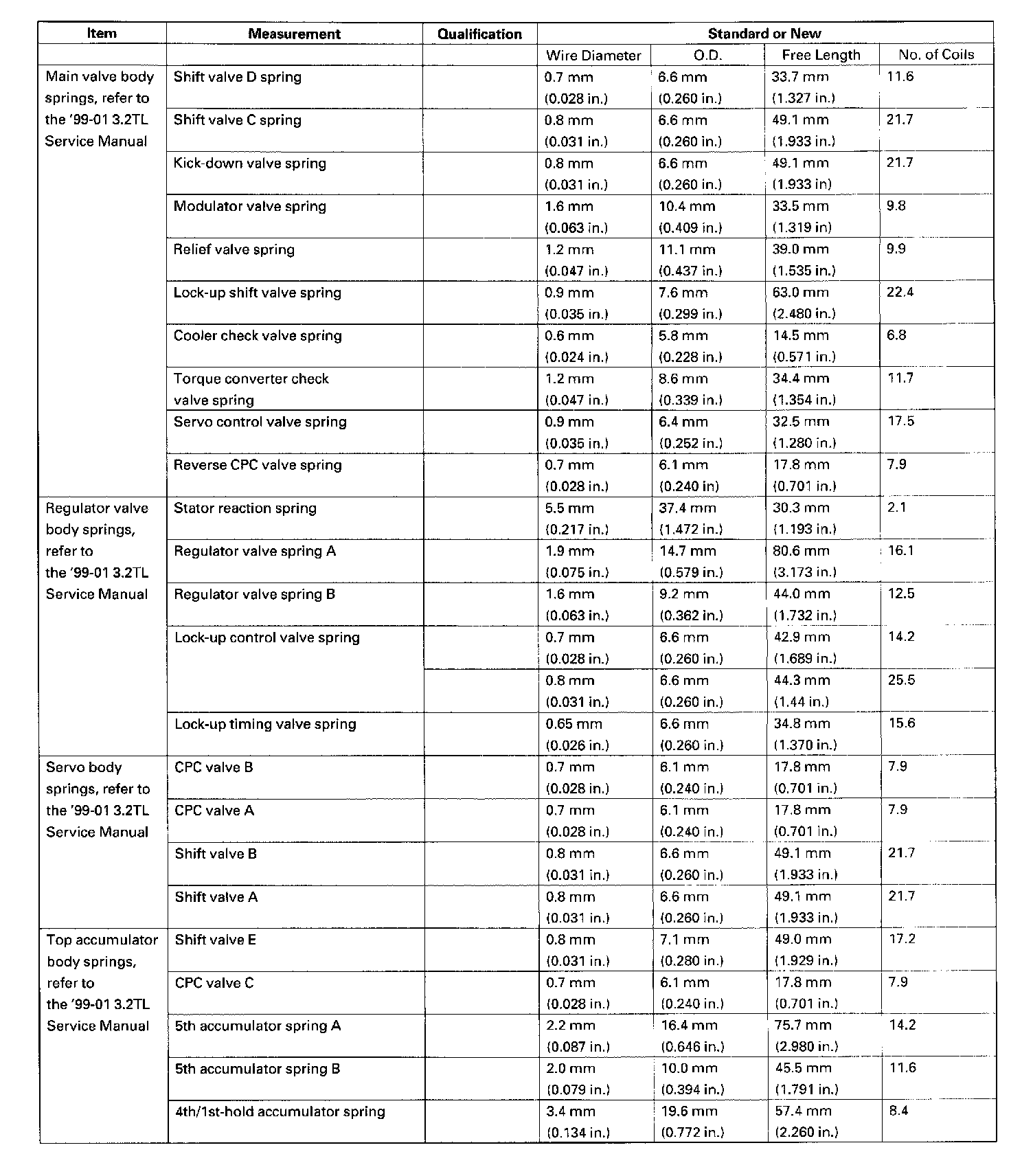

Accumulator Springs:

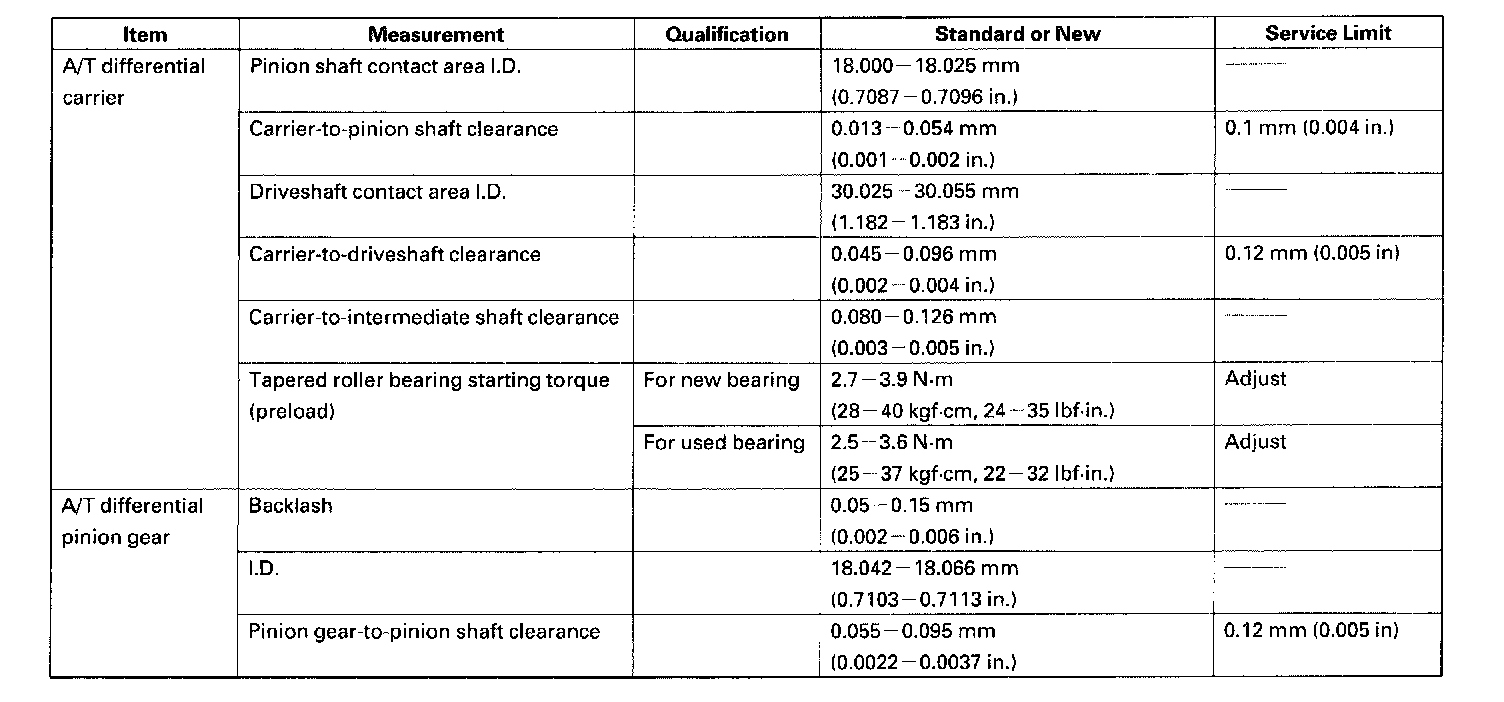

Automatic Transmission Differential Carrier:

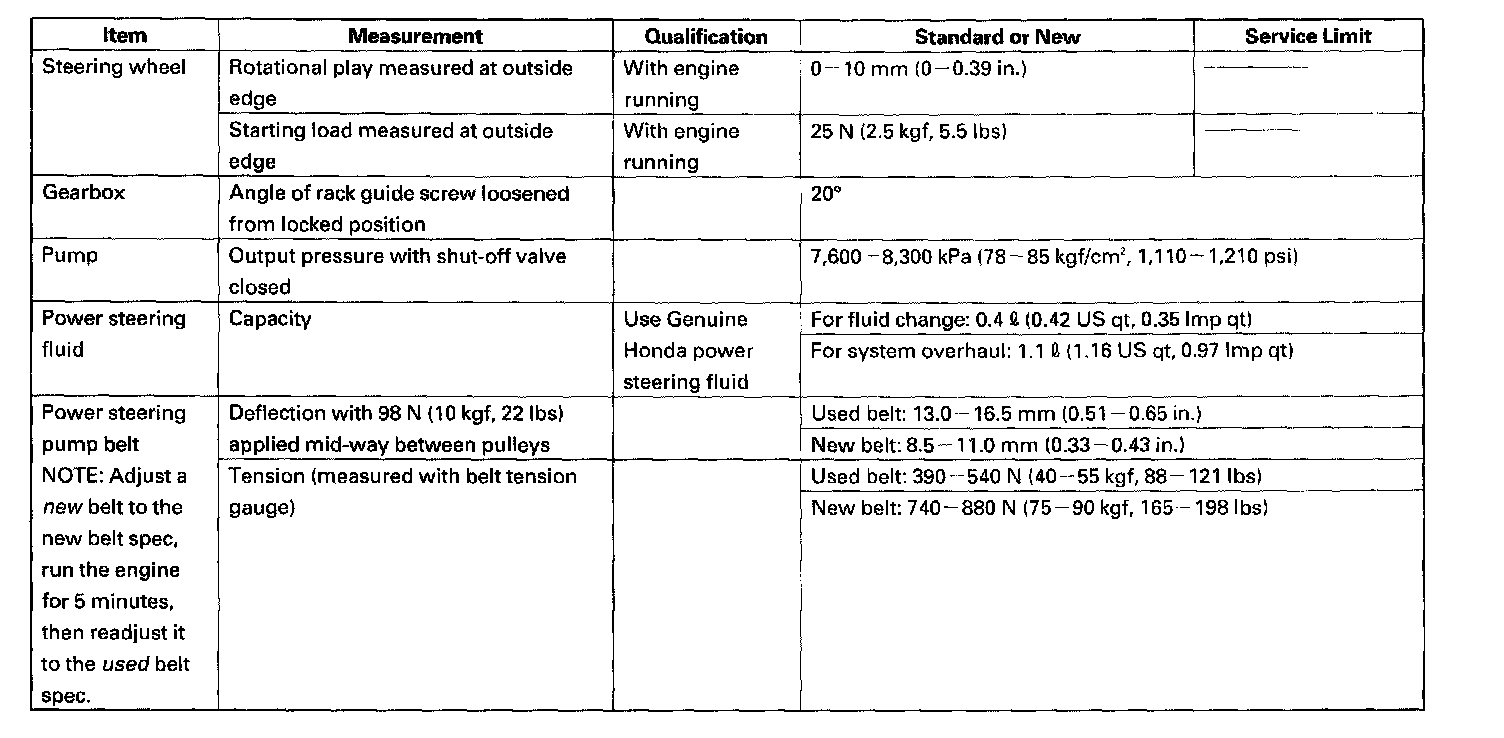

Steering Specifications:




Alignment:

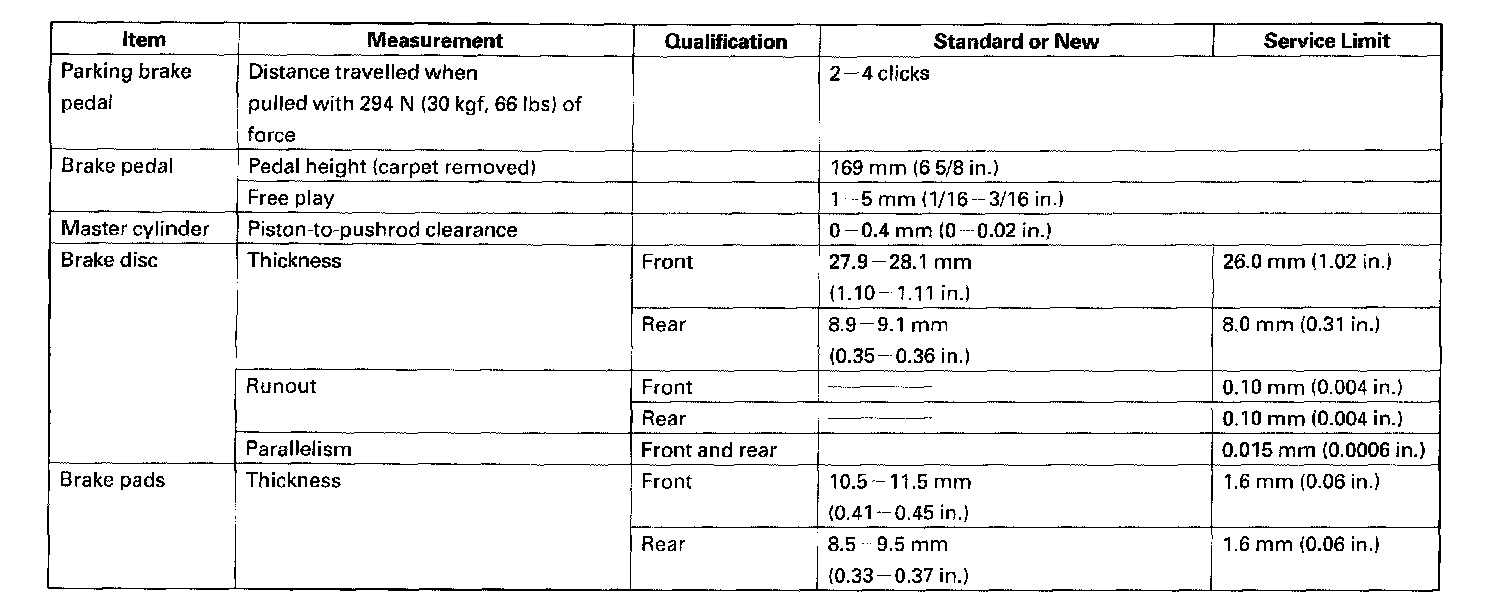

Brake Specifications:

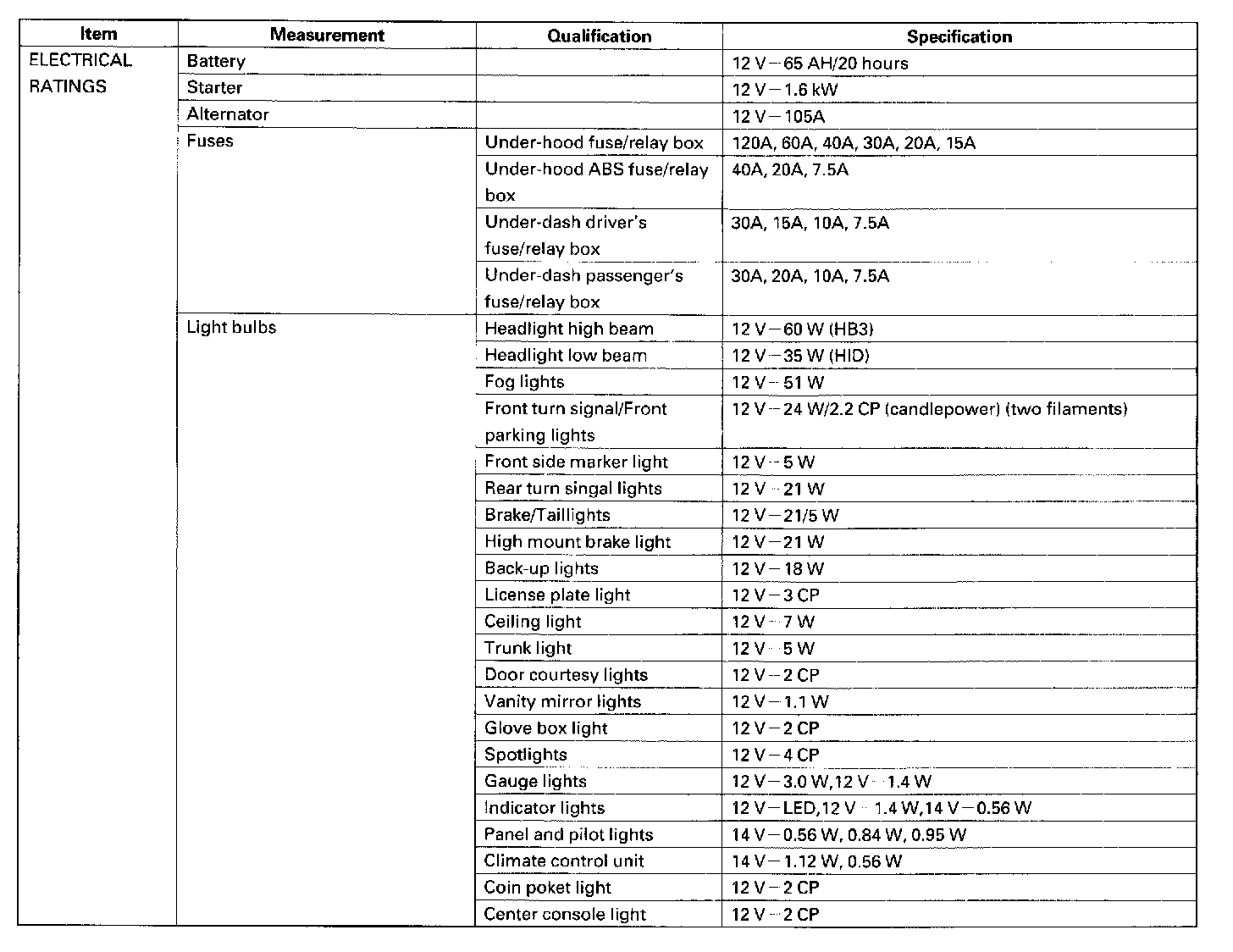

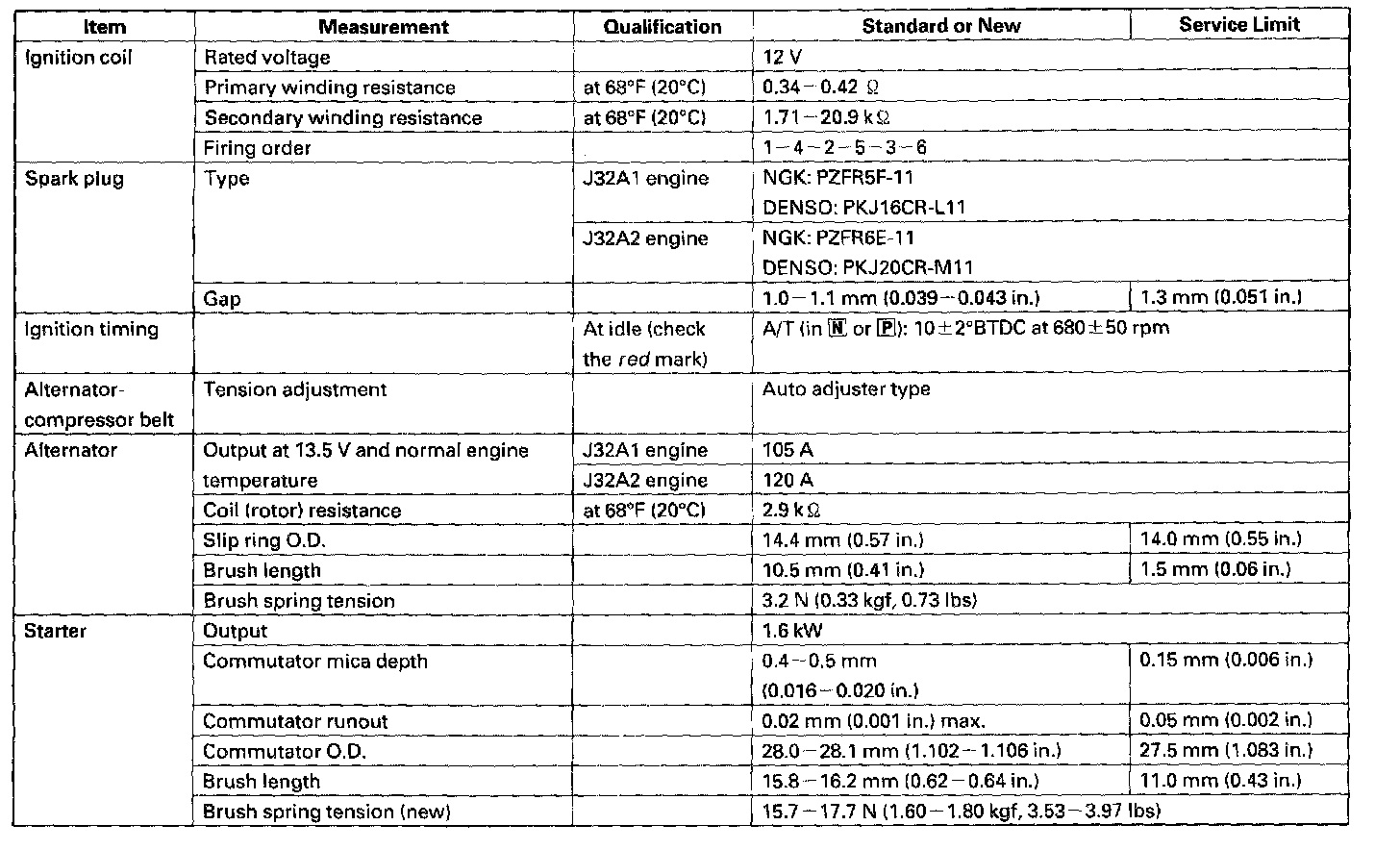

Electrical:
