Display Unit Inputs and Outputs

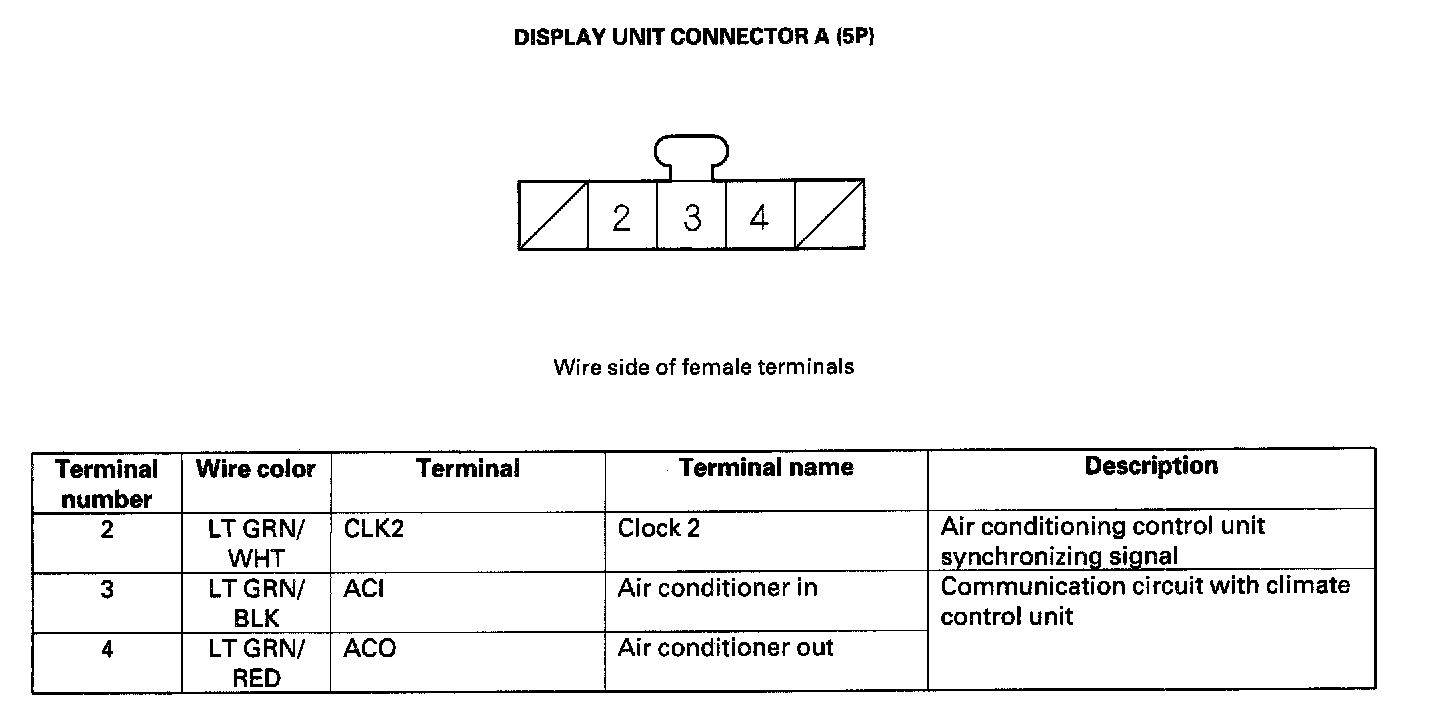

Display Unit Inputs And Outputs For Connector A (5P):

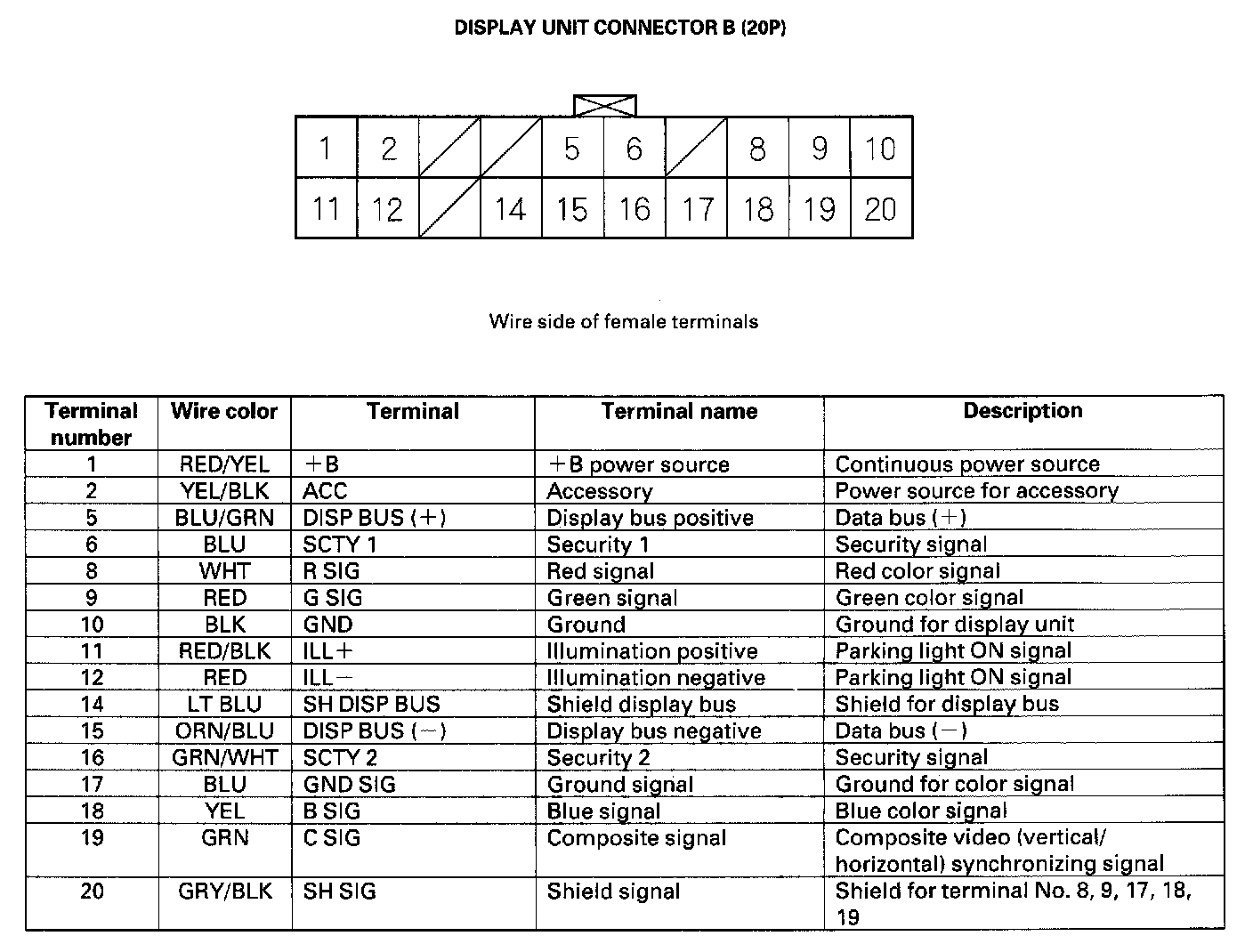

Display Unit Inputs And Outputs For Connector B (20P):
