Navigation Unit Inputs and Outputs

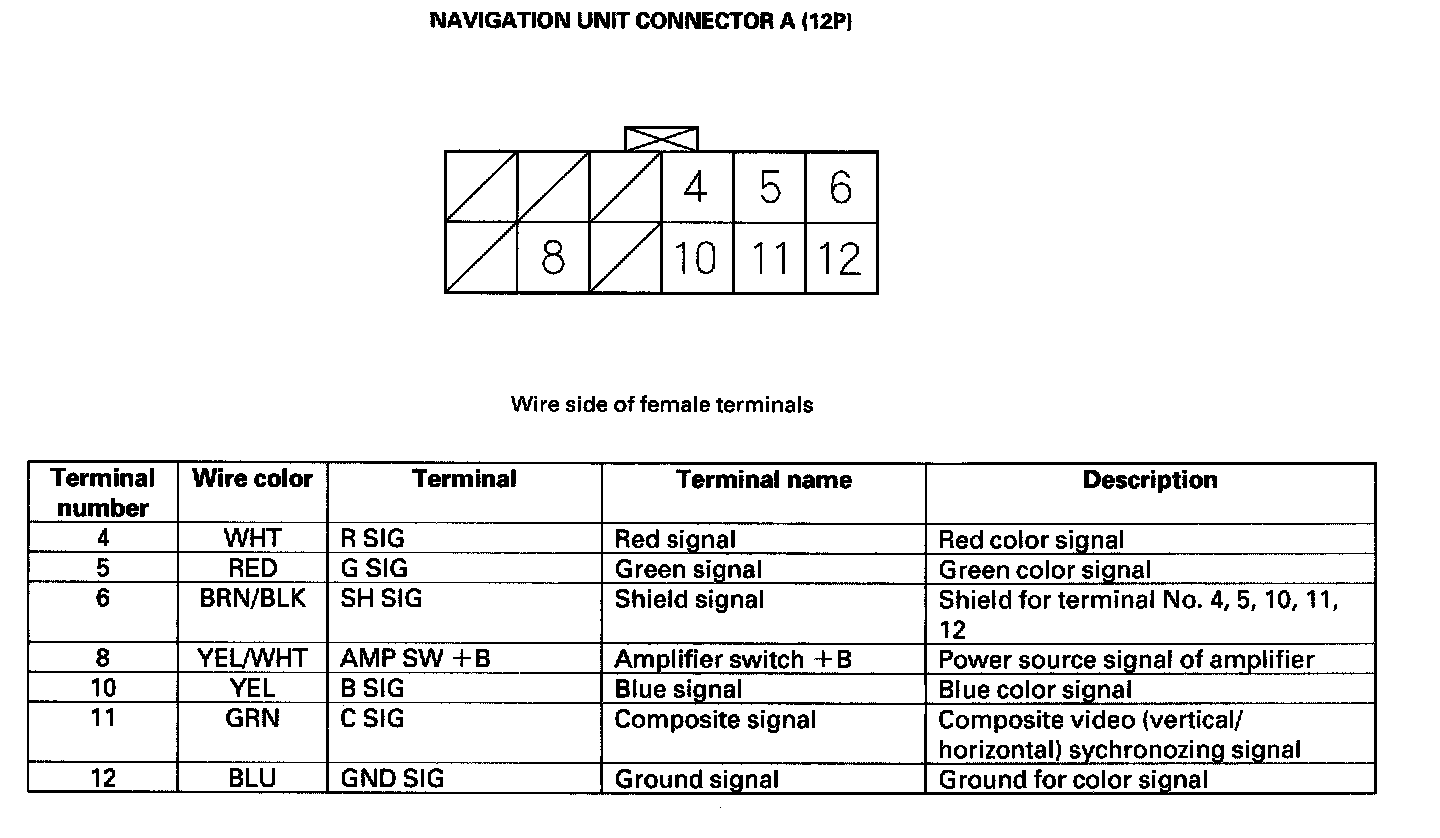

Navigation Unit Inputs And Outputs For Connector A (12P):

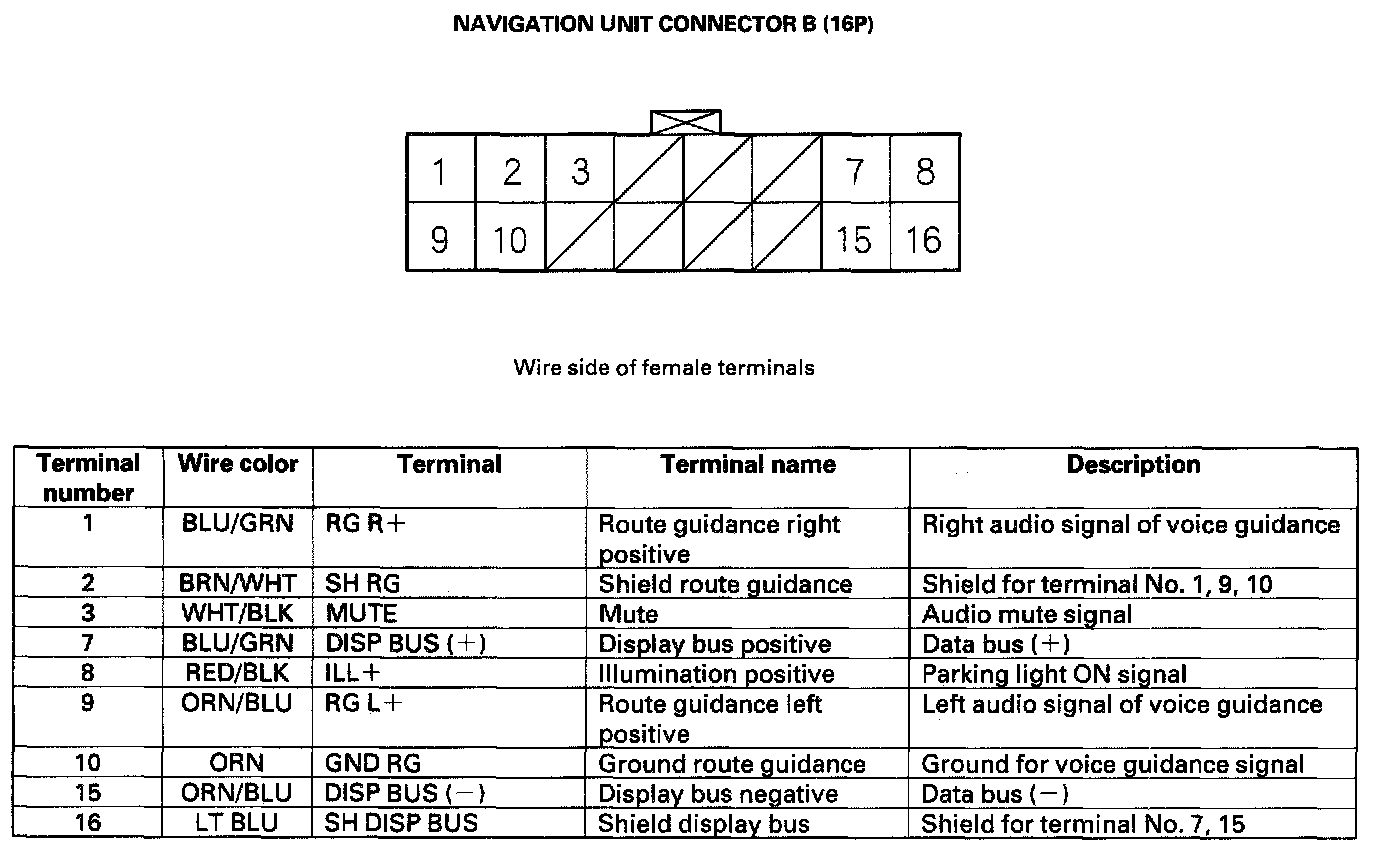

Navigation Unit Inputs And Outputs For Connector B (16P):

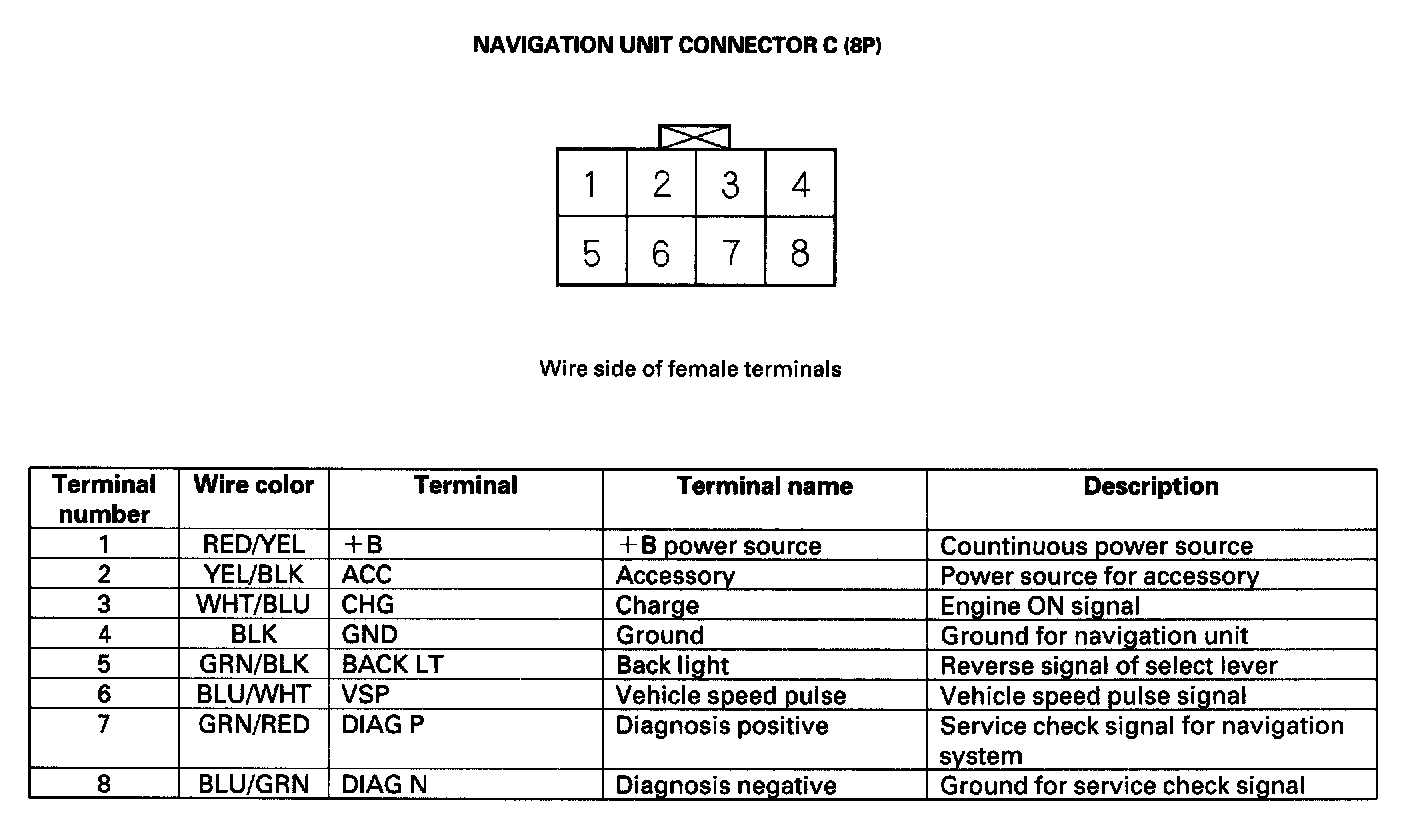

Navigation Unit Inputs And Outputs For Connector C (8P):
