Circuit 11

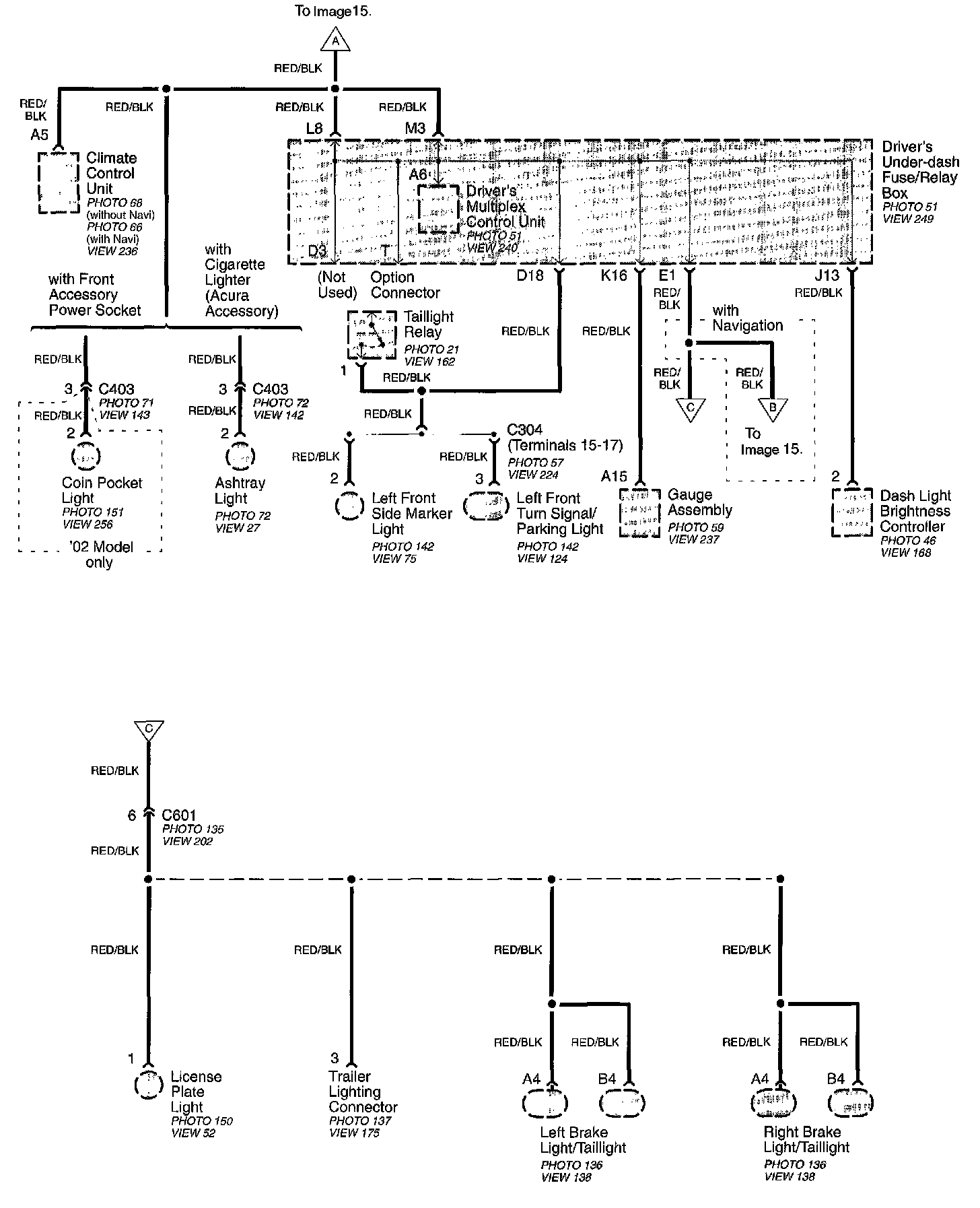

Circuit 11 - Interior Illumination (Positive) Image 15:

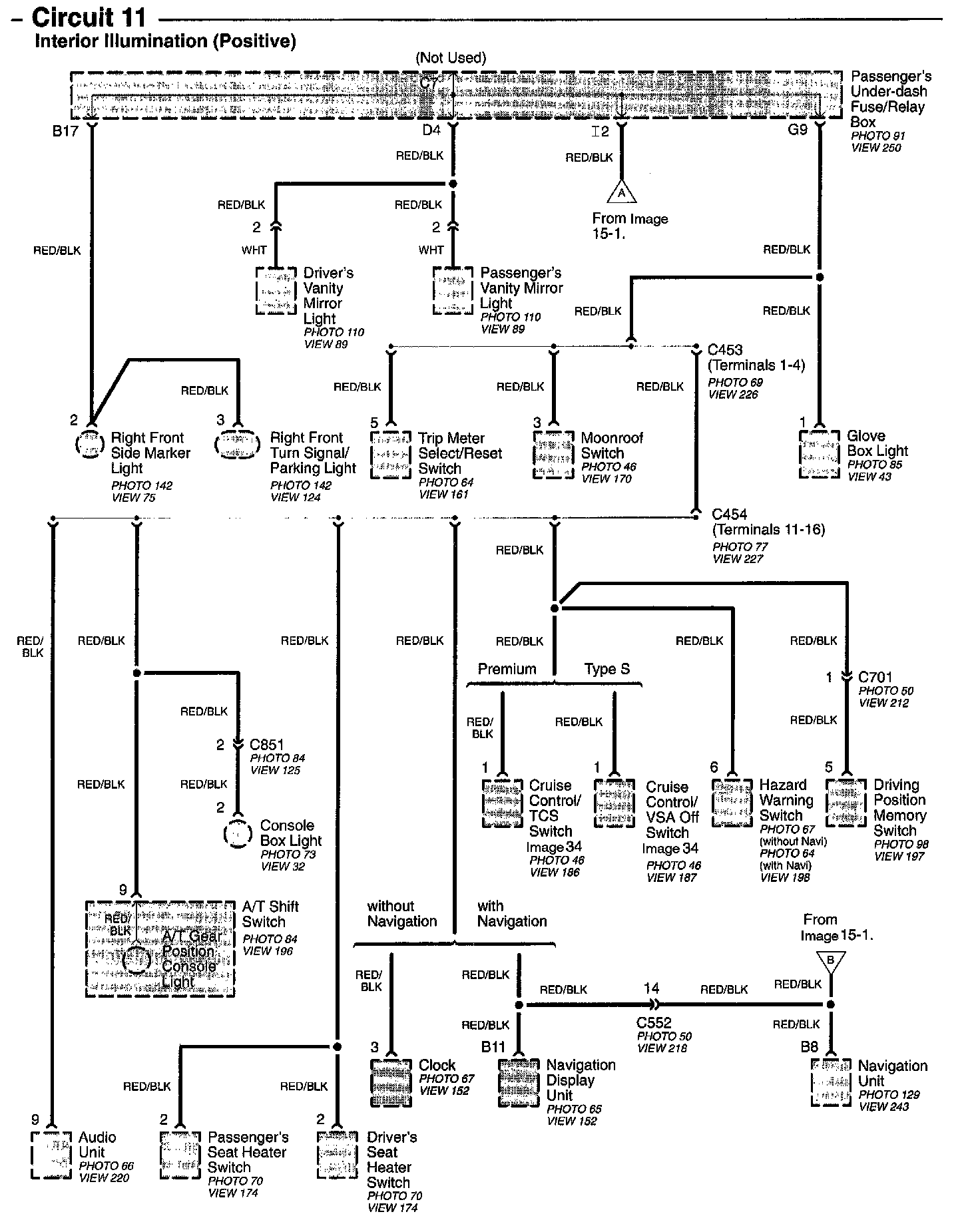

Circuit 11 - Interior Illumination (Positive) Image 15-1:
