Connector Views

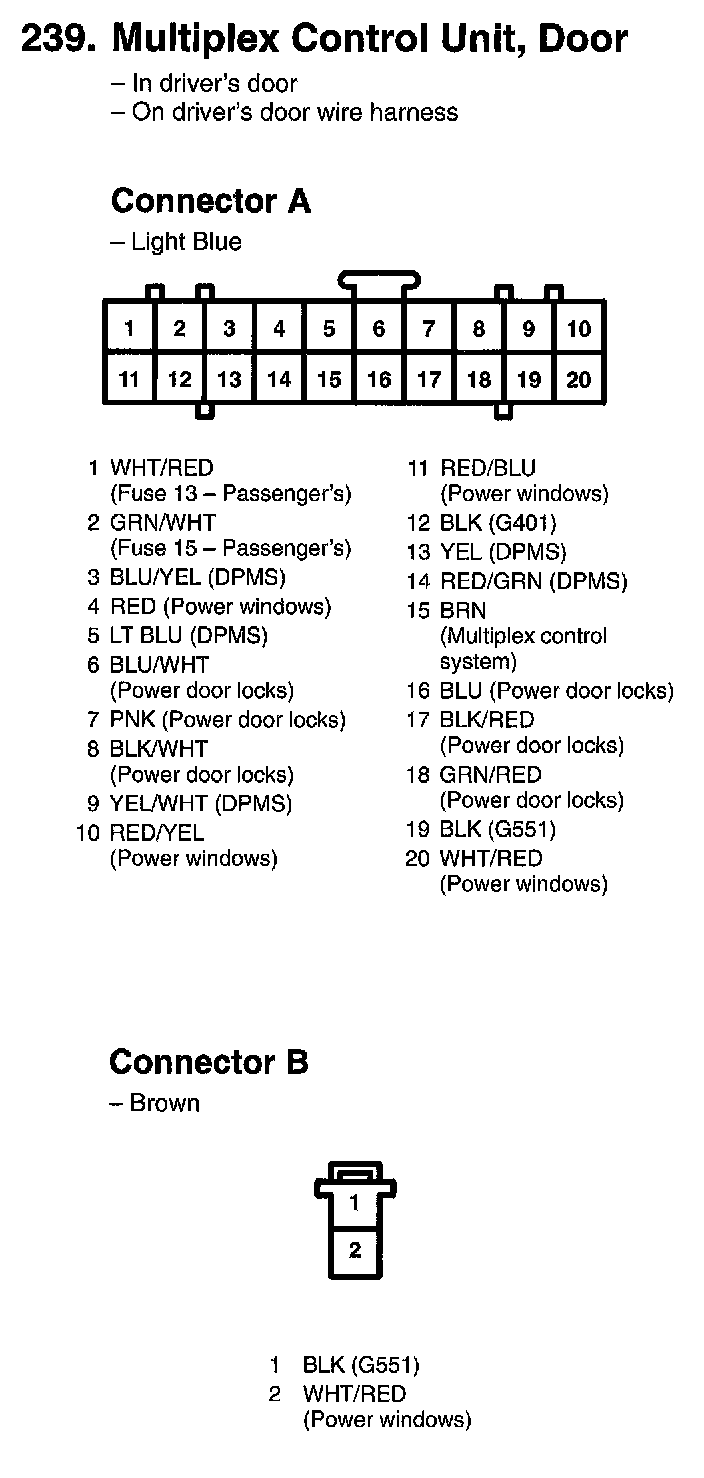

239. Multiplex Control Unit, Door:

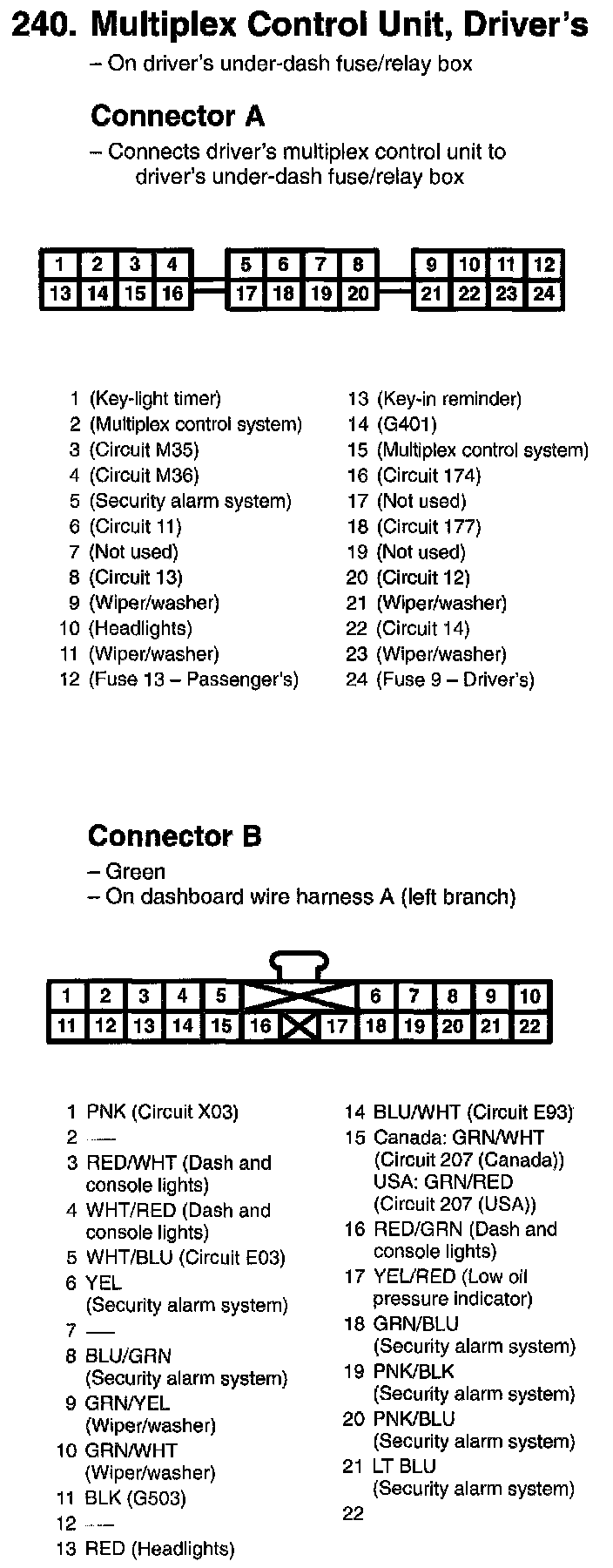

240. Multiplex Control Unit, Driver's:

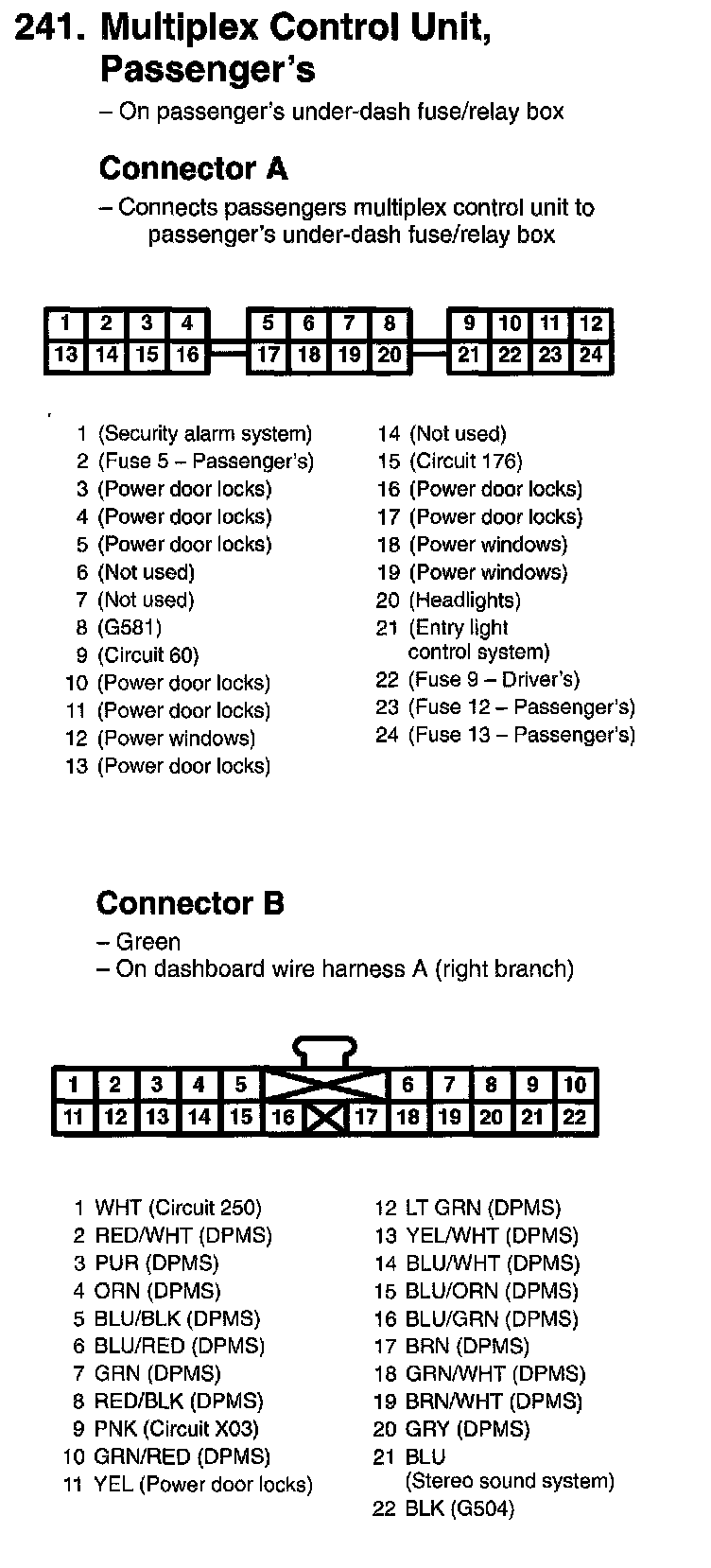

241. Multiplex Control Unit, Passenger's:
