Powertrain Management: Locations

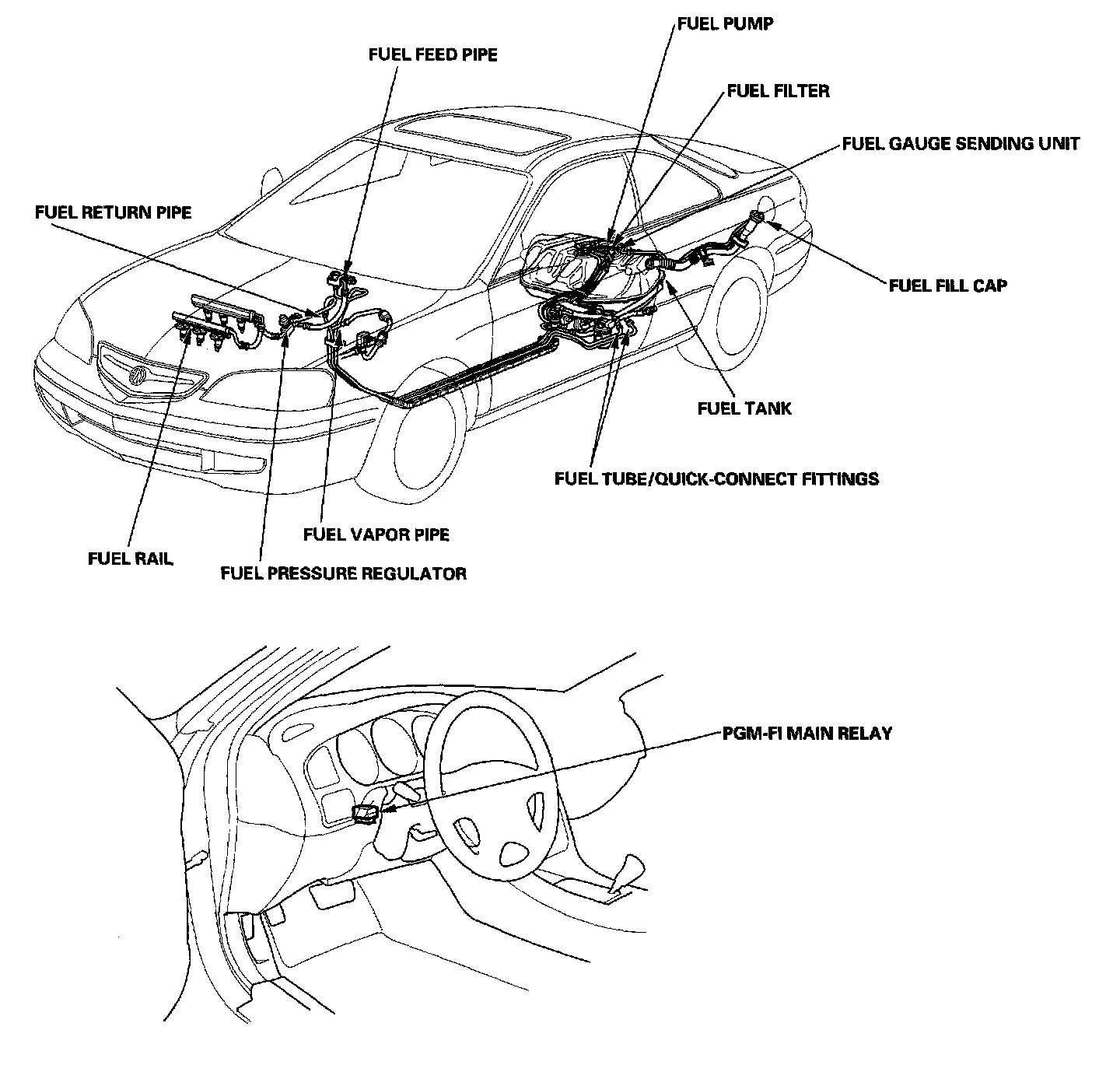

Fuel Supply System Component Location Index:

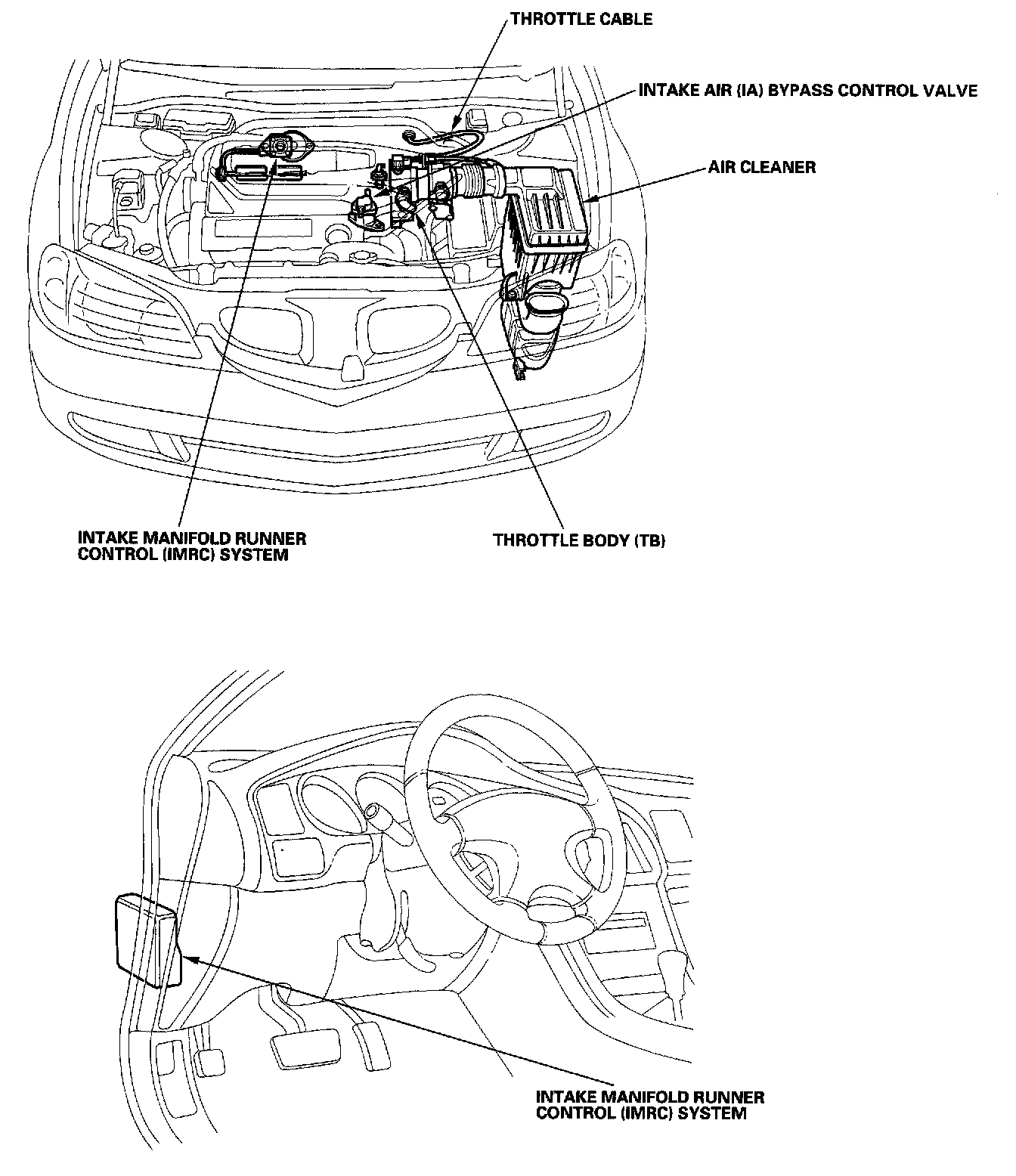

Intake Air System Component Location Index:

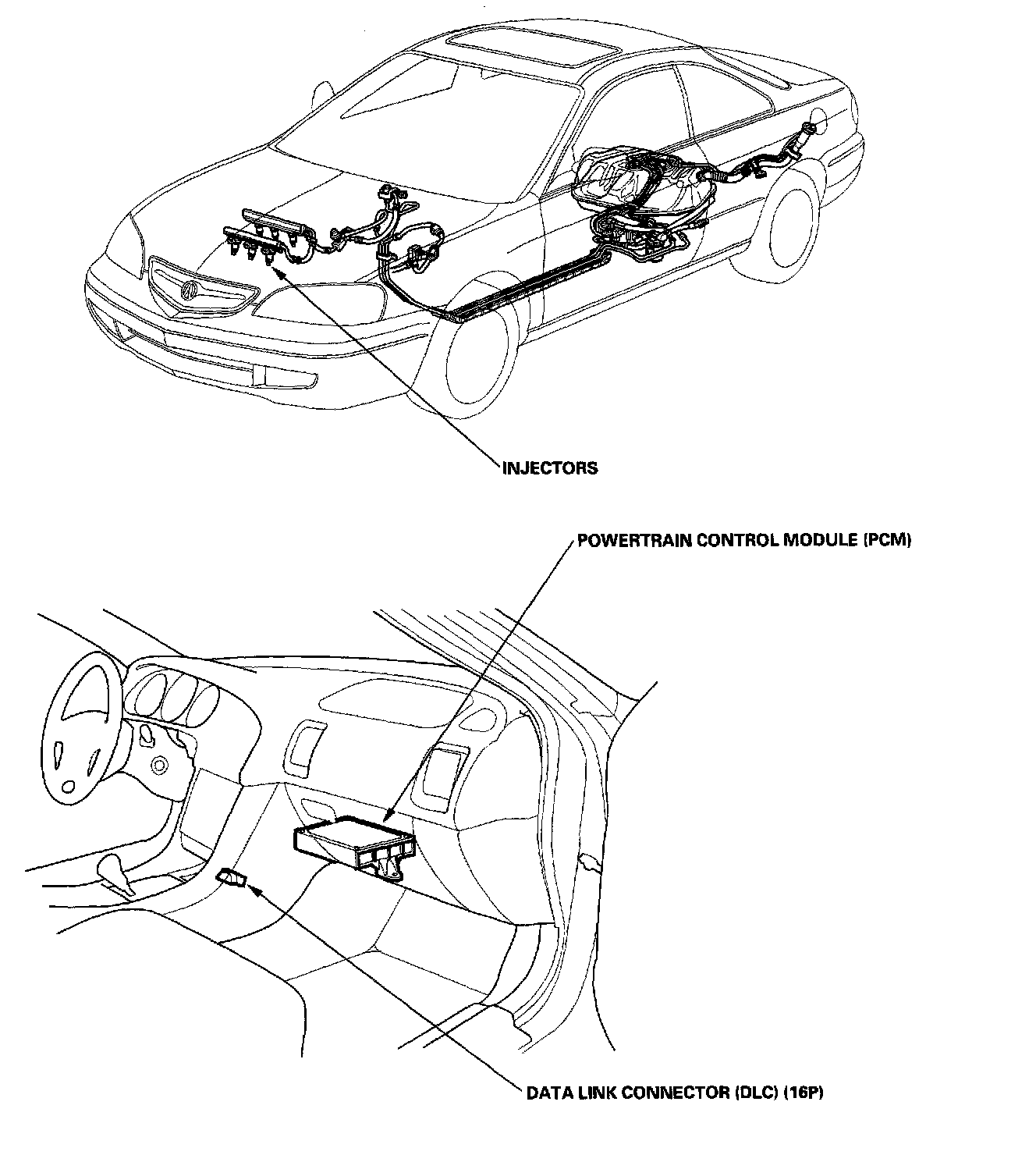

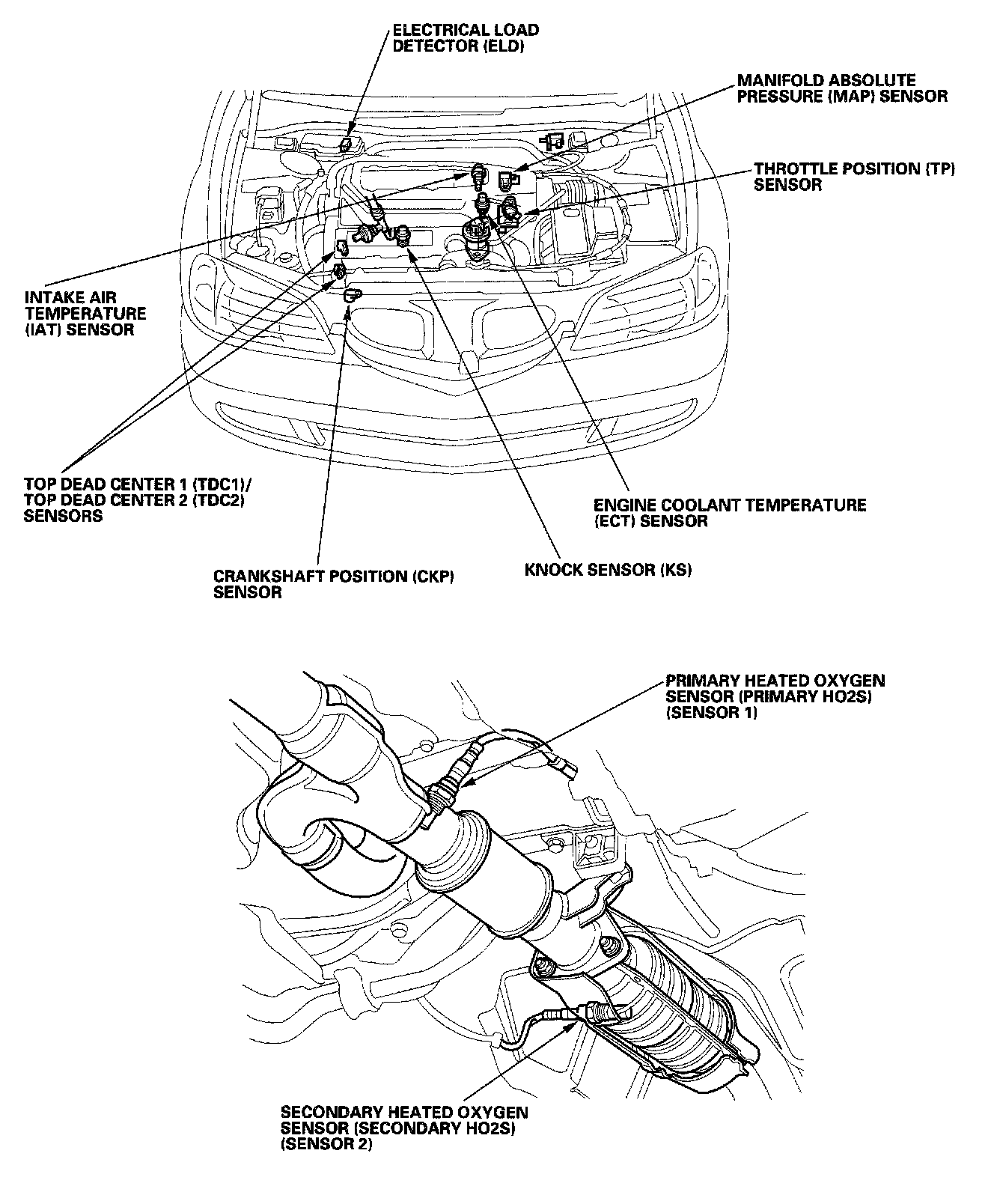

PGM-FI System Component Location Index (Part 1):



PGM-FI System Component Location Index (Part 2):
