Abs Modulator-Control Unit: Removal

Pull up on the lock of the ABS control unit 31P connector, then disconnect the connector. Disconnect the 6 brake lines. Remove the two 8 mm nuts. Remove the ABS modulator-control unit. See Fig 1 .

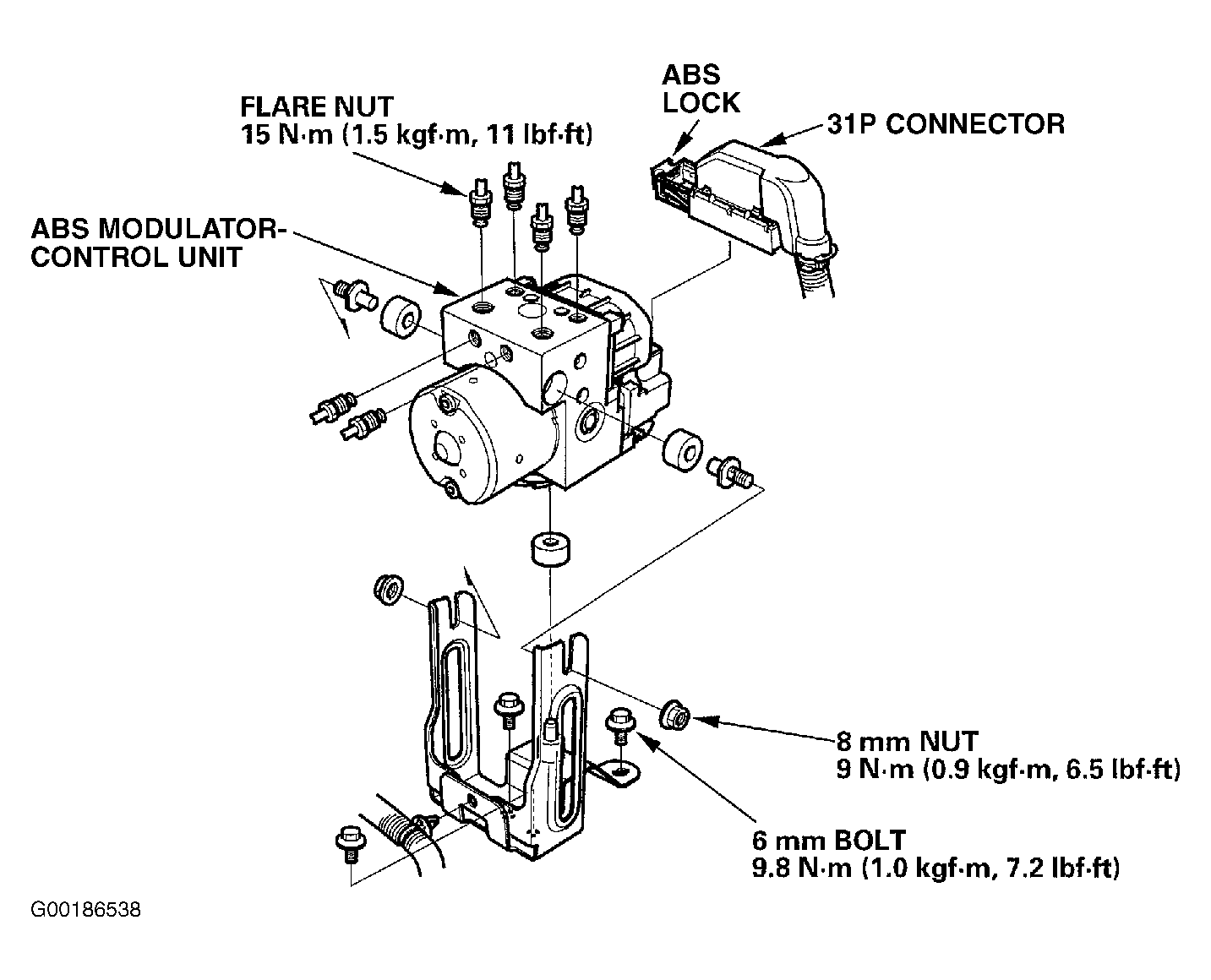

Fig 1: Exploded View Of ABS Modulator-Control Unit

Courtesy of AMERICAN HONDA MOTOR CO., INC.
