Test C: Abs Indicator Does Not Come On

For test chart, see Fig 1 .

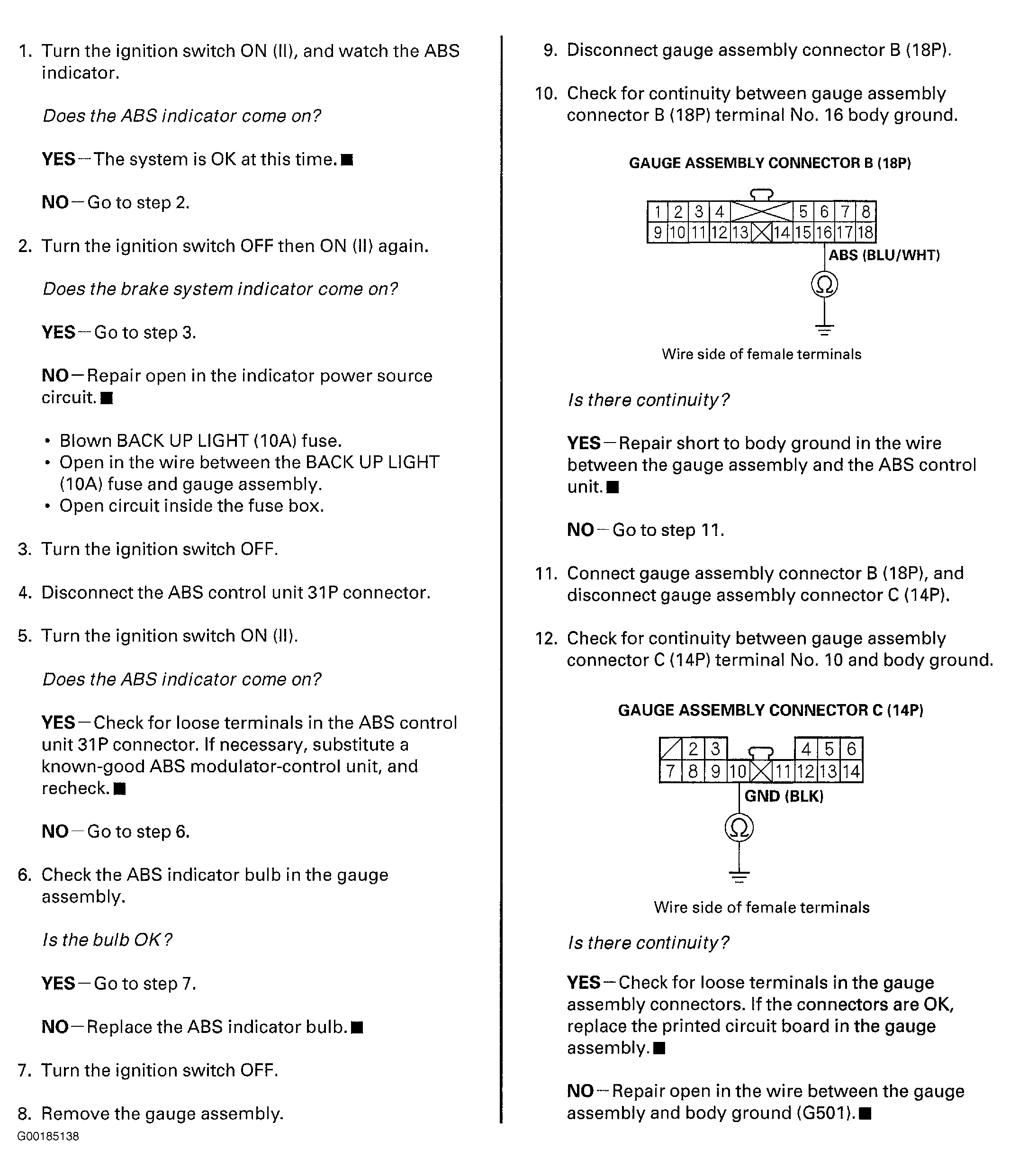

Fig 1: ABS Indicator Does Not Come On, Trouble Shooting Chart
G00185138Courtesy of AMERICAN HONDA MOTOR CO., INC.
