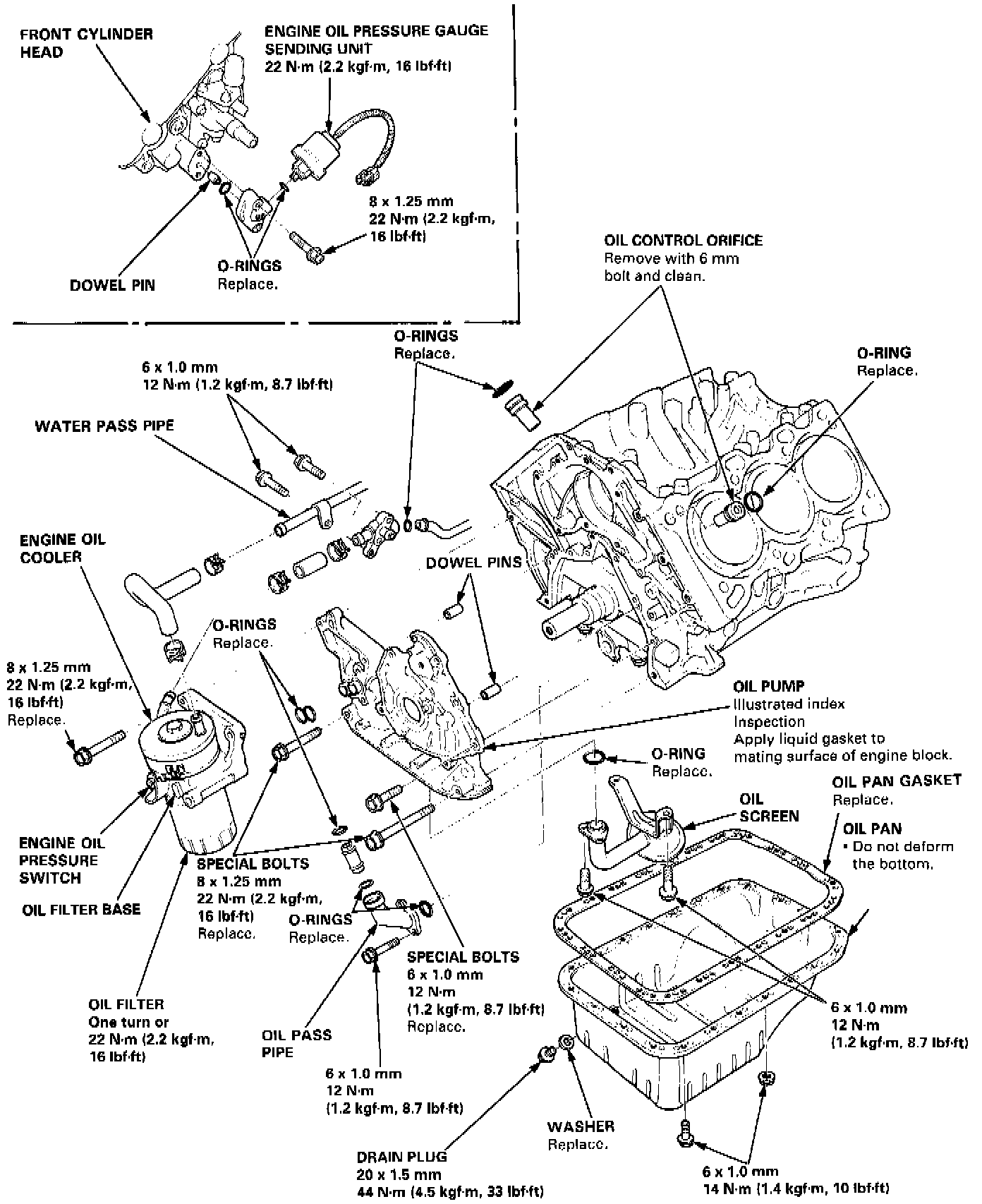

System Diagram

NOTE:
- Use new O-rings when reassembling.
- Apply oil to O-rings before installation.
- Use liquid gasket, Part No. 08718 - 0001 or 08718 - 0003.
- If the bottom of the oil pan is deformed, it should be repaired or the oil pan should be replaced to retain proper clearance between the screen and the bottom.
