Crankshaft Position Sensor: Service and Repair

REPLACEMENT

NOTE: Turn the crankshaft so that the No. 1 piston is at top dead center.

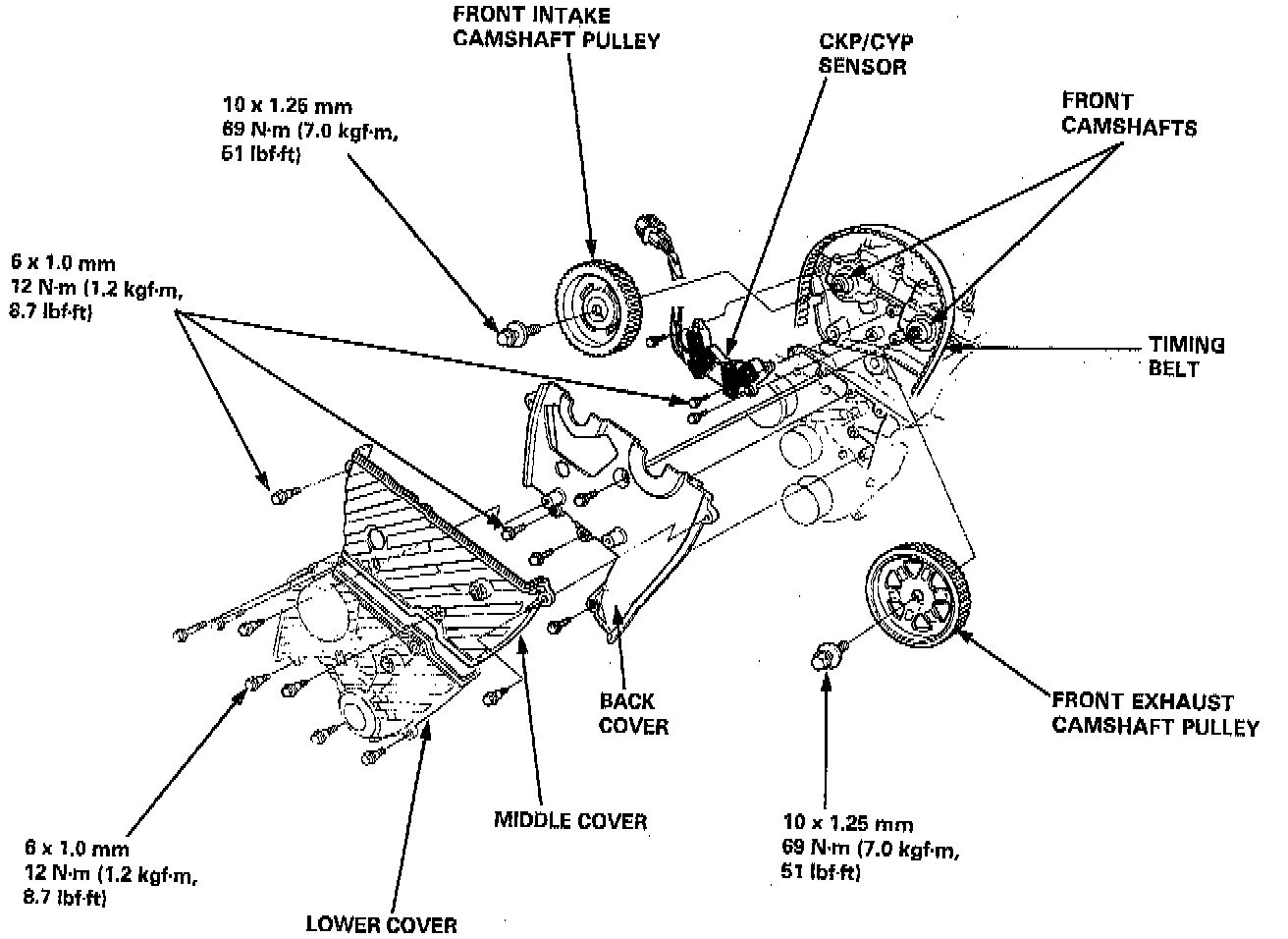

1. Remove the timing belt.
2. Remove the front intake and exhaust camshaft pulleys.
3. Remove the back cover.
4. Remove the Crankshaft Position/Camshaft Position (CKP/CYP) sensor from the front cylinder head.
5. Install the CKP/CYP sensor in the reverse order of removal.
