Vehicle Speed Sensor: Testing and Inspection

NOTE: A short to ground in the ORN wire can be caused by a short in any component connected to it.

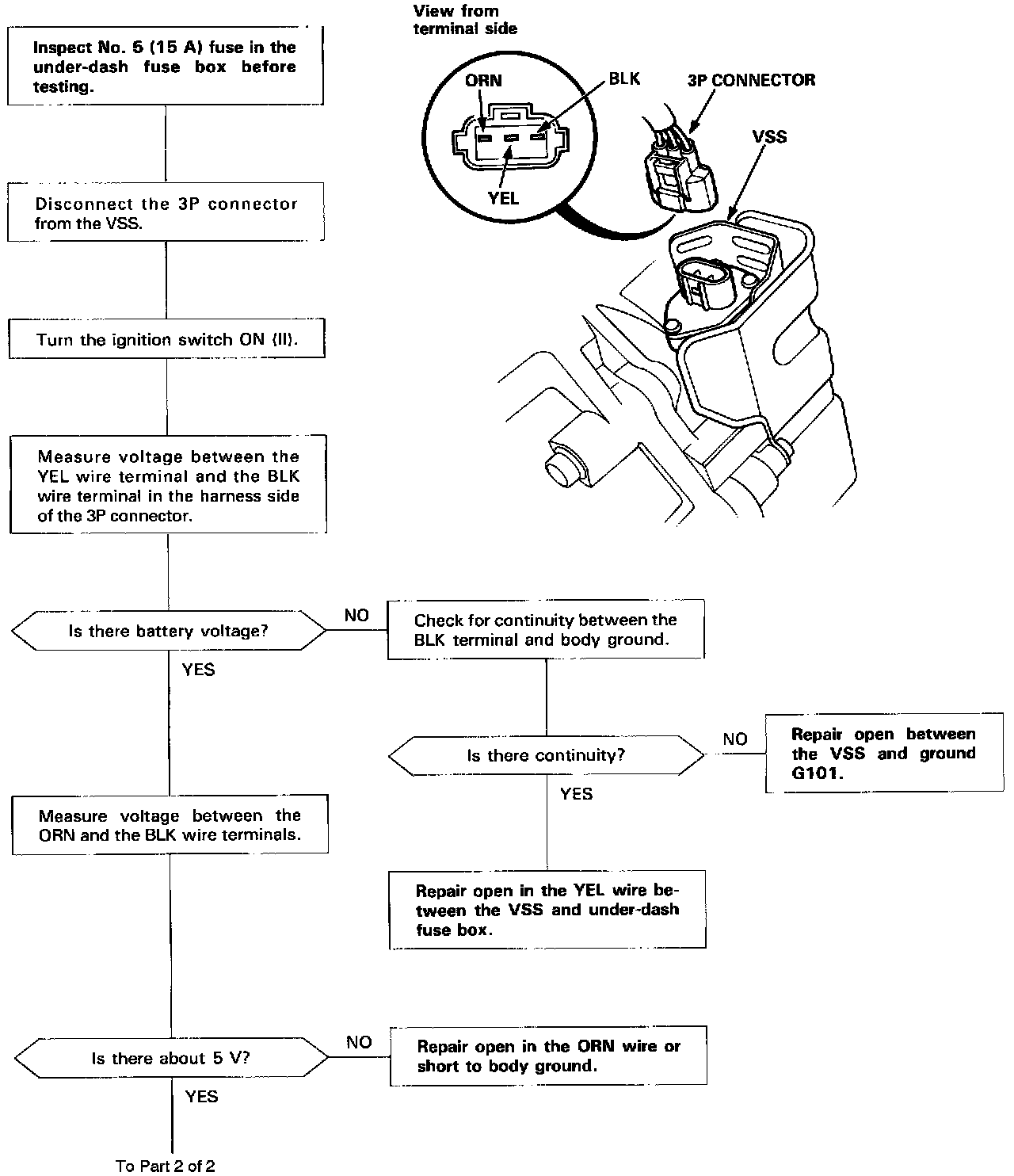

Vehicle Speed Sensor (VSS) Test (Part 1 Of 2):

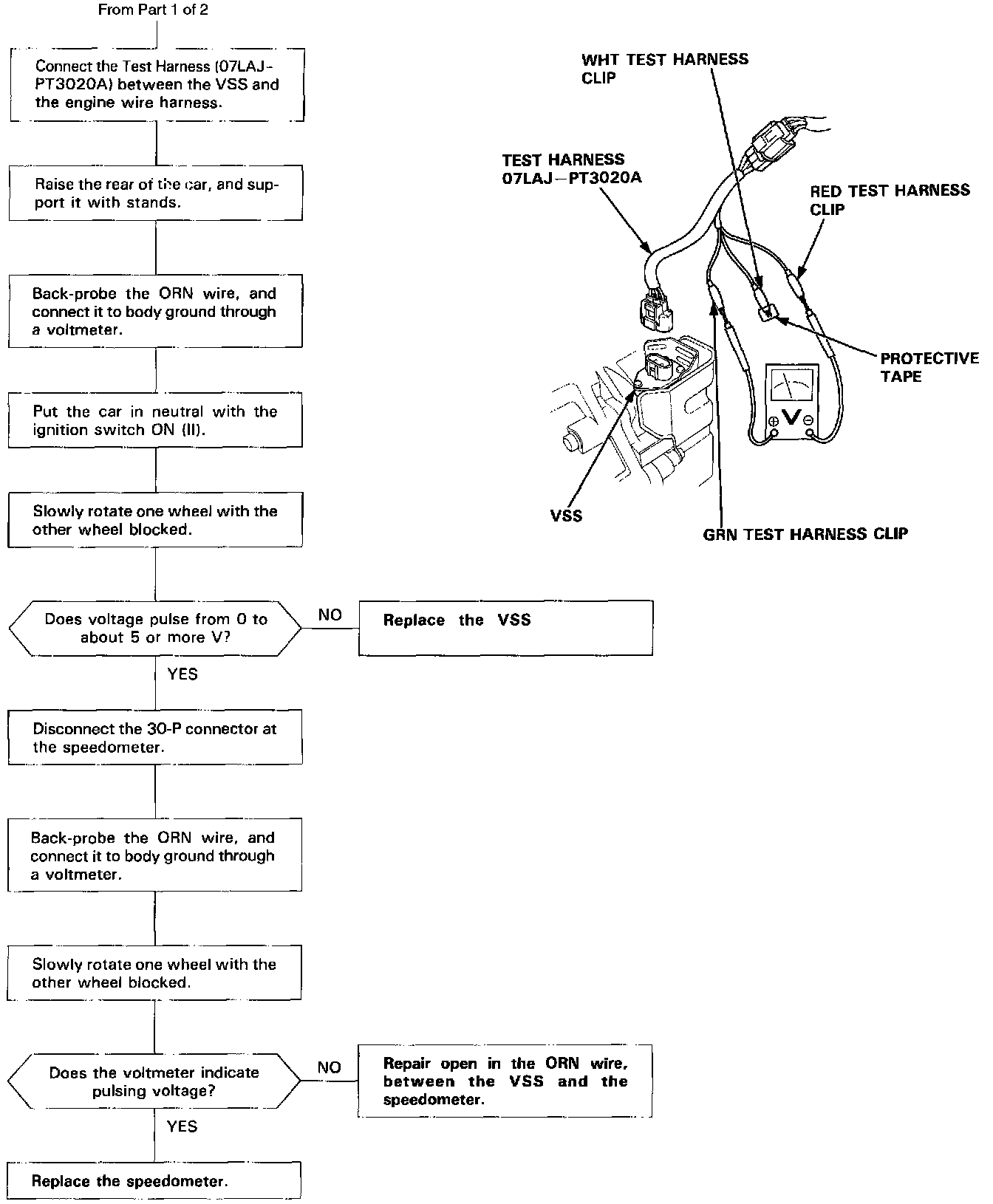

Vehicle Speed Sensor (VSS) Test (Part 2 Of 2):




Speedometer does not work
