Design Specification

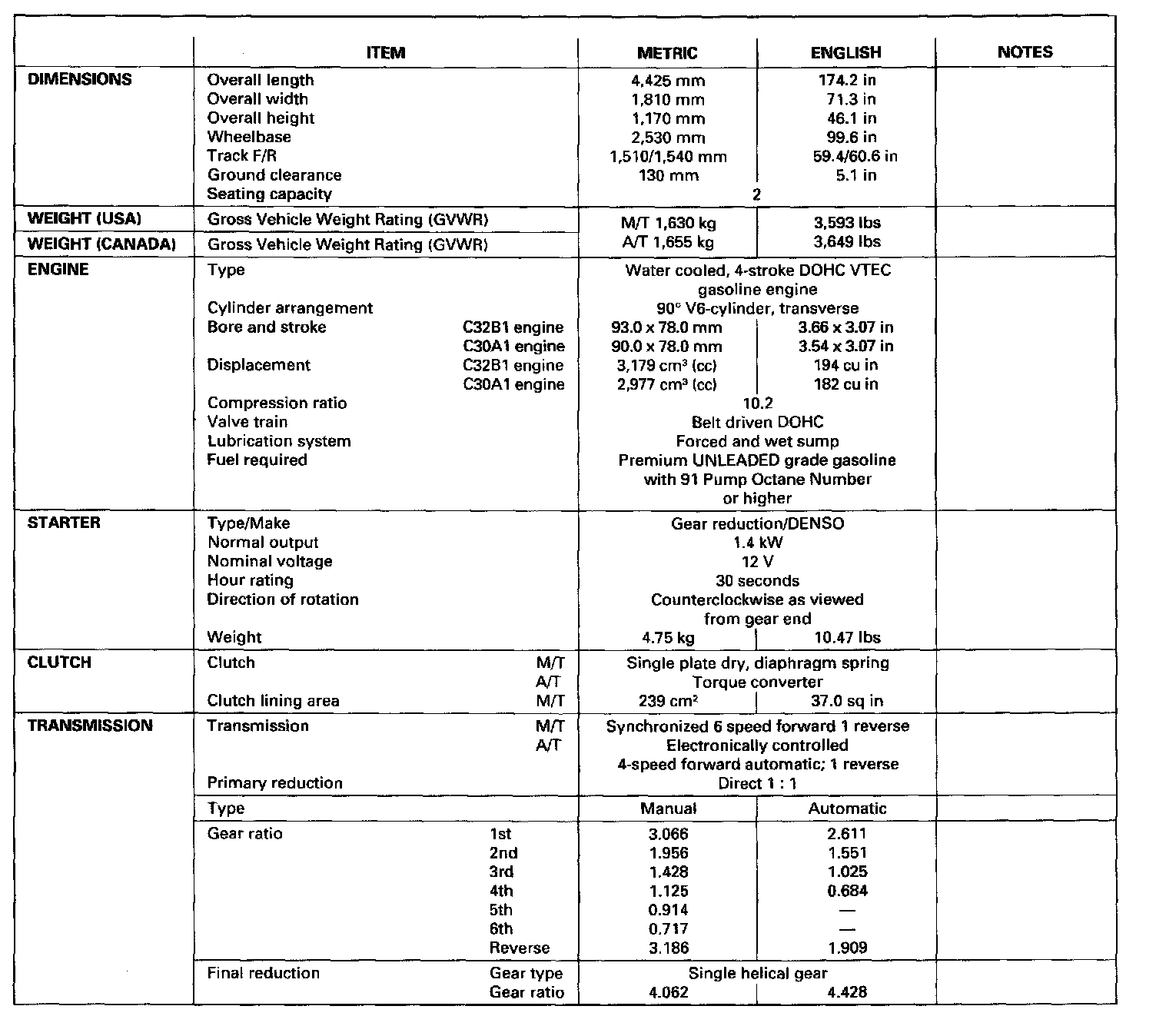

Design Specifications - Part 1:

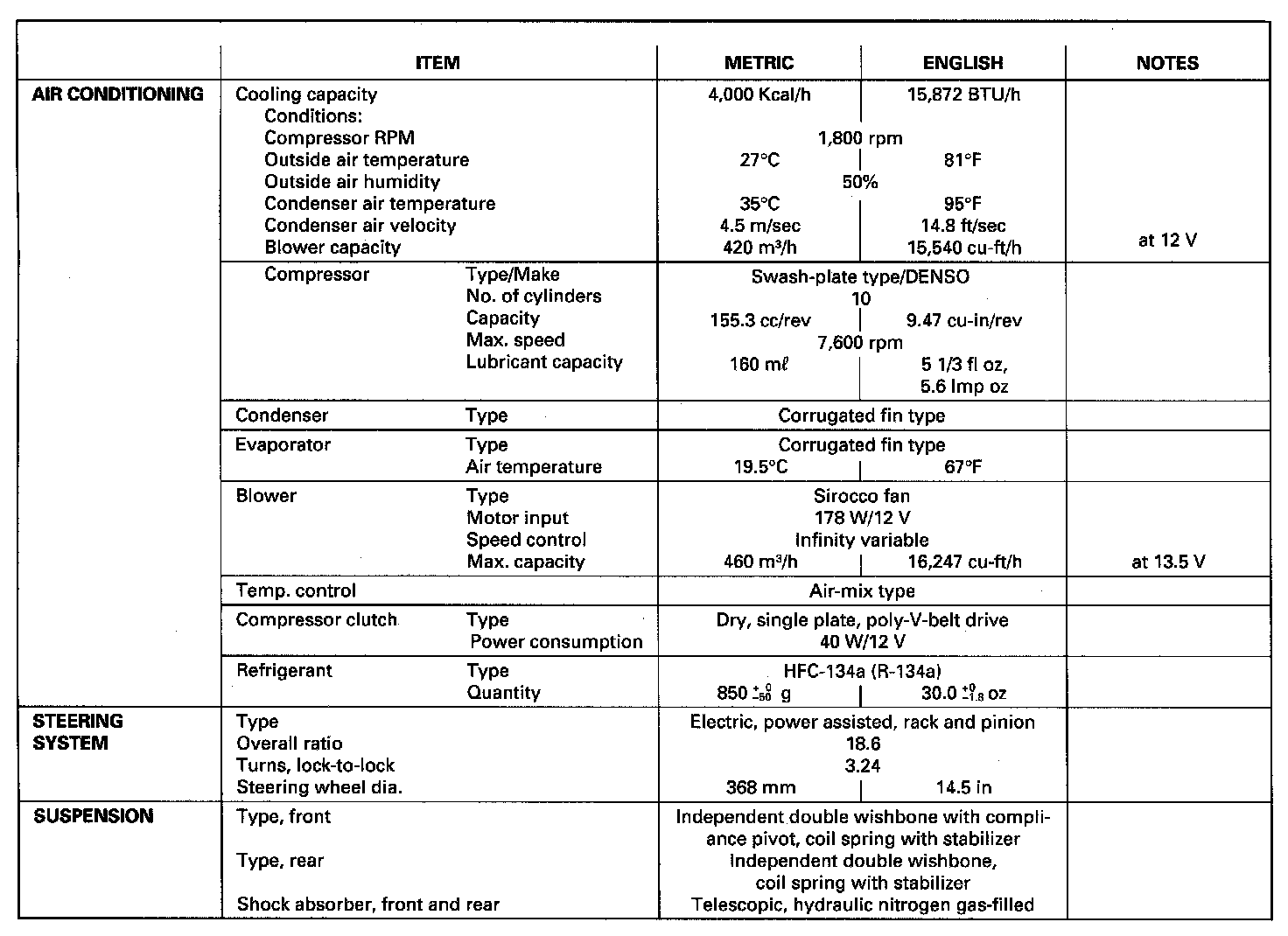

Design Specifications - Part 2:

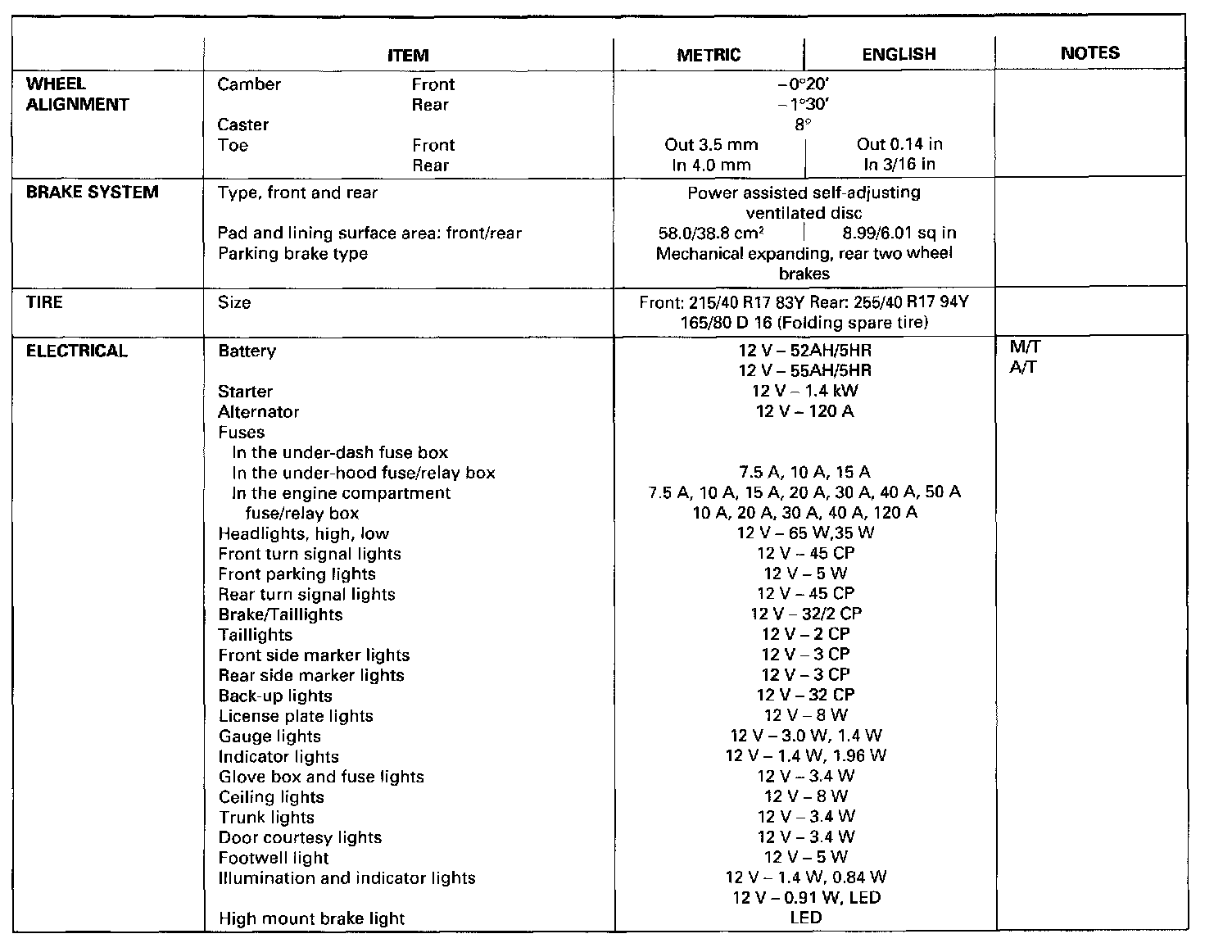

Design Specification - Part 3:
