Cruise Control Main Switch Test/Replacement

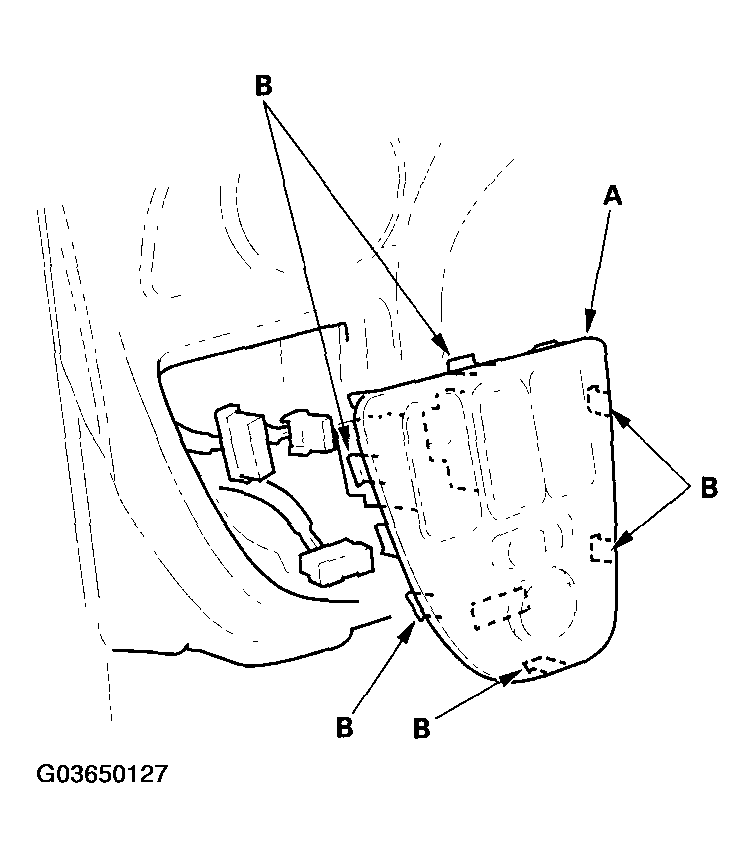

Gently pry up on the driver's switch panel (A) to release the hooks (B), then pull out the panel.

Fig 1: Prying Up On Driver's Switch Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

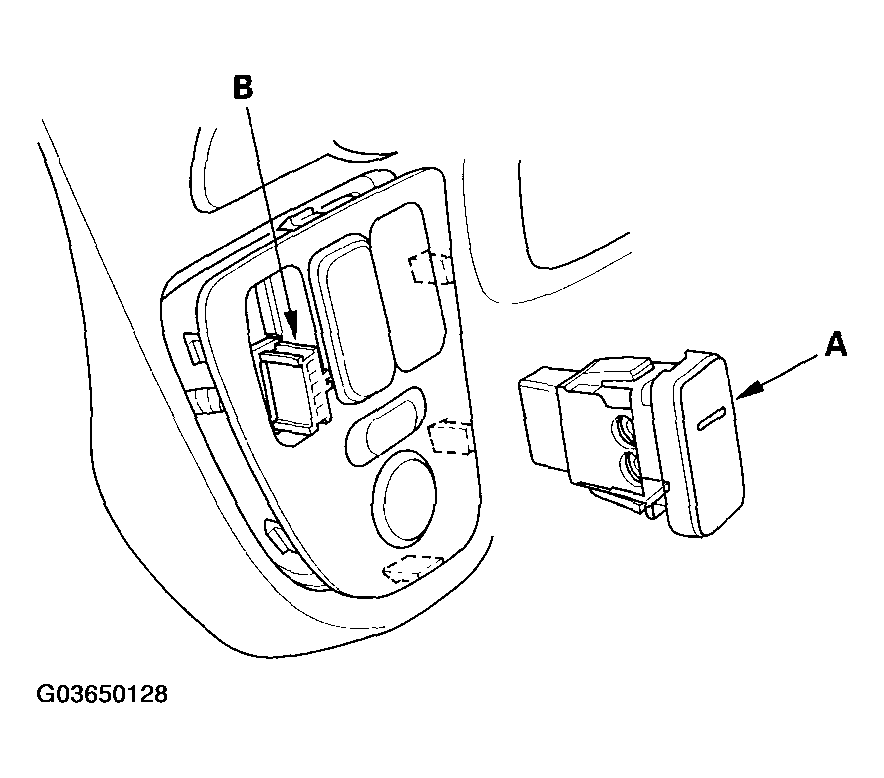

Release the clips, and push the cruise control main switch (A) out of the panel, then disconnect the 5P connector (B) from the cruise control main switch.

Fig 2: Disconnecting 5P Connector From Cruise Control Main Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

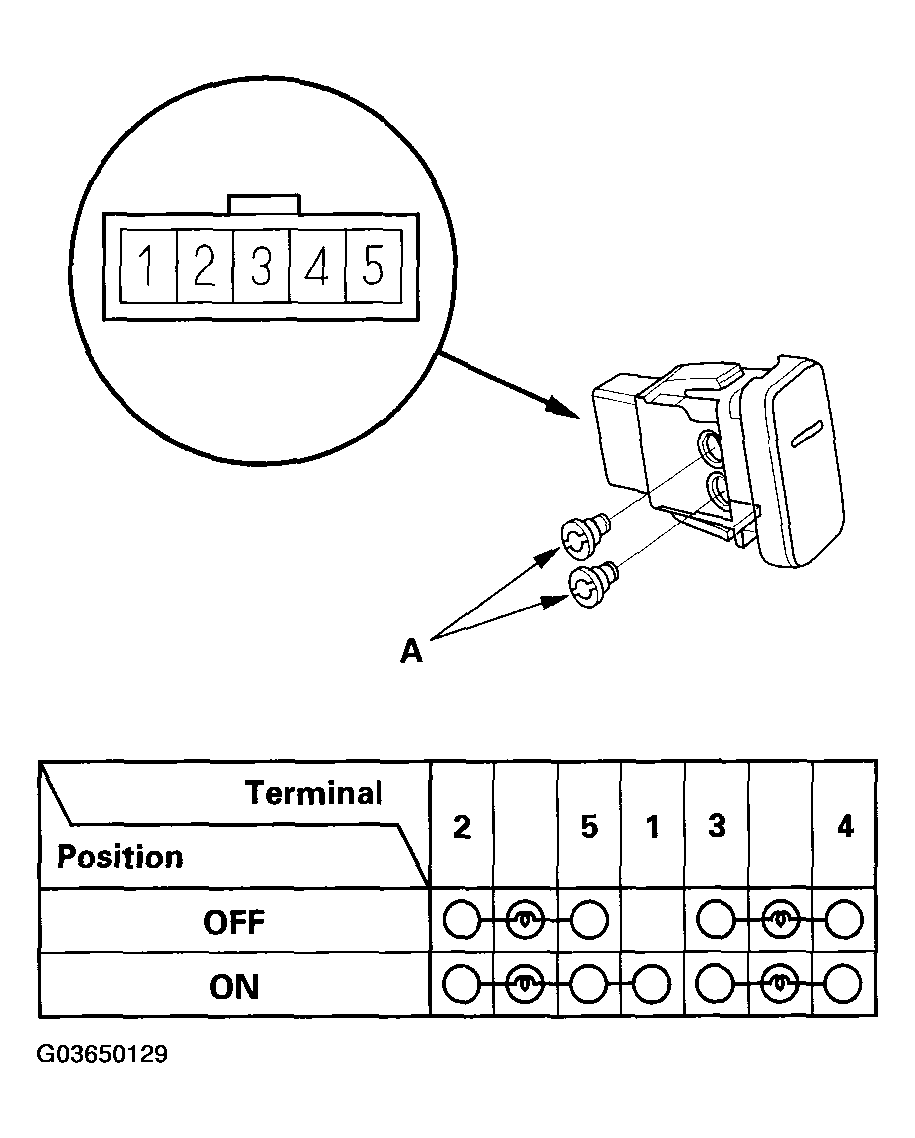

Check for continuity between the terminals in each switch position according to the table. If the continuity is not as specified, replace the illumination bulbs (A) or the switch.

Fig 3: Removing Illumination Bulbs Or Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
