Cruise Control Unit Input Test

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and precautions and procedures (see PRECAUTIONS AND PROCEDURES ), before doing repairs or service.

  1. Disconnect the 14P connector from the control unit.
  2. Inspect the connector and socket terminals to make sure they are all making good contact.
    • If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, go to step 3.

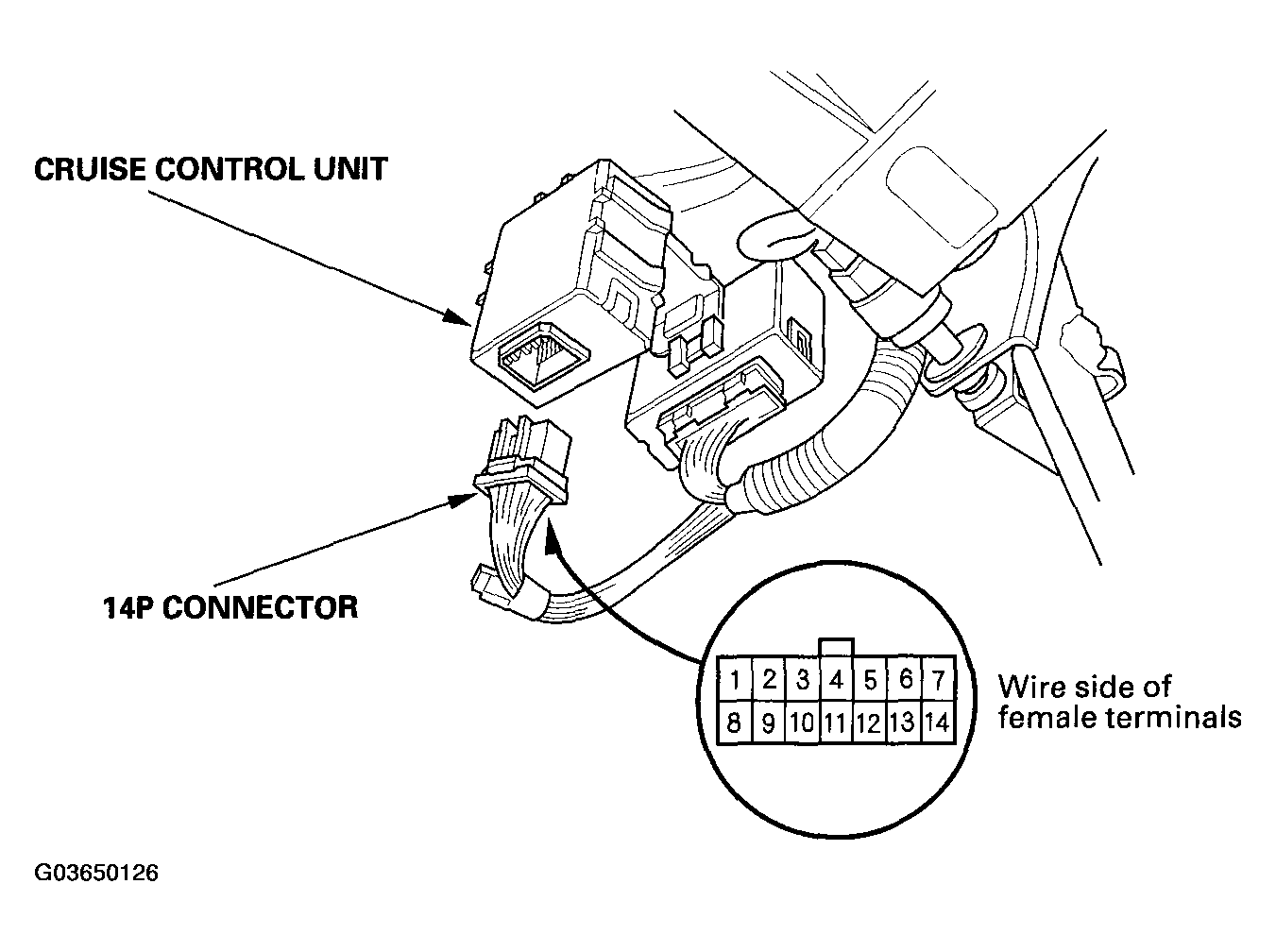

      Fig 1: Disconnecting 14P Connector From Control Unit
      G03650126Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. With the 14P connector disconnected, do these input tests.
    • If a test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, the cruise control unit may be faulty. Substitute a know-good cruise control unit and retest. If the system works properly, replace the cruise control unit.
      TEST CONDITION

      Cavity Wire Test condition Test: Desired result Possible cause if result is not obtained
      1 BRN/WHT Connect battery power Check the operation of the magnetic clutch: Clutch should click and output link should be locked.
      • Faulty actuator
      • Poor ground(G451)
      • An open in the wire
      • Short to ground
      2 BLU Ignition switch ON (II), cruise control main switch ON and brake pedal pressed, then released Check for voltage to ground: There should be 0 V with the pedal pressed and battery voltage with the pedal released.
      • Faulty brake pedal position switch
      • An open in the wire
      • Open in cruise control main switch
      • Blown No. 4 (10 A) fuse in the under-dash fuse/relay box
      3 BLK Under all conditions Check for continuity to ground: There should be continuity.
      • Poor ground(G401)
      • An open in the wire
      4 BLK/ORN Ignition switch ON (II) Check for voltage to ground: There should be battery voltage.
      • Blown No. 4 (10 A) fuse in the under-dash fuse/relay box
      • An open in the wire
      5 WHT/BLK Brake pedal pressed, then released Check for voltage to ground: There should be battery voltage with the pedal pressed, and 0 V with the pedal released.
      • Blown No. 7 (15 A) fuse in the underhood fuse/relay box
      • Faulty brake pedal position switch
      • An open in the wire
      6 GRY/RED Set/decel switch pressed Check for voltage to ground: There should be battery voltage.
      When testing terminal No. 6, there should be no voltage on terminal No. 7.
      • Blown No. 7 (15 A) fuse in the underhood fuse/relay box
      • Faulty horn relay
      • Faulty cruise control set/decel, resume/accel, cancel switch
      • Faulty cable reel
      • An open in the wire
      7 LT GRN/BLK Resume/accel switch pressed Check for voltage to ground: There should be battery voltage.
      When testing terminal No. 7, there should be no voltage on terminal No. 6.
      9 BRN Connect battery power to the BRN terminal and ground to the BRN/YEL terminal Check the operation of the actuator motor: You should be able to hear the motor.
      • Faulty actuator
      • An open in the wires
      • Poor ground (G452)
      11 BRN/YEL
      10 BLU/YEL Ignition switch ON (II) Attach to ground: Cruise control indicator in the gauge assembly should come on.
      • Blown No. 10 (7.5 A) fuse in the under-dash fuse/relay box
      • Faulty gauge assembly
      • An open in the wire
      12 BLU/WHT Ignition switch ON (II) and cruise control main switch ON; raise the front of the vehicle, and rotate one wheel slowly while holding the other wheel
      NOTE: This input test must be done with the UP connector reconnected.
      		 Check for voltage between the BLU/WHT and ground terminal: There should be 0-5 V or more repeatedly.
      • Faulty PCM [A/T)
      • Faulty VSS (M/T)
      • An open in the wire
      • Short to ground
      13 LT GRN Ignition switch ON (II) and cruise control main switch ON Check for voltage to ground: There should be battery voltage.
      • Blown No. 4 (10 A) fuse in the under-dash fuse/relay box
      • Faulty cruise control main switch
      • An open in the wire
      14 LT BLU A/T: Shift lever in D or D3
      M/T: Clutch pedal released      		 Check for continuity to ground: There should be continuity.
      NOTE: There should be no continuity when the clutch pedal is pressed or when the shift lever is in other positions.
      • Faulty transmission range switch
      • Faulty clutch pedal position switch
      • Poor ground (M/T: G4O2, A/T: G1O1)
      • An open in the wire
      8 BLU/ORN Reconnect the cruise control unit 14P connector, start the engine turn the cruise control main switch ON and drive the vehicle at speeds over 25 mph (40 km/h) with the cruise control set Check for voltage to ground: There should be about 1 V.
      • Faulty cruise control unit
      • Short to ground
      • An open in the wire
